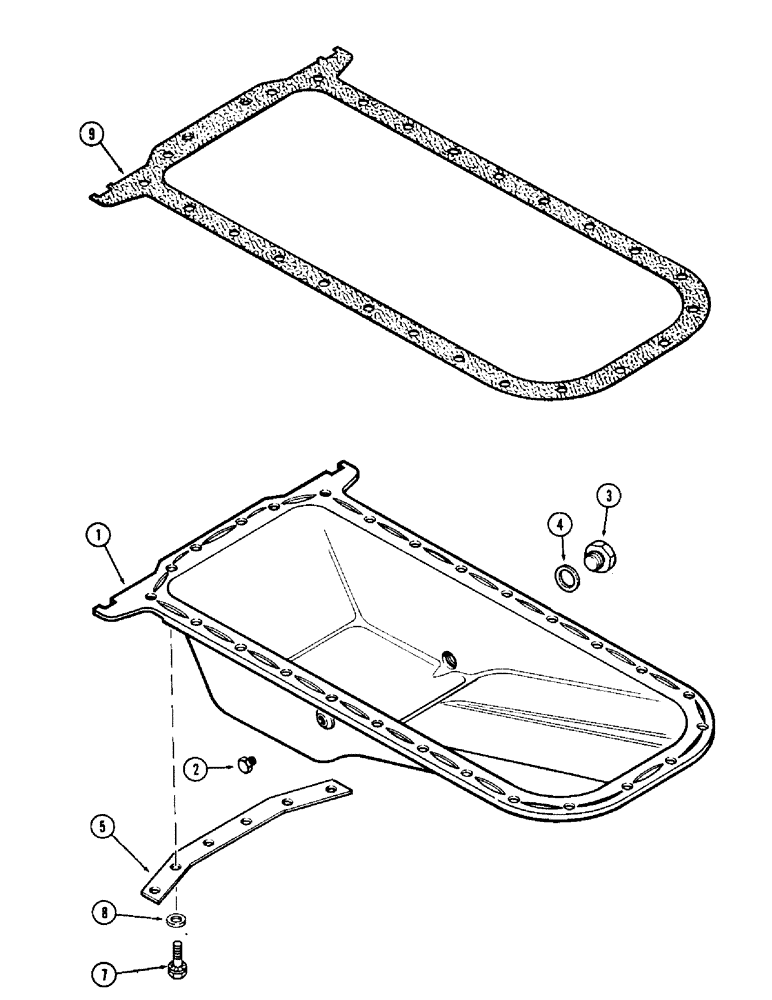

Запчасти Case 780 (070) - OIL PAN, (336BD) AND (336BDT) DIESEL ENGINES (02) - ENGINE

1

A62711

PAN

ASSEMBLY - oil (Replaces A59140), Includes: Ref. 2

1шт.

2

221-664

PLUG,Hex Hd, 1/2"-14

- 1/2" PT hex head

1шт.

3

A34826

PLUG,7/8" - 18 ORB

- drain, oil pan

1шт.

4

A27968

RING

- drain plug (Replaces A58933)

1шт.

5

A58932

STRAP

- reinforcing

1шт.

6

193-553

SCREW,SEMS, Hex Hd, 3/8"-16 x 7/8", G5

BOLT - 3/8 x 7/8" NC hex (Includes lockwasher)

24шт.

6

193-528

SCREW,SEMS, Hex Soc Hd, 3/8"-16 x 1 1/2"

BOLT - (3/8 x 1-1/2" NC hex)

2шт.

8

195-25

WASHER,3/8"

- 3/8 x 13/16 x 1/16"

32шт.

9

NSS

NOT SOLD SEPARAT

GASKET - oil pan (See Figure 72)

1шт.
