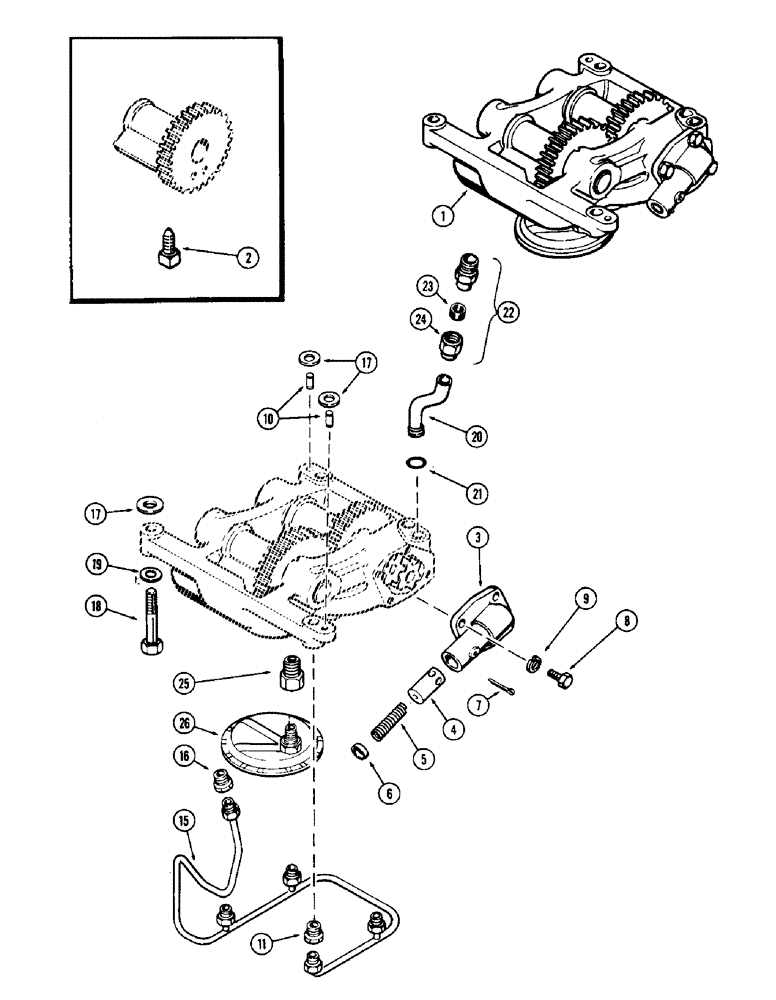

Запчасти Case 780 (068) - BALANCER AND OIL PUMP, (336BD) AND (336BDT) DIESEL ENG, PRIOR ENG SN 10151968 (02) - ENGINE

1

A66169

PUMP

BALANCER ASSEMBLY - engine (Replaces A65130 and A62000), Includes: Ref. 2 - 11

1шт.

2

181-675

SET SCREW,Sq Hd, 1/2"-13 x 1"

SCREW - set, 1/2 x 1-1/4" N.C. square head dog. point

4шт.

3

A153795

COVER

- oil pump (Replaces A61129)

1шт.

4

A65083

VALVE

- oil pump relief (Replaces A34992)

1шт.

5

A151960

SPRING

- relief valve (Replaces A59111)

1шт.

6

41-1011

PLUG,Cup, 11/16"

- relief valve, 11/16" cup type

1шт.

7

132-32

COTTER PIN,3/32" x 1 1/2"

PIN - cotter, 3/32 x 1/2"

1шт.

8

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

3шт.

8

13-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

- 5/16 x 1-3/8" N.C. hex

1шт.

9

92-5

LOCK WASHER,5/16"

4шт.

10

A8134

PIN

- dowel, balancer locating

2шт.

11

222-1012

HYD CONNECTOR,7/16"-24 Inv Fl x 1/8" NPT

CONNECTOR - manifold

4шт.

15

A62002

MANIFOLD

- balancer oil supply

1шт.

16

222-1012

HYD CONNECTOR,7/16"-24 Inv Fl x 1/8" NPT

CONNECTOR - manifold inlet

1шт.

17

G49401

SHIM,.005" Thk

Mounting (0.127 mm) .005" Thk

1шт.

17

G49402

SHIM,.010" Thk

Mounting (0.254 mm) .010" Thk

1шт.

18

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- 1/2 x 2-1/2" N.C. hex

2шт.

18

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

2шт.

19

A150672

WASHER

- 1/2 x 7/8 x 1/8"

4шт.

20

A61130

TUBE

-, Serial Range: pump-block

1шт.

21

A64436

O-RING,0.549" ID x 0.755" OD

- tube, 9/16 x 3/4 x 3/32" (14.29 x 19.05 x 2.38 mm)

1шт.

22

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTOR ASSEMBLY, Includes: Ref. 23 and 24

1шт.

23

222-106

SLEEVE,5/8" Tube

- for 5/8" Tube

1шт.

24

222-116

TUBE NUT,1"-18

NUT - for 5/8" tube

1шт.

25

A21235

FITTING

ADAPTER - oil, Serial Range: screen-balancer

1шт.

26

A22590

FILTER SCREEN

SCREEN ASSEMBLY - oil inlet

1шт.
