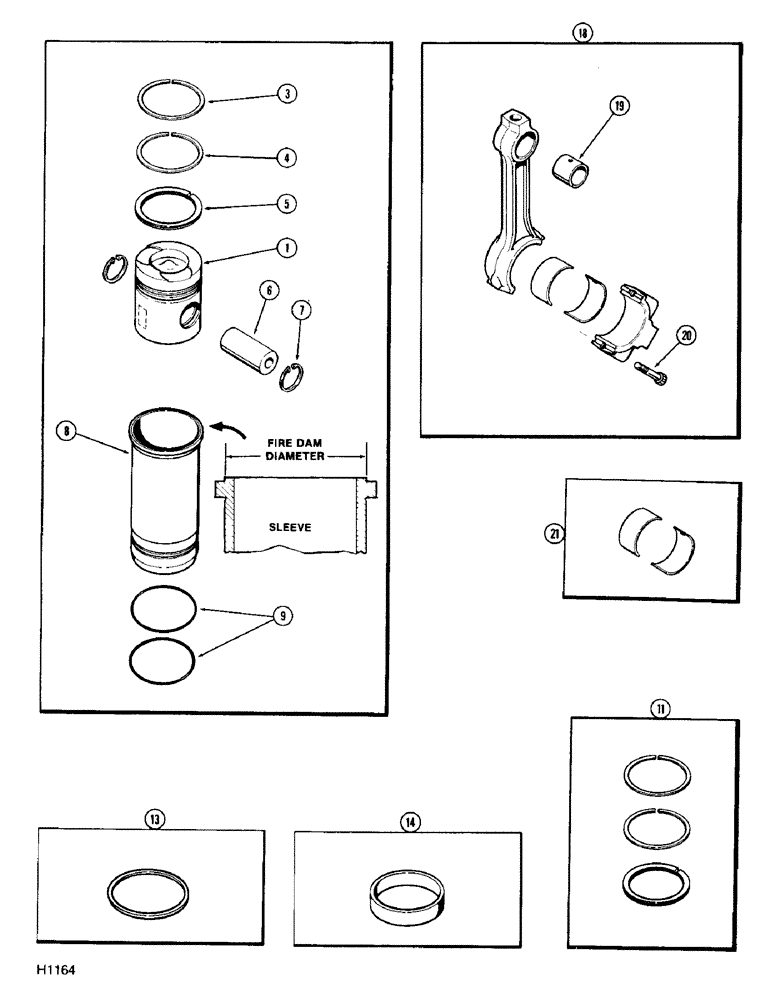

Запчасти Case 780 (060) - PISTONS AND SLEEVES, WITH 5.092" TO 5.097" FIRE DAM DIA., 336BDT TURCHARGED ENG (02) - ENGINE

1

A146697

PISTON

cylinder

4шт.

3

NSS

NOT SOLD SEPARAT

RING - compression, top groove (Order Ref. 11)

4шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, 2nd groove (Order Ref. 11)

4шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control, 3rd groove (Order Ref. 11)

4шт.

6

A58584

PIN,45.71mm OD x 98.17mm L

piston

4шт.

7

A44249

SNAP RING,1.812", Int, #181

piston pin retaining (Replaces A58585)

8шт.

8

A140216

SLEEVE CYLINDER

piston (iner) (Replaces A58570)

4шт.

9

A146616

O-RING,0.103" Thk x 4.487" ID, -157, Cl 7, 75 Duro

sleeve (Replaces A58571)

8шт.

11

A44054

RING

SET - piston re-ring (Set of 1)

4шт.

13

A148553

SHIM

sleeve, 0.010" (0.254 mm) (Repairs only)

1шт.

13

A148554

SHIM

sleeve, 0.005" (0.127 mm) (Repairs only)

1шт.

14

A150327

BUSHING,129.06mm ID x 133.49mm OD x 30.15mm L

sleeve (Repairs only)

1шт.

A150328

ADHESIVE

LOCTITE - tube (Not shown)

1шт.

15

A65032

ROD

ASSEMBLY - connecting (Replaces A58578), Includes: Ref. 16 and 17

4шт.

15

AR65032

REMAN-CONNECTING ROD

Remanufactured Connecting Rod

4шт.

15

AC65032

CORE-ROD CONNECTING

Core Connecting Rod Return Part Number

4шт.

16

A58580

BUSHING,45.3mm ID x 50.46mm OD x 45.47mm L

piston pin, connecting rod

1шт.

17

A65757

FLANGE BOLT,1/2" - 20 x 2.31"

connecting rod bearing cap (Replaces A62184)

2шт.

21

A41758

BEARING LINER

INSERT - rod (Set of 2) (Standard), connecting

4шт.

21

A41899

BEARING LINER

INSERT - rod bearing (Set of 2) 0.002" undersize (0.508 mm), connecting

4шт.

21

A41900

BEARING LINER

INSERT - rod bearing (Set of 2) 0.010" undersize (0.254 mm), connecting

4шт.

21

A41901

BEARING LINER

INSERT - rod bearing (Set of 2) 0.020" undersize (0.508 mm), connecting

4шт.

21

A41902

BEARING LINER

INSERT - rod bearing (Set of 2) 0.030" undersize (0.762 mm), connecting

4шт.
