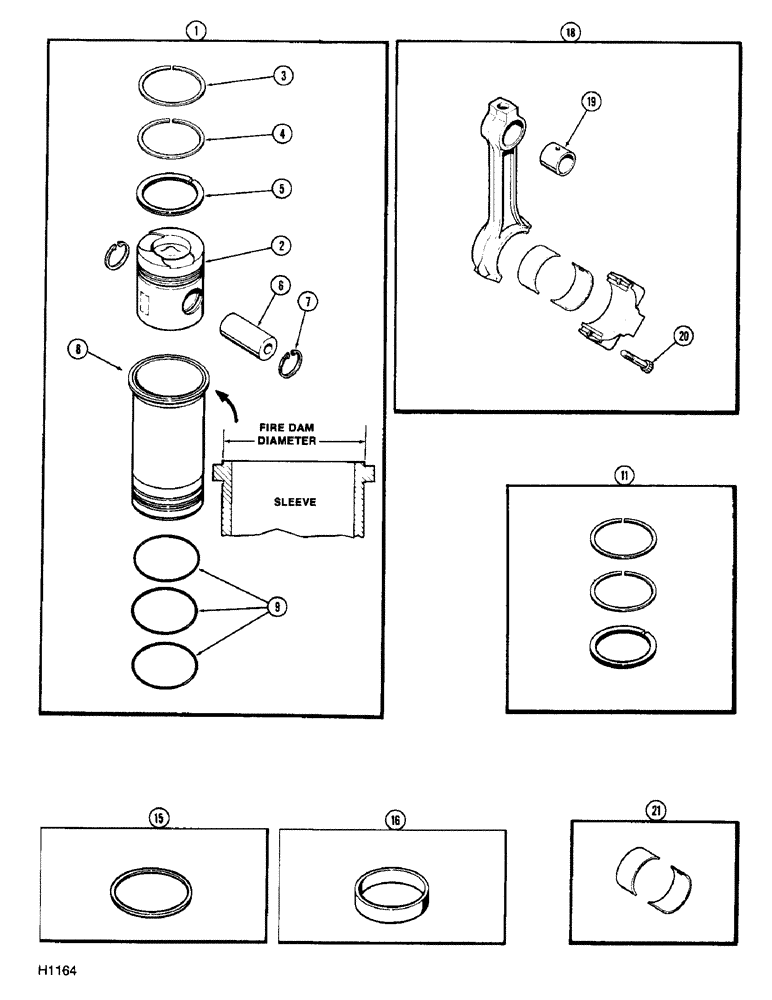

Запчасти Case 780 (058) - PISTONS AND SLEEVES, W/ 5.189" TO 5.194" FIRE DAM DIA., 336DT TURBOCHARGED ENG (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A152177
SET
PISTON AND SLEEVE ASSEMBLY - engine (Set of 2), Includes: Ref. 2 - 9
2шт.
2
A146697
PISTON
cylinder, 4-5/8" bore (107.47 mm)
2шт.
3
NSS
NOT SOLD SEPARAT
RING - compression, top groove (Order Ref. 11)
2шт.
4
NSS
NOT SOLD SEPARAT
RING - compression, second groove (Order Ref. 11)
2шт.
5
NSS
NOT SOLD SEPARAT
RING - oil control, third groove (Order Ref. 11)
2шт.
6
A58584
PIN,45.71mm OD x 98.17mm L
piston
2шт.
7
A44249
SNAP RING,1.812", Int, #181
piston pin
4шт.
8
A153638
SLEEVE CYLINDER
SLEEVE - cylinder (3 groove)
2шт.
NSS
NOT SOLD SEPARAT
SLEEVE - cylinder (2 groove) Order 3 groove sleeve A153638
2шт.
9
A144667
O-RING,4.734" ID x 5.012" OD x 0.0139"
sleeve
6шт.
11
A44054
RING
KIT - piston re-ring (Set of 1)
4шт.
15
A148553
SHIM
sleeve, 0.010" (0.254 mm) (Repairs only)
1шт.
15
A148554
SHIM
sleeve, 0.005" (0.127 mm) (Repairs only)
1шт.
16
A150327
BUSHING,129.06mm ID x 133.49mm OD x 30.15mm L
sleeve (Repairs only)
1шт.
A150328
ADHESIVE
LOCTITE - tube (Not shown)
1шт.
18
A65032
ROD
ASSEMBLY - connecting, Includes: Ref. 19 and 20
4шт.
18
AR65032
REMAN-CONNECTING ROD
Remanufactured Connecting Rod
4шт.
18
AC65032
CORE-ROD CONNECTING
Core Connecting Rod Return Part Number
4шт.
19
A58580
BUSHING,45.3mm ID x 50.46mm OD x 45.47mm L
piston pin, connecting rod
1шт.
20
A65757
FLANGE BOLT,1/2" - 20 x 2.31"
cap, connecting rod
2шт.
21
A41758
BEARING LINER
INSERT - rod (Set of 2) (Standard), connecting
4шт.
21
A41899
BEARING LINER
INSERT - rod bearing (Set of 2) 0.002" undersize (0.0508 mm), connecting
4шт.
21
A41900
BEARING LINER
INSERT - rod bearing (Set of 2) 0.010" undersize (0.254 mm), connecting
4шт.
21
A41901
BEARING LINER
INSERT - rod bearing (Set of 2) 0.020" undersize (0.508 mm), connecting
4шт.
21
A41902
BEARING LINER
INSERT - rod bearing (Set of 2) 0.030" undersize (0.762 mm), connecting
4шт.
Выбрано товаров: 25
