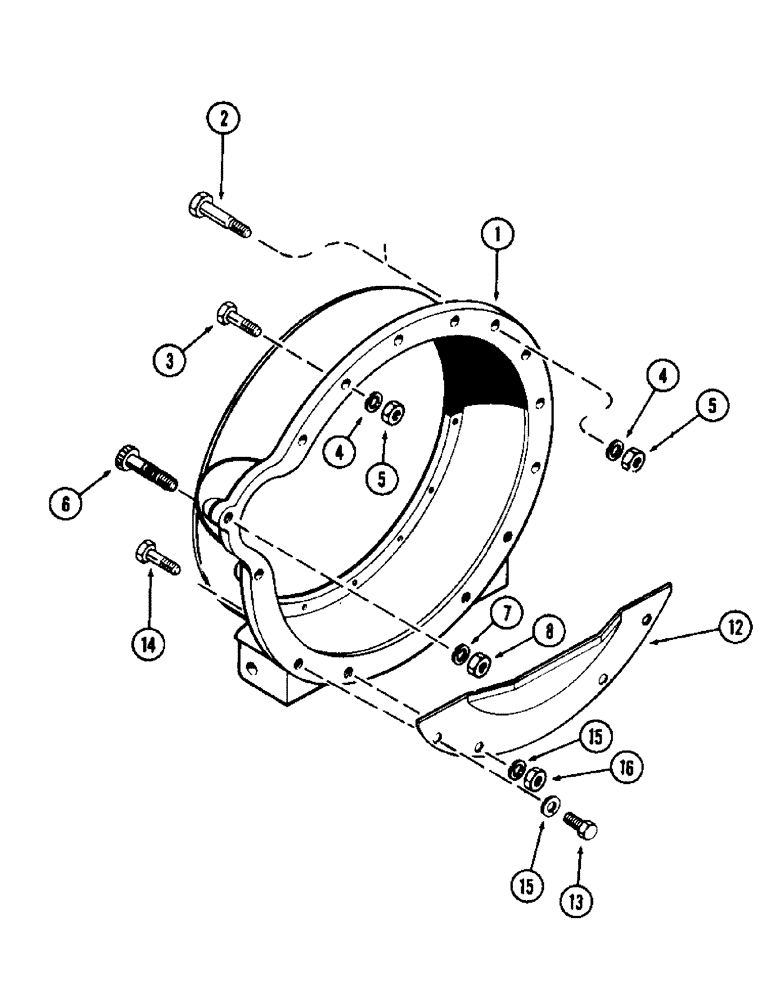

Запчасти Case 780 (056) - FLYWHEEL HOUSING, (336BD) AND (336BDT) DIESEL ENGINES (02) - ENGINE

1

A150268

HOUSING

- flywheel (Replaces A9397)

1шт.

2

A149764

STEP BOLT

BOLT - dowel (1/2 x 2-7/16" NC hex) ( replaced A149675 )

1шт.

2

A149674

BOLT

- dowel (1/2 x 3" NC hex)

1шт.

3

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

3шт.

3

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- 1/2 x 2-1/2" NC hex

3шт.

4

92-8

LOCK WASHER,1/2"

8шт.

5

25-108

NUT,1/2"-13, G5

- 1/2" NC hex

5шт.

6

166-138

12 PT SCREW,Flg, 3/4" - 10 x 3", Gr 8

- 3/4 x 3" NC 12 point head

2шт.

7

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

8

129-137

NUT,3/4"-10, G5

2шт.

12

A58931

GUARD

SHIELD - dust, flywheel

1шт.

13

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- 1/2 x 3/4" NC hex

2шт.

14

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

15

92-8

LOCK WASHER,1/2"

4шт.

16

25-108

NUT,1/2"-13, G5

- 1/2" NC hex

2шт.
