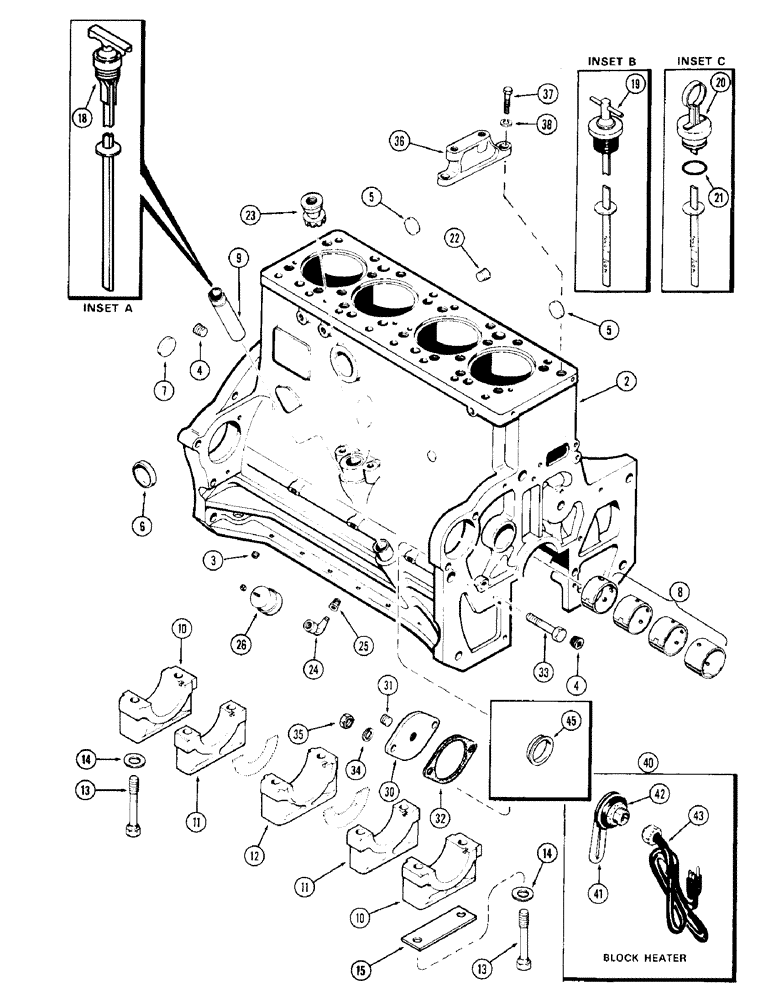

Запчасти Case 780 (050) - CYLINDER BLOCK, (336BD) NATURALLY ASPIRATED ENGINES (02) - ENGINE

A150869

SKELETON ENGINE

BLOCK ASSY - short (Replaces A43145) (Includes stripped block, camshaft, crankshaft and bearings, piston assy, connecting rods and bearings and timing gears), Includes: Ref. 2 - 15

1шт.

2

A150868

BLOCK ASSY.

stripped (Replaces A42004) (Casting no. A58502), Includes: Ref. 3 - 15

1шт.

3

221-1849

PLUG

1/8" PT hex socket head

2шт.

4

221-1843

PLUG

3/8" PT hex socket head

3шт.

5

A58568

PLUG,Cup, 1 3/8", Stainless

1-3/8" cup type

2шт.

6

A58569

PLUG,Cup, 2", Stainless

2" cup type

1шт.

7

A24361

PLUG

2-3/8" cup type

1шт.

8

A23577

KIT

BUSHING - camshaft

1шт.

9

A34540

TUBE

oil filler and dipstick

1шт.

10

A58562

CAP

main bearing, front and rear (Wide)

2шт.

11

A58563

CAP

main bearing, intermediate (Narrow)

2шт.

12

A58564

CAP

main bearing, thrust center (Wide)

1шт.

13

A66948

STEP BOLT

bearing caps (5/8 NC x 5")

10шт.

14

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

bearing cap bolts (5/8 x 1 x 3/16")

10шт.

15

A58859

SHIM,.005" Thk

Front brg. cap (0.127 mm) .005" Thk

4шт.

18

A138330

DIPSTICK

ASSEMBLY - (Turntite type with flat handle) (See inset A)

1шт.

19

A20739

GAUGE

DIPSTICK ASSEMBLY - (Turntite type with roll pin handle) (Order A138330) (See inset B)

1шт.

20

A34541

DIPSTICK

ASSEMBLY - (O-ring type) (See inset C) (Order A138330), Includes: Ref. 21

1шт.

21

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

3/4 x 1 x 1/8")

2шт.

22

221-845

PLUG,Hex Soc, 3/4"-14

(3/4" PT, hex socket head)

1шт.

23

A34266

DRIVE

ASSEMBLY - tachometer

1шт.

24

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street (male end) 90º, 1/8"-27, NPT

1шт.

25

221-52

BUSHING,Hex, 3/8" x 1/8" NPT

reducing (3/8" PT to 1/8" PT)

1шт.

26

A35031

SENDER UNIT

engine oil pressure

1шт.

30

A58891

COVER

auxiliary pump hole

1шт.

31

221-1843

PLUG

cover (3/8" PT, hex socket head)

1шт.

32

A58617

GASKET

cover

1шт.

33

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- cover (3/8 x 3-1/2" NC hex)

2шт.

34

92-6

LOCK WASHER,3/8"

2шт.

35

25-106

NUT,3/8"-16, G5

38" NC hex

2шт.

36

A61155

BRACKET

compressor mounting

1шт.

37

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

Bracket Hex, 1/2"-13 x 1 3/8", G5, Full Thd

2шт.

38

92-8

LOCK WASHER,1/2"

1шт.

40

A155436

RESISTOR

HEATER ASSEMBLY - block, Includes: Ref. 41 - 43

1шт.

41

NSS

NOT SOLD SEPARAT

ELEMENT ASSEMBLY - heater

1шт.

42

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

1-3/4 x 2 x 1/8" (44.45 x 50.3 x 3.17 mm), block heater

1шт.

43

A44813

CABLE EXTENSION

CORD ASSEMBLY, block heater

1шт.

A44006

SLEEVE

KIT - block heater adapter, Includes: Ref. 45

1шт.

45

NSS

NOT SOLD SEPARAT

SLEEVE - (For 2-1/16" diameter block heater hole) (52.39 mm)

1шт.

45

NSS

NOT SOLD SEPARAT

SLEEVE - (For 2-1/8" diameter block heater hole) (53.97 mm)

1шт.
