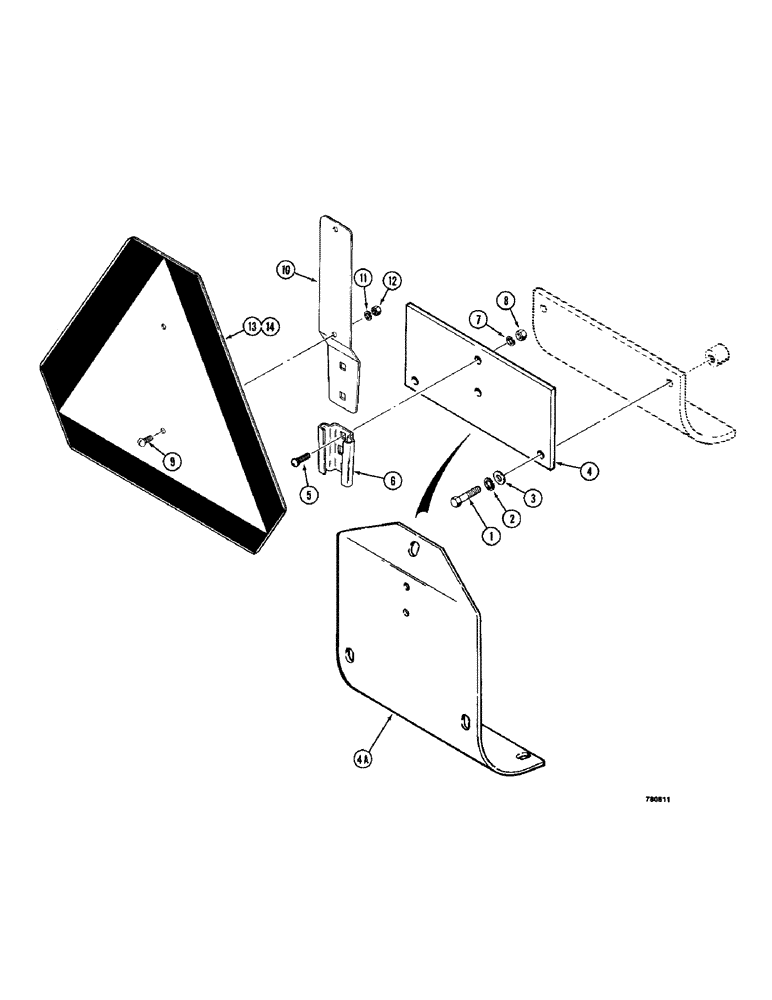

Запчасти Case 780 (606) - SLOW MOVING VEHICLE EMBLEM (09) - CHASSIS/ATTACHMENTS

1

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

2

92-6

LOCK WASHER,3/8"

2шт.

3

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

4

L48896

BRACKET

- socket mounting, at backhoe hose guard, required with L46358 hose guard only, see Ref. 20 on Figure 304

1шт.

4a

D76519

LARGE PLATE

BRACKET - hose guard and emblem mount, models without extendable dipper

1шт.

4a

D79671

LARGE PLATE

BRACKET - hose guard and emblem mount, models with extendable dipper

1шт.

5

111-243

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

2шт.

6

A60977

BRACKET

SOCKET - emblem mounting

1шт.

7

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

8

9635082

NUT,5/16" - 18, Gr 5

2шт.

A59450

WARNING SIGN

BRACKET AND EMBLEM ASSEMBLY - SMV, Includes: Ref. 9 - 14

1шт.

9

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- machine, pan head, #10 - 24 NC x 1/2"

2шт.

10

NSS

NOT SOLD SEPARAT

BRACKET - emblem mounting

1шт.

11

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

12

129-17

NUT,Hex, #10 - 24

NUT - hex, #10 - 24 NC

2шт.

13

NSS

NOT SOLD SEPARAT

PLATE - slow moving vehicle emblem

1шт.

14

321-1751

DECAL

- slow moving vehicle emblem

1шт.
