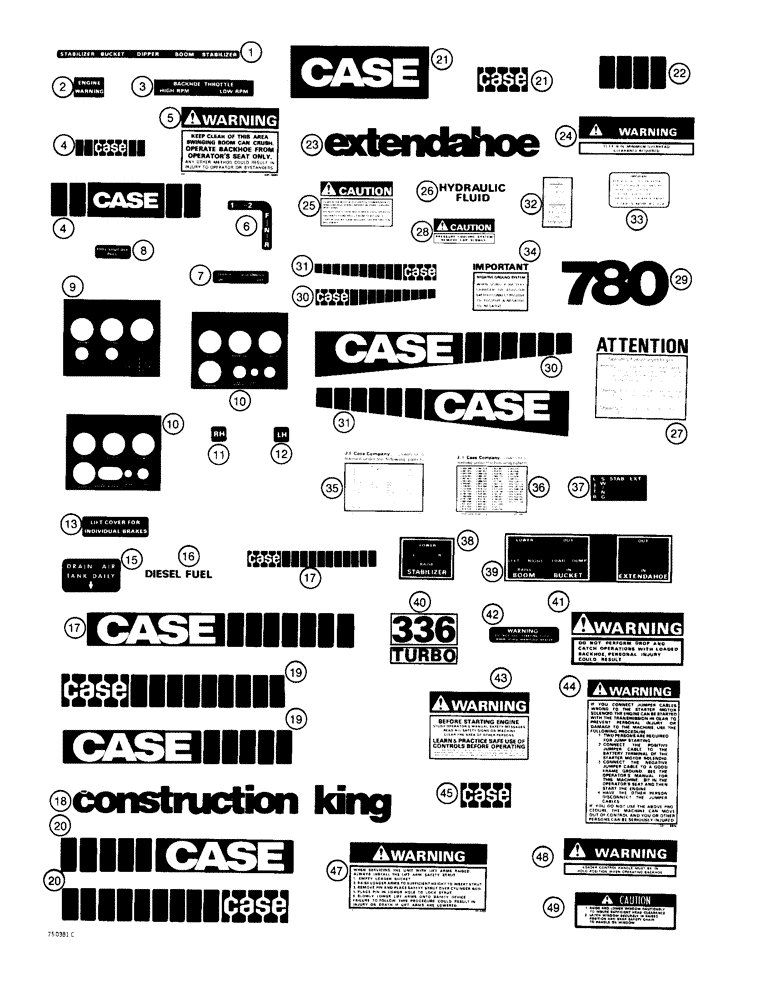

Запчасти Case 780 (604) - DECALS, LATE PRODUCTION (09) - CHASSIS/ATTACHMENTS

D86619

KIT

DECAL KIT - complete, used on tractor SN. 5502201 and after, Includes: Ref. 1 - 31

1шт.

D70649

KIT

DECAL KIT - complete, used before tractor SN. 5502201, Includes: Ref. 1 - 31

1шт.

1

321-2789

DECAL - backhoe, individual lever control

1шт.

2

321-1761

DECAL

- engine warning

1шт.

3

321-2790

DECAL - backhoe throttle

1шт.

4

321-3149

DECAL

- "Case", backhoe console

1шт.

4

321-5360

DECAL

- "Case", backhoe console - used with kit D86619 only

1шт.

5

321-4481

DECAL

- warning, swing pedals

2шт.

6

321-2124

DECAL

- shift pattern

1шт.

7

321-2785

DECAL

- clutch cutout

1шт.

8

321-1978

DECAL - fuel shut off

1шт.

9

321-1764

DECAL - instrument panel, right-hand

1шт.

10

321-1765

DECAL - instrument panel, left-hand

1шт.

11

321-1755

DECAL - right-hand brake control

1шт.

12

321-1756

DECAL - left-hand brake control

1шт.

13

321-1757

DECAL - individual brakes

1шт.

14

RESERVED

1шт.

15

321-1077

DECAL

- air drain

1шт.

16

321-230

DECAL

- diesel fuel

1шт.

17

321-3144

DECAL

- "Case", cab

1шт.

17

321-5123

DECAL - "Case", cab, used with kit D86619 only

1шт.

18

321-3069

DECAL

- Construction King, cab

2шт.

19

321-5293

DECAL

- "Case", dipper, left-hand

1шт.

19

321-5120

DECAL

- "Case", left-hand used with kit D86619 only

1шт.

20

321-5292

DECAL

- "Case", right-hand

1шт.

20

321-5121

DECAL

- "Case", right-hand, used with kit D86619 only

1шт.

21

321-5360

DECAL

- "Case", extendahoe

2шт.

22

321-3120

DECAL

- tread, extendahoe

2шт.

23

321-3139

DECAL

- extendahoe

2шт.

24

321-3052

DECAL

- warning, overhead clearance

1шт.

25

321-3051

DECAL

- warning, elevated components

1шт.

26

321-229

DECAL

- hydraulic fluid

1шт.

27

321-2605

DECAL

- engine operating procedure

1шт.

28

321-3061

DECAL

- caution, cooling system

1шт.

29

321-3145

DECAL

- 780, 6" (152 mm) high

2шт.

30

321-3142

DECAL

- "Case", 6" (152 mm) high, left-hand

1шт.

30

321-5125

DECAL

- "Case", 6" (152 mm) high, left-hand, used with kit D86619 only

1шт.

31

321-3143

DECAL

- "Case", 6" (152 mm) high, right-hand

1шт.

31

321-5124

DECAL - "Case", 6" (152 mm) high, right-hand used with kit D86619 only

1шт.

32

321-1061

DECAL

- alternator instruction

1шт.

33

321-2101

DECAL

- oil filter instruction

1шт.

34

321-3707

DECAL

- negative ground

1шт.

35

321-663

DECAL

- equipment patent

1шт.

36

321-246

DECAL

- tractor patent

1шт.

Decal is no longer used.

1шт.

321-246 tractor patent decal - This

1шт.

37

321-2791

DECAL - optional hand swing

1шт.

38

321-2792

DECAL

- stabilizer control

1шт.

39

321-2793

DECAL

- dual lever control

1шт.

40

321-2389

DECAL

- "336 Turbo"

2шт.

41

321-3230

DECAL

- warning, high pressure relief valve

1шт.

42

321-1012

DECAL

- cold weather start

1шт.

43

321-3705

DECAL

- safety warning

1шт.

44

321-5974

DECAL

- warning, jump start

1шт.

45

321-4739

EMBLEM

DECAL - medallion

1шт.

46

131-431

PUSH-ON NUT,Self, Threading, 1/4"

PALNUT - medallion, not shown

2шт.

47

321-6413

DECAL

- warning, safety strut

1шт.

48

321-2081

DECAL

- warning, backhoe operation

1шт.

49

321-3590

DECAL

- caution, rear window

1шт.
