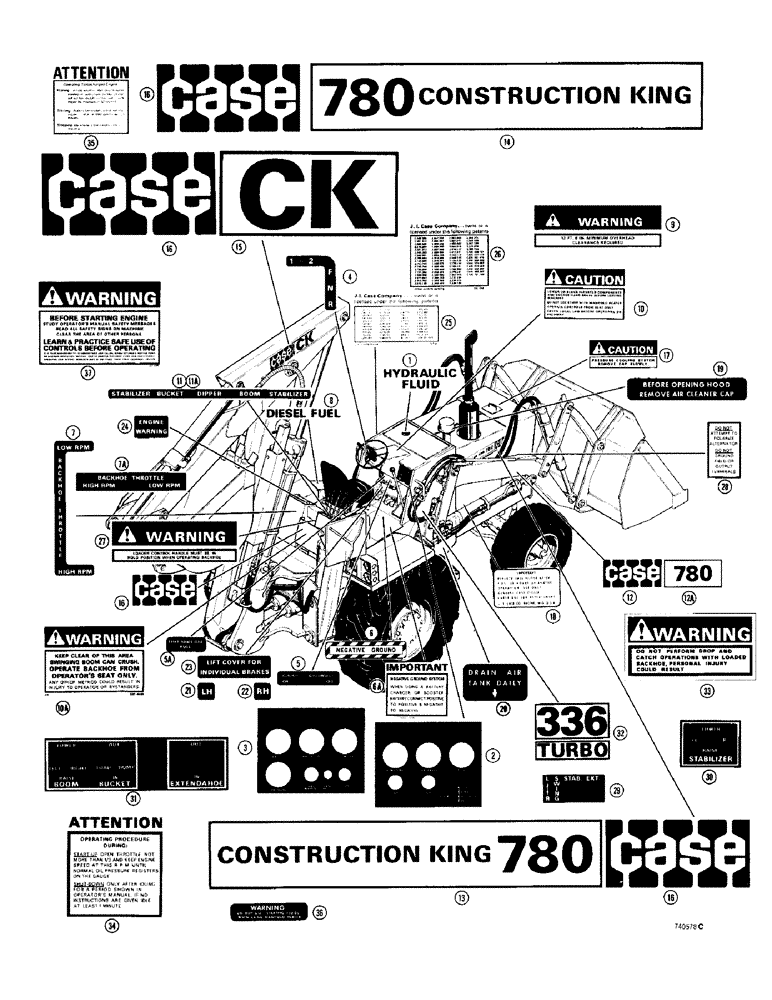

Запчасти Case 780 (600) - DECALS, EARLY PRODUCTION (09) - CHASSIS/ATTACHMENTS

D52928

KIT

DECAL KIT - complete, 780CK, Includes: Ref. 1 - 37

1шт.

1

321-229

DECAL

- hydraulic fluid

1шт.

2

321-1764

DECAL - instrument panel, R.H.

1шт.

3

321-1765

DECAL - instrument panel, L.H.

1шт.

4

321-2124

DECAL

- transmission, shift pattern

1шт.

5

321-2785

DECAL

- clutch disconnect

1шт.

5a

321-1978

DECAL - fuel shutoff

1шт.

6

321-1285

DECAL

- negative ground

1шт.

6a

321-3707

DECAL

- instruction, negative ground

2шт.

7

321-1759

DECAL - backhoe throttle, used on units with twin backhoe control towers

1шт.

7a

321-2790

DECAL - backhoe throttle, used on units with single backhoe control tower

1шт.

8

321-230

DECAL

- diesel fuel

1шт.

9

321-3052

DECAL

- warning, overhead clearance

1шт.

10

321-3051

DECAL

- warning, elevated components

1шт.

10a

321-4481

DECAL

- warning, operation from seat

1шт.

11

321-1760

DECAL - backhoe console, used on units with twin backhoe control towers

1шт.

11a

321-2789

DECAL - backhoe console, used on units with single backhoe control tower

1шт.

12

321-1573

DECAL

- "Case", at loader lift frame, 5" (127 mm) high

2шт.

12a

321-2536

DECAL

- "780", at loader lift frame, 5" (127 mm) high

2шт.

13

321-1558

DECAL

- Construction King 780, R.H., at hood

1шт.

14

321-1559

DECAL

- 780 Construction King, L.H., at hood

1шт.

15

321-1482

DECAL

- CK, at dipper sides

2шт.

16

321-1440

DECAL

- Case, at dipper sides, hood and backhoe control console, when stock is exhausted, supply 321-1572 for service

4шт.

16

321-1572

DECAL

- Case, at dipper sides, hood and backhoe control console, non-reflective type

4шт.

17

321-3061

DECAL

- cooling system, at radiator cap

1шт.

18

321-2101

DECAL

- instruction, engine oil filter

1шт.

19

321-1006

DECAL

- hood raising instructions, at air cleaner cap

1шт.

20

321-1077

DECAL

- air tank drain

1шт.

21

321-1756

DECAL - L.H. brake control

1шт.

22

321-1755

DECAL - R.H. brake control

1шт.

23

321-1757

DECAL - individual brake information

1шт.

24

321-1761

DECAL

- engine warning light

1шт.

25

321-663

DECAL

- patent

1шт.

26

321-246

DECAL

- patent

1шт.

27

321-2081

DECAL

- warning, backhoe operation

1шт.

28

321-1061

DECAL

- instruction, alternator

1шт.

29

321-2791

DECAL - optional control, hand swing

1шт.

30

321-2792

DECAL

- stabilizer control

1шт.

31

321-2793

DECAL

- dual lever

1шт.

32

321-2389

DECAL

- "336 Turbo"

2шт.

33

321-3230

DECAL

- warning, used with high pressure relief valve kit

1шт.

34

321-1981

DECAL

- proper start up and shut down procedure, when stock is exhausted, order 321-2605 decal for service

1шт.

35

321-2605

DECAL

- proper start up and shut down procedure

1шт.

36

321-1012

DECAL

- cold weather start

1шт.

37

321-3705

DECAL

- safety warning

1шт.
