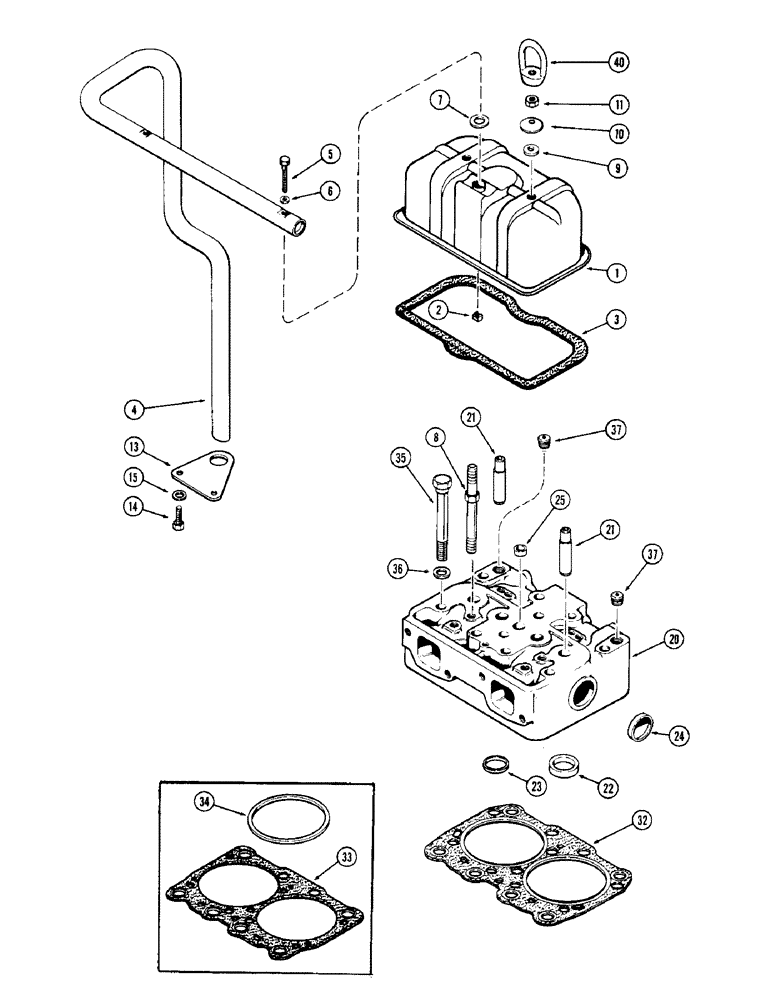

Запчасти Case 780 (040) - CYLINDER HEAD AND COVER, 336BD AND 336BDT DIESEL ENGINES (02) - ENGINE

1

A58929

COVER

COVER ASSEMBLY - cylinder head, Includes: Ref. 2

2шт.

2

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - 1/4" NC Tinnerman

1шт.

3

A65734

CYLINDER HEAD GASKET

GASKET - cover (Replaces A58928)

2шт.

4

A58733

TUBE

TUBE - breather

1шт.

5

13-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

BOLT, Hex, 1/4"-20 x 2 1/2", G5

2шт.

6

A34133

GASKET

GASKET - tube, upper

2шт.

7

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

GASKET - tube, lower

2шт.

8

A67121

STUD

STUD - cover (7/16" NC x 6")

4шт.

9

A23684

GASKET

GASKET - cover stud

4шт.

10

A23683

WASHER

WASHER - dished, cover stud

4шт.

11

25-107

NUT,7/16"-14, G5

NUT - 7/16" NC hex

4шт.

13

A58734

BRACKET

BRACKET - breather tube

1шт.

14

193-528

SCREW,SEMS, Hex Soc Hd, 3/8"-16 x 1 1/2"

BOLT - 3/8 x 1-1/2" NC hex

2шт.

15

195-25

WASHER,3/8"

WASHER - 7/16 x 13/16 x 1/16"

8шт.

20

A66709

HEAD

HEAD ASSEMBLY - (Replaces A58618 and A60558), Includes: Ref. 21 - 25

2шт.

20

AR66686

REMAN-CYLINDER HEAD

Remanufactured Cylinder Head

2шт.

20

AC66686

CORE-CYLINDER HEAD

Return Number

2шт.

21

A41783

GUIDE

GUIDE intake and exhaust valves

4шт.

22

A58619

INSERT

INSERT - exhaust valve seat

2шт.

23

A60557

INSERT

INSERT - intake valve seat

2шт.

24

A34124

PLUG,Cup, 1 5/8", Stainless

PLUG - 1-5/8" (41.27 mm) cup type

2шт.

25

A58620

PLUG,Cup, 3/4", Stainless

PLUG - 3/4" (19.1 mm) cup type

3шт.

32

REF

INSTRUCTION

GASKET - cylinder head, with fire rings (Engine serial no. 2511310 and after) (See Figure 72)

2шт.

33

NSS

NOT SOLD SEPARAT

GASKET - cylinder head (See Ref. 32) (Prior to engine serial no. 2511310)

2шт.

34

A58622

RING

RING - fire (Standard) (Plain) (Used with Ref. 33) (Prior to engine serial no. 2511310)

4шт.

34

NLS

NO LONGER SERVICED

RING - fire (Oversize) (With blue stripe) (Used with Ref. 33) (Prior to engine serial no. 2511310)

4шт.

35

A62732

STEP BOLT

BOLT - 5/8 x 5-5/8" NC hex (Replaces A58630)

20шт.

36

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - 5/8 x 1 x 3/16"

20шт.

37

221-843

PLUG,Hex Soc, 3/8"-18

PLUG - 3/8" PT hex socket head

4шт.

40

A60567

EYE

EYE - engine lifting

2шт.
