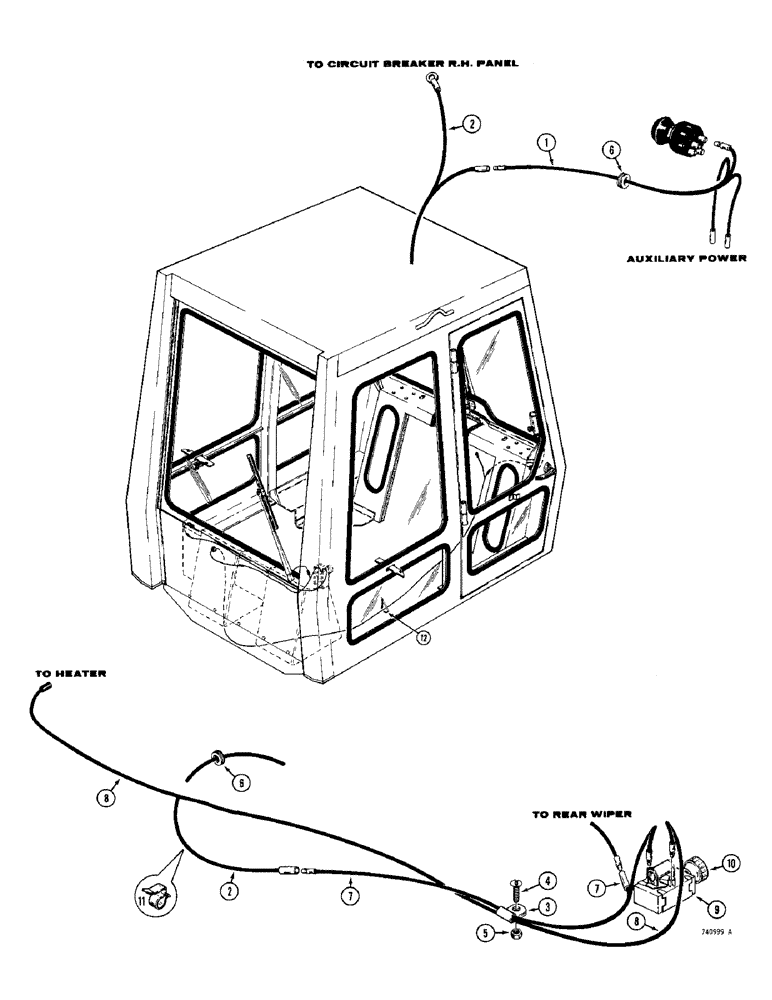

Запчасти Case 780 (594) - D54735 AND D53944 CAB WIRING, BOTTOM MOUNTED WINDSHIELD WIPERS (09) - CHASSIS/ATTACHMENTS

1

D54948

WIRE - circuit breaker to windshield wipers, front section 23" (584 mm) long

1шт.

2

D54949

WIRE - circuit breaker to windshield wipers, rear secton 125" (3175 mm) long

1шт.

3

L18299

CLAMP

- windshield wiper wire

2шт.

4

173-205

X

SCREW - machine, #10 - 24 NC x 5/8"

2шт.

5

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

2шт.

6

D37935

GROMMET - rear console and front cab panel 5/16" ID x 3/4" Groove Dia

2шт.

7

D55005

WIRE - wiring harness to heater switch

1шт.

8

D55004

WIRE - jumper, heater, Serial Range: switch-heater

1шт.

9

A12898

SWITCH

- heater

1шт.

10

D53932

KNOB - switch

1шт.

11

F43611

CLIP

- cab wiring

1шт.

12

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP, CABLE, Wiring

3шт.
