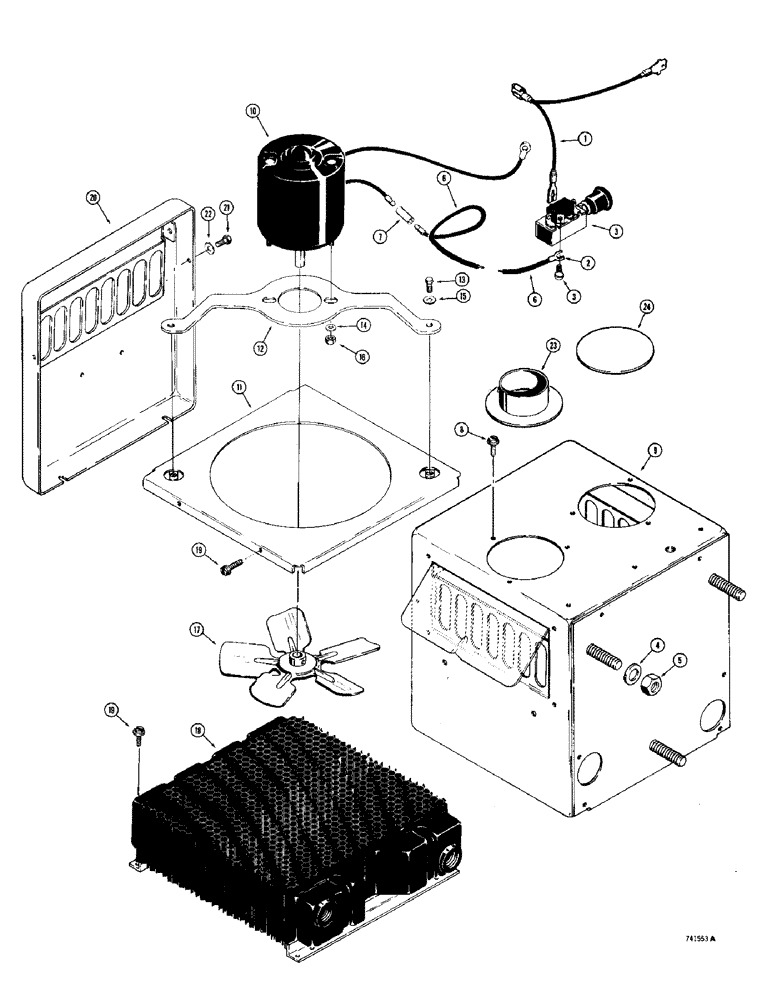

Запчасти Case 780 (592) - L33826 CAB HEATER (09) - CHASSIS/ATTACHMENTS

1

D63712

WIRE - harness to heater switch

1шт.

2

223-70

SPADE TERMINAL,18 - 20

TERMINAL - spade type, starting cable

1шт.

3

L33827

SWITCH

- heater, includes hardware and knob

1шт.

4

195-103

WASHER,5/16"

- flat, plated 5/16"

3шт.

5

129-122

NUT,5/16"-24, G5

Heater mounting 5/16"-24, G5

1шт.

L33826

HEATER ASSY.

HEATER ASSEMBLY - cab, Includes: Ref. 6 - 24

1шт.

6

L33835

LEAD - wire, at heater

1шт.

7

T42581

CONNECTOR - lead wire

1шт.

8

L33838

SELF-TAP SCREW,#8 - 15 x 1/2"

- special, defroster outlet cover mounting

6шт.

9

L33828

SHELL

HOUSING - heater

1шт.

10

L33829

MOTOR HOUSING

MOTOR - heater, 24 volt

1шт.

11

L33830

PLATE

- shroud

1шт.

12

L33831

BRACKET

- motor

1шт.

13

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

14

195-510

WASHER,#8

- flat, , zinc plated #8

2шт.

15

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER - lock internal, external, 1/4"

2шт.

16

129-16

NUT,#8-32

2шт.

17

L33832

FAN

- heater

1шт.

18

D77493

HEATER

CORE - heater

1шт.

19

L33838

SELF-TAP SCREW,#8 - 15 x 1/2"

- special

8шт.

20

L33834

COVER

- heater access

1шт.

21

L33838

SELF-TAP SCREW,#8 - 15 x 1/2"

- special, cover mounting

2шт.

22

493-11017

LOCK WASHER,Ext-Int Tooth, #8

Ext-Int Tooth, #8

2шт.

23

L33837

COLLAR

- defroster hose

2шт.

24

L50606

COVER

- defroster outlet

1шт.
