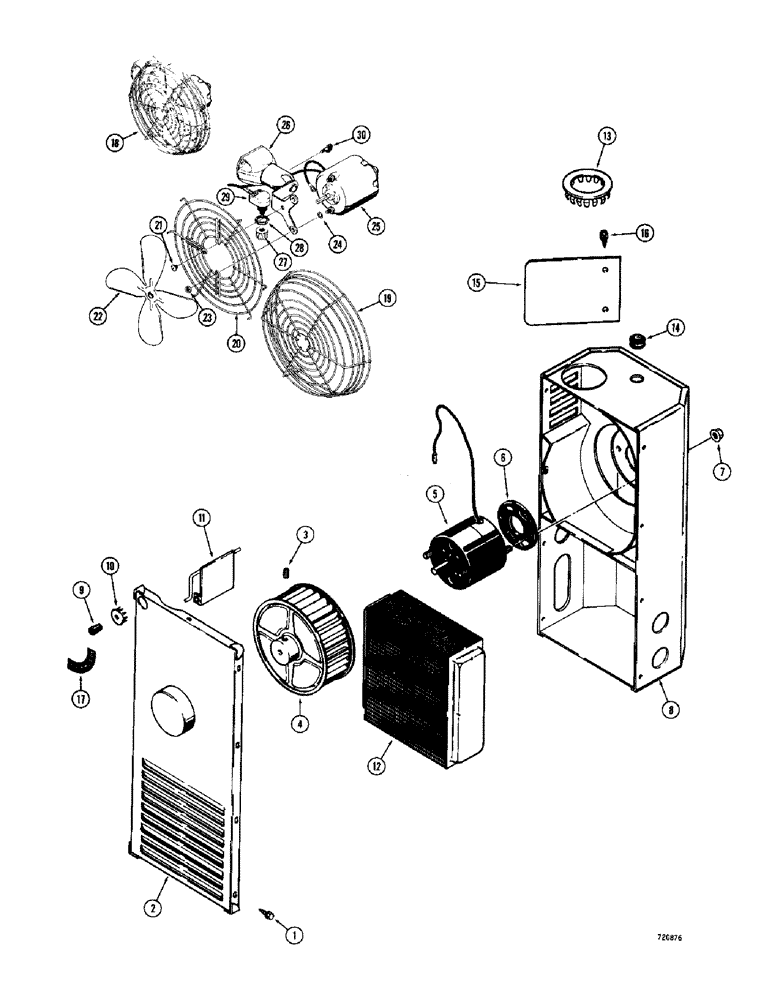

Запчасти Case 780 (590) - L16339 CAB HEATER, L48971 DEFROSTER FAN (09) - CHASSIS/ATTACHMENTS

L16339

HEATER - cab

1шт.

1

187-328

SCREW - machine, pan head, #10 - 24 NC x 3/8", Includes: Ref. 2 - 17

11шт.

2

NSS

NOT SOLD SEPARAT

COVER - heater

1шт.

L32697

BLOWER WHEEL ASSEMBLY - heater, Includes: Ref. 3 and 4

1шт.

3

84-85

SET SCREW - hex, socket headless, 1/2" - 20 NF x 5/16"

1шт.

4

NSS

NOT SOLD SEPARAT

BLOWER WHEEL - heater

1шт.

5

A18348

MOTOR - heater, 24 volt

1шт.

6

L32699

SHIM

- mounting, motor

1шт.

7

193-1000

NUT,Keps, w/LW,#10-32

- hex, external tooth lock, #10 - 32 NF

2шт.

8

NSS

NOT SOLD SEPARAT

HOUSING - heater

1шт.

9

F22439

CAP - lever, damper

1шт.

10

A27338

GROMMET

- damper lever

1шт.

11

NSS

NOT SOLD SEPARAT

DAMPER - heater

1шт.

12

L32698

CORE - heater

1шт.

13

L32460

ADAPTER - defrost

1шт.

14

A27338

GROMMET

- wire

1шт.

15

NSS

NOT SOLD SEPARAT

DEFLECTOR - heat

1шт.

16

187-328

SCREW - machine, pan head, #10 - 24 NC x 3/8"

2шт.

17

L32490

DECAL - selection, "Heat" or "Defrost"

1шт.

18

L48971

FAN

- defroster, cab rear window, Includes: Ref. 18 - 28

1шт.

19

L30907

GUARD

GRILLE - fan, front

1шт.

20

L30904

GRILLE

- fan, back

1шт.

21

L30906

BOLT

- special

1шт.

22

L30902

FAN

BLADE ASSEMBLY - fan

1шт.

23

225-14208

NUT,#8-36

- hex, #8 - 36 NF

2шт.

24

L35760

WASHER

- special

2шт.

25

D54871

MOTOR

- fan, 24 volt

1шт.

26

L30900

BASE

- fan

1шт.

27

L30909

KNOB

- control

1шт.

28

L30908

NUT

- hex, special

1шт.

29

D54872

SWITCH

- control

1шт.

30

L30910

SCREW

- swivel, if used

1шт.
