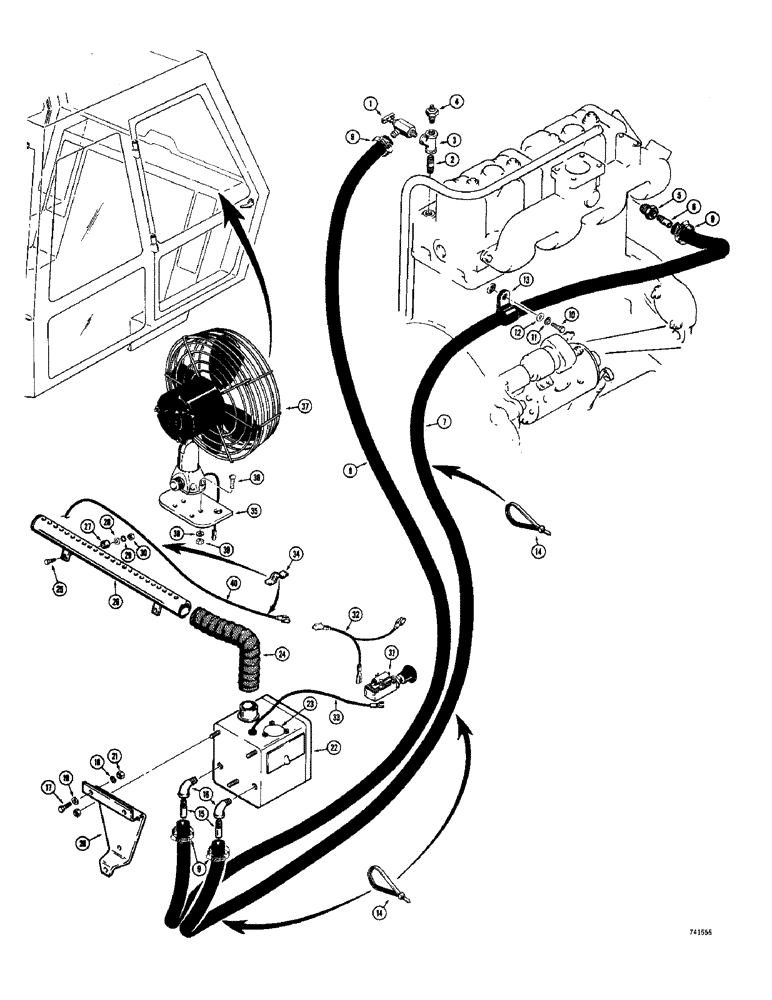

Запчасти Case 780 (588) - CAB HEATER AND DEFROSTER, TRACTOR SN. 5500550 AND AFTER, USED ON MODELS W/SINGLE BACKHOE CONTROL TWR (09) - CHASSIS/ATTACHMENTS

1

A16764

VALVE

Shutoff, water

1шт.

2

221-161

PIPE,Nipple, 3/8" NPT x 1 1/2"

1шт.

3

221-423

TEE,3/8" NPT

Pipe

1шт.

4

L50238

SWITCH

SENDING UNIT- water temperature

1шт.

5

221-59

COUPLING

BUSHING - reducer, 3/4" NPT x 3/8" NPT

1шт.

6

L17985

FITTING,3/8" - 18 NPT

CONNECTOR - heater hose to water pump

1шт.

7

L48962

HOSE

Heater to water pump

1шт.

8

F42219

HEATER HOSE

Shutoff, Serial Range: valve-heater

1шт.

9

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

4шт.

10

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

11

92-5

LOCK WASHER,5/16"

1шт.

12

195-21

WASHER,5/16"

Flat

1шт.

13

49789

CLAMP

SPARE PART Heater hose to engine block

1шт.

14

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

3шт.

15

L17985

FITTING,3/8" - 18 NPT

CONNCETOR - heater, Serial Range: hose-heater

2шт.

16

221-413

ELBOW,90 Degree, 3/8"-18, NPT

FITTING - street, 90 degrees, 3/8" NPT

2шт.

17

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

3шт.

18

92-5

LOCK WASHER,5/16"

3шт.

19

195-21

WASHER,5/16"

Flat

3шт.

20

D64682

SPARE PART BRACKET - mounting, Serial Range: heater-console

1шт.

21

9635082

NUT,5/16" - 18, Gr 5

NUT - hex, 5/16" - 18 NC

3шт.

22

REF

INSTRUCTION

HEATER - cab, parts list Figure 592

1шт.

23

L50606

COVER

PLUG - defroster tube outlet

1шт.

24

D52943

ELBOW

HOSE - connecting, heater to defroster tube

1шт.

25

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

BOLT, Hex, 1/4"-20 x 1 1/4", G5

2шт.

26

D64420

SPARE PART TUBE - defroster

1шт.

27

A26547

SPACER,1/4" Pipe x 1/2"

SPACER - defroster

2шт.

28

195-18

WASHER,1/4"

WASHER - flat, 1/4"

2шт.

29

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

30

25-104

NUT,1/4"-20, G5

NUT, 1/4"-20, G5

2шт.

31

L33827

SWITCH

SWITCH - heater

1шт.

32

D63712

SPARE PART WIRE -, Serial Range: harness-switch

1шт.

33

223-70

SPADE TERMINAL,18 - 20

TERMINAL - starting cable, spade type

1шт.

34

F93268

CLIP

CLAMP -, Serial Range: harness-cab

2шт.

35

D57243

SPARE PART PLATE - mounting, defroster fan

1шт.

36

169-100

SCREW,Sl Fil Hd, #10 - 24 x 3/4"

SCREW - machine, round head, #10 - 24 NC x 3/4"

2шт.

37

L48971

FAN

FAN - defroster, parts list Figure 590

1шт.

38

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

39

129-17

NUT,Hex, #10 - 24

NUT - hex, #10 - 24 NC

4шт.

40

D64656

SPARE PART WIRE - cab harness

1шт.
