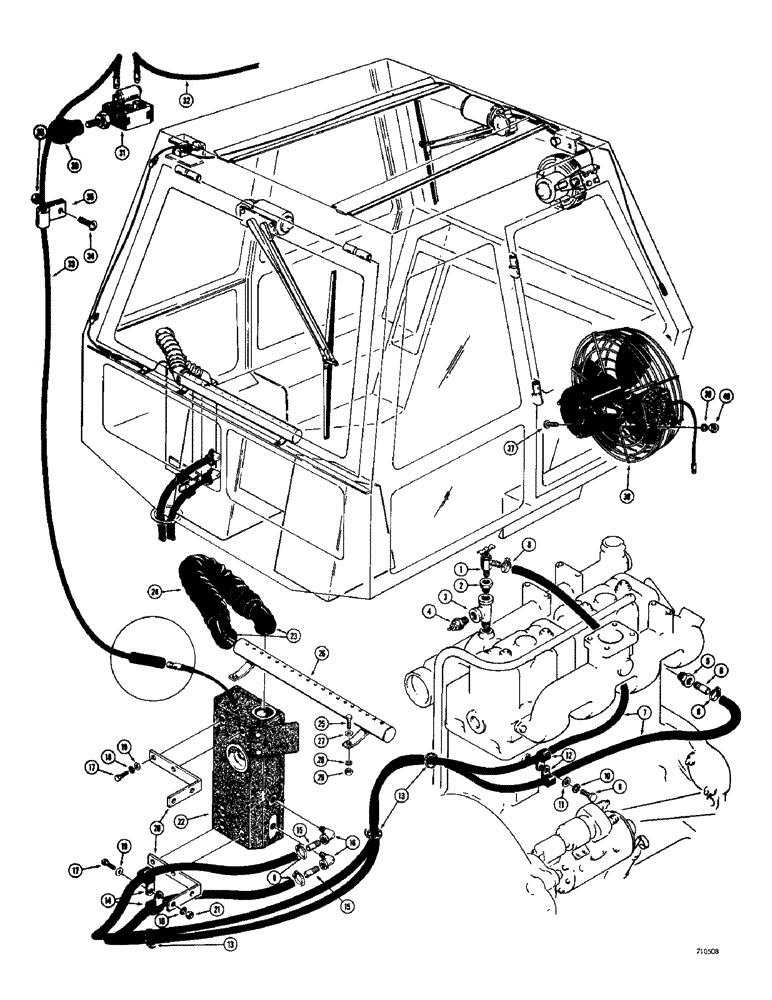

Запчасти Case 780 (584) - CAB HEATER AND DEFROSTER, BEFORE TRACTOR SN. 5500550 (09) - CHASSIS/ATTACHMENTS

1

A16764

VALVE

- shutoff, water

1шт.

2

221-56

BUSHING - reducer, 1/2" NPT x 3/8" NPT

1шт.

3

221-693

TEE,1/2" NPT

FITTING - street, pipe, 1/2" NPT

1шт.

4

A21462

SENDER UNIT

SENDING UNIT - water temperature

1шт.

5

221-59

COUPLING

BUSHING - reducer, 3/4" NPT x 3/8" NPT

1шт.

6

L17985

FITTING,3/8" - 18 NPT

CONNECTOR - heater hose to water pump

1шт.

7

L48962

HOSE

- heater to water pump and shutoff valve

2шт.

8

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

4шт.

9

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

10

92-5

LOCK WASHER,5/16"

1шт.

11

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

1шт.

12

49789

CLAMP

- heater hose to engine block

2шт.

13

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP, CABLE

3шт.

14

49789

CLAMP

- heater hose

2шт.

15

L17985

FITTING,3/8" - 18 NPT

CONNECTOR - heater, Serial Range: hose-heater

2шт.

16

221-413

ELBOW,90 Degree, 3/8"-18, NPT

FITTING - street, 90 degrees, 3/8" NPT

2шт.

17

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

8шт.

18

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

19

195-18

WASHER,1/4"

- flat, 1/4"

8шт.

20

L48961

BRACKET - mounting, Serial Range: heater-console

2шт.

21

25-104

NUT,1/4"-20, G5

4шт.

22

L16339

HEATER - cab, parts list Figure 590

1шт.

23

L13465

ELBOW - hose, 45 degrees

2шт.

24

D53943

HOSE - connecting, heater to defroster tube

1шт.

25

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

26

L15163

DEFROSTER

TUBE - defroster, used with L48050 and D53944 cabs only

1шт.

26

D54950

TUBE - defroster, used with D54735 cab only

1шт.

27

95-4

WASHER,1/4"

- flat, 1/4"

2шт.

28

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

29

25-104

NUT,1/4"-20, G5

2шт.

30

D53932

KNOB - switch

1шт.

31

A12898

SWITCH

- heater

1шт.

32

D53933

WIRE - switch to cab harness

1шт.

33

L48960

WIRE - switch to cab heater

1шт.

34

173-205

X

SCREW - machine, round head, #10 - 24 NC x 5/8"

3шт.

35

L18299

CLAMP

-, Serial Range: harness-cab

3шт.

36

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

3шт.

37

165-33

SCREW - machine, round head, #10 - 32 NF x 3/4"

4шт.

38

L48971

FAN

- defroster, parts list Figure 590

1шт.

39

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

40

129-37

NUT,#10-32

4шт.
