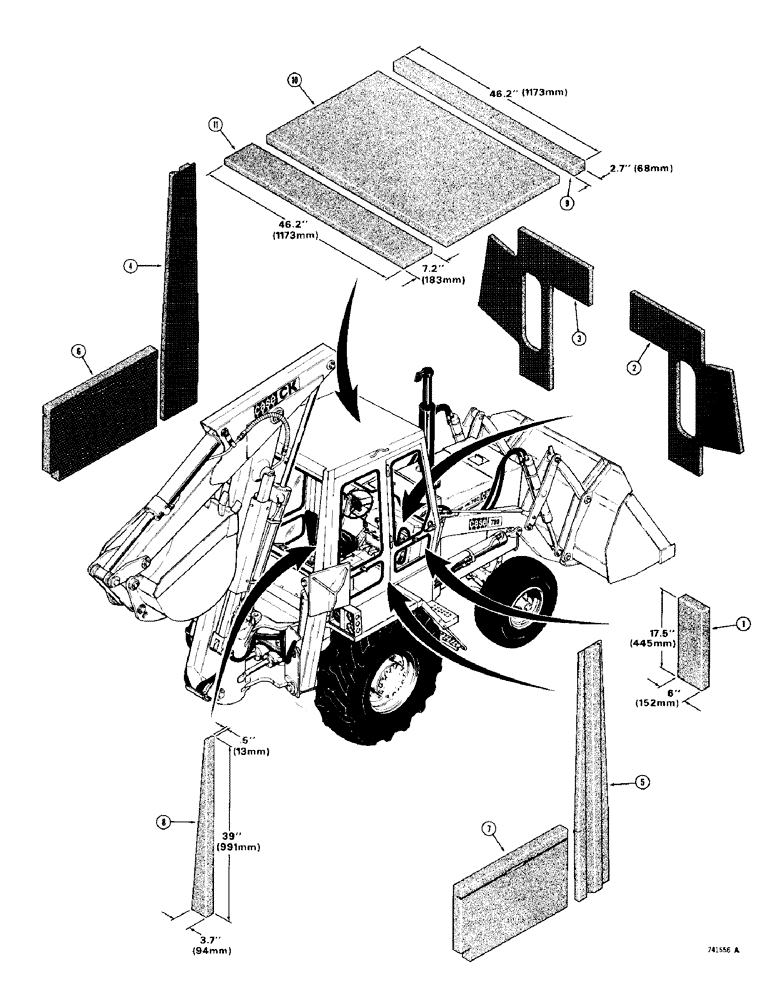

Запчасти Case 780 (582) - NOISE CONTROL PADDING - CAB (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

PADDING - lower front, cut from D60275 bulk foam

2шт.

2

D55290

SPARE PART Cowl window, RH

1шт.

3

D55291

SPARE PART Cowl window, LH

1шт.

4

D61847

SPARE PART Upright, LH

1шт.

5

D61848

SPARE PART Upright, RH

1шт.

6

D62235

SPARE PART Lower side, LH

1шт.

7

D62236

SPARE PART Lower side, RH

1шт.

8

REF

INSTRUCTION

PADDING - around rear window, cut from D60275 bulk foam

2шт.

9

REF

INSTRUCTION

PADDING - headliner, front, black color, cut from D60275 bulk foam

1шт.

9

D77796

SPARE PART Headliner, front, yellow color

1шт.

10

D60765

PADDING

Headliner, center, black color

1шт.

10

D77797

PADDING

Headliner, center, yellow color

1шт.

11

REF

INSTRUCTION

PADDING - headliner, rear, black color cut from D59899 bulk foam

1шт.

11

D77798

PAD

Headliner, rear, yellow color

1шт.

D60275

SPARE PART Bulk, sheet, 12" x 36" x 2" (305 mm x 914 mm x 51 mm)

1шт.

D59899

PAD

Bulk, sheet, 54" x 36" x 1" (1372 mm x 914 mm x 25 mm)

1шт.

345-44

ADHESIVE

Spray can

7шт.

345-47

SPARE PART One quart can

3шт.
