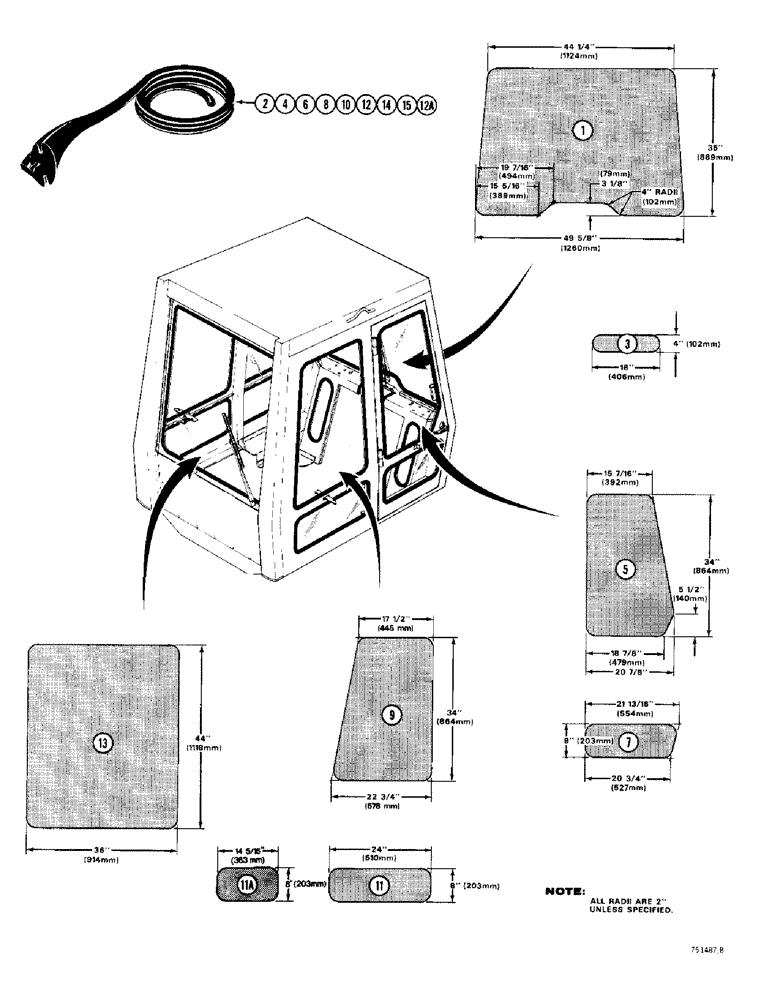

Запчасти Case 780 (578) - CAB GLASS AND MOLDING (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

GLASS - windshield

1шт.

2

REF

INSTRUCTION

MOLDING - windshield, 170" (4318 mm) long, cut from L35717 bulk

1шт.

3

REF

INSTRUCTION

GLASS - cowl

2шт.

4

REF

INSTRUCTION

MOLDING - cowl window, 42" (1067 mm) long, cut from L35717 bulk

2шт.

5

REF

INSTRUCTION

GLASS - upper door

2шт.

6

REF

INSTRUCTION

MOLDING - upper door window, 106" (2692 mm) long, cut from L35717 bulk

2шт.

7

REF

INSTRUCTION

GLASS - lower door

2шт.

8

REF

INSTRUCTION

MOLDING - lower door window, 61" (1549 mm) long, cut from L35717 bulk

2шт.

9

REF

INSTRUCTION

GLASS - upper side panel

2шт.

10

REF

INSTRUCTION

MOLDING - upper side panel, 112" (2845 mm) long, cut from L35717 bulk

2шт.

11

REF

INSTRUCTION

GLASS - lower side panel, used without manual box

2шт.

11a

REF

INSTRUCTION

GLASS - lower side panel, RH, used with manual box

1шт.

12

REF

INSTRUCTION

MOLDING - lower side panel window, 66" (1676 mm) long, cut from L35717 bulk

2шт.

12a

REF

INSTRUCTION

MOLDING - lower side panel window, RH, 48" (1219 mm) long, cut from L35717 bulk

1шт.

13

REF

INSTRUCTION

GLASS - rear window

1шт.

14

REF

INSTRUCTION

MOLDING - rear window, 162" (4115 mm) long, cut from L35717 bulk

1шт.

15

L35717

GASKET

MOLDING - bulk, 50' (152 cm) roll

1шт.
