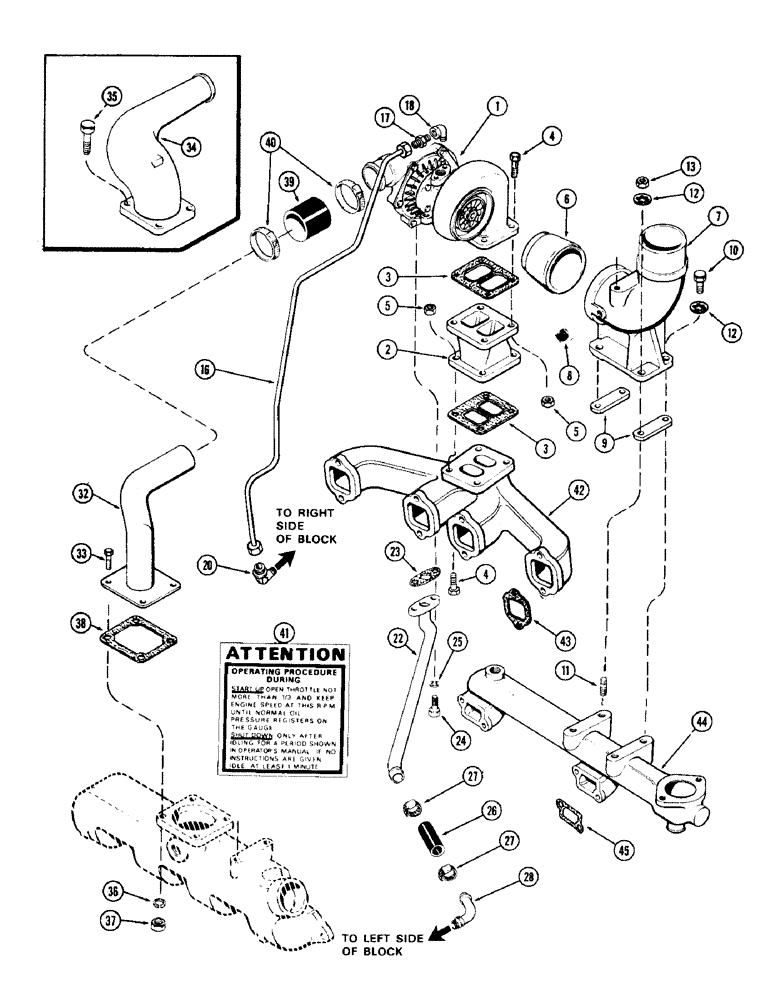

Запчасти Case 780 (038) - TURBOCHARGER CONVERSION KIT, TO ADAPT A NATURALLY ASPIRATED ENG TO BE TURBOCHARGED ENG (02) - ENGINE

A42987

KIT

CONVERSION KIT, Includes: Ref. 1 - 45

1шт.

1

A42166

REMAN-TURBOCHARGER

TURBOCHARGER ASSEMBLY - remanufactured (Order for repairs)

1шт.

service. Order individual components.

1шт.

A42987 conversion kit - Not available as

1шт.

1

A47598

CORE-TURBOCHARGER

TURBOCHARGER ASSEMBLY - (Do not use this part no. for ordering. This part no. is to be used only in requesting return authority on used turbocharger to be returned for credit)

1шт.

2

A61002

ADAPTER

BASE - turbocharger to exhaust manifold

1шт.

3

A58899

GASKET,0.45mm Thk

- base (Upper and lower)

1шт.

4

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex

8шт.

5

131-903

NUT,3/8"-16

NUT - 3/8" N.C. hex., Seez-Pruf

8шт.

6

A65554

TUBE

CONNECTOR - exhaust elbow (Replaces A58896)

1шт.

7

A61941

ELBOW

- exhaust

1шт.

8

221-12

PLUG,Sq Hd, 1/4"-18

- 1/4" P.T. square head

1шт.

9

A59237

SPACER

- elbow to water manifold

2шт.

10

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex

3шт.

11

A59077

STUD

- 3/8" N.C. x 1-7/8"

1шт.

12

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

13

131-903

NUT,3/8"-16

NUT - 3/8" N.C. hex, Seez-Pruf

4шт.

16

A155669

TUBE

ASSEMBLY - oil supply (Replaces A62477)

1шт.

17

222-4027

HYD CONNECTOR,5/8"-24 x 1/4" NPTF

CONNECTOR - 3/8 x 1/4" PT

1шт.

18

217-19

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- brass, 1/4" PT street

1шт.

20

222-4048

ELBOW,90º, 5/8"-24 Fem x 3/8"-18 NPTF

- oil tube to block, 3/8" P.T.

1шт.

22

A59228

TUBE

- oil drain

1шт.

23

A58892

GASKET,1.59mm Thk

- drain, Start Serial: tube

1шт.

24

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

25

92-6

LOCK WASHER,3/8"

2шт.

26

A58893

HOSE

- drain tube, 7/8" I.D. x 3-1/2" (22.22 x 88.9 mm)

1шт.

27

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - 1-3/16" to 1-3/4"

2шт.

28

A59234

FITTING

- drain, Serial Range: tube-block

1шт.

32

A150450

ELBOW

- air intake (Formed tube) (Replaces A77242)

1шт.

without balancer use A143433 which subs to A154275 (used on eng. SN 10186226 and after). The A154275 uses 221-5 3/4" plug (subs to 217-442).

1шт.

Ref. 32 and 34 - air intake elbows - For turbo

1шт.

33

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex

4шт.

34

A58903

ELBOW UNION

ELBOW - air intake (Cast iron) (Order A150450)

1шт.

35

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

36

92-6

LOCK WASHER,3/8"

4шт.

37

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

4шт.

38

A58910

GASKET

- elbow to intake manifold

1шт.

39

A150449

INTAKE AIR HOSE,2.00" ID x 2.88"

2.00" ID x 2.88"

1шт.

40

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

41

321-2796

DECAL

- turbo operating procedure

1шт.

42

A61001

MANIFOLD

- exhaust

1шт.

43

A58895

GASKET

- exhaust manifold (Metal faced)

4шт.

44

A59211

MANIFOLD

- water

1шт.

45

A58637

MANIFOLD GASKET

- water manifold

2шт.
