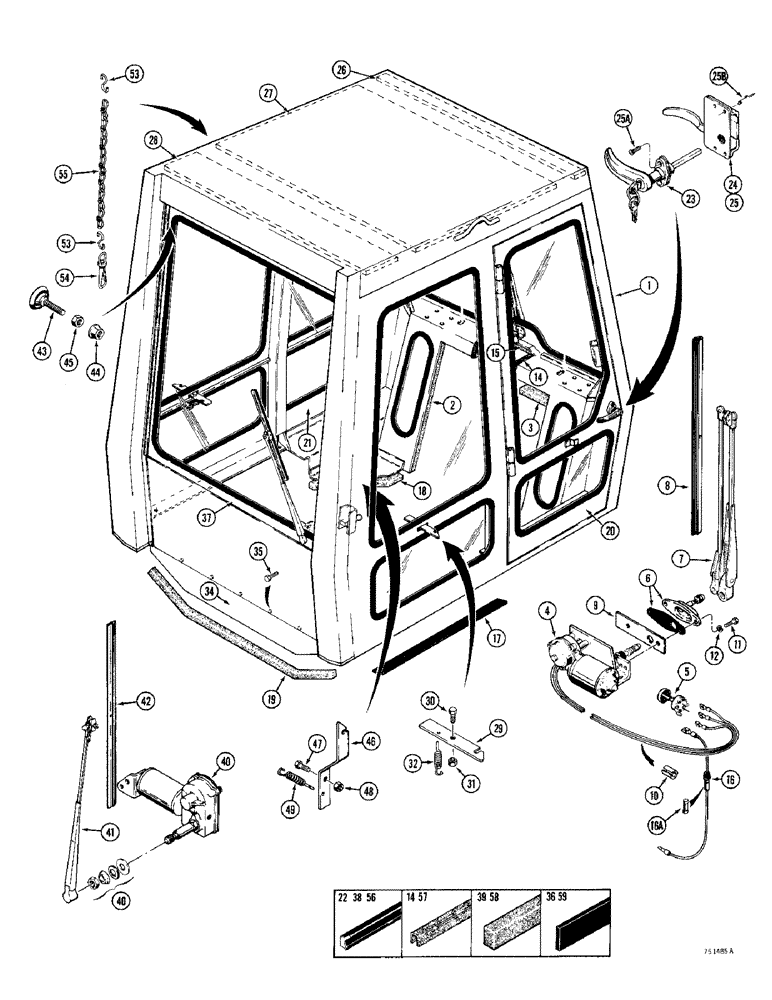

Запчасти Case 780 (570) - D53944 OPERATORS CAB (SIMS 1000-0240), DOOR, WINDOWS AND RELATED PARTS (09) - CHASSIS/ATTACHMENTS

MACH.ITEM

CAB - operator's, ROPS, see Figure 2 for ordering, Includes: Ref. 1 - 55

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - cab

1шт.

2

D70970

SPARE PART Mounting, lower front

2шт.

3

D70971

PAD

Mounting, upper front

2шт.

4

F93455

MOTOR, ELECTRIC

Windshield wiper, parts list Figure 598

1шт.

5

S225028

IGNITION SWITCH

Wiper motor, Includes: Ref. 5A and 5B

1шт.

5a

D80343

SPARE PART Switch, not shown

1шт.

5b

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

Switch, not shown

1шт.

6

L35753

ADAPTER

Wiper

1шт.

7

L35263

ARM

Wiper, 20" (508 mm)

1шт.

8

L35261

BLADE

Wiper, 20" (508 mm)

1шт.

9

D70646

BUSHING

SPACER - wiper

1шт.

10

D70645

SPARE PART Wiper wire

2шт.

11

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

12

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

2шт.

13

RESERVED

1шт.

14

REF

INSTRUCTION

WINDLACE - gasket, 25" (635 mm) long, cut from L35759 bulk

1шт.

15

D71023

SPARE PART Mounting

1шт.

16

D66312

SPARE PART ASSEMBLY - fuse, Includes: Ref. 16A

1шт.

16a

N6307

SPARE PART 4 amp, 3AG, 125V

1шт.

17

D71020

SPARE PART Side panel mounting

2шт.

18

D71021

SPARE PART Floor filler

2шт.

19

D71022

SPARE PART Mounting

1шт.

20

D71015

SPARE PART RH

1шт.

21

D71014

SPARE PART LH

1шт.

22

REF

INSTRUCTION

WEATHER STRIP - door, 149" (3785 mm) long, cut from L35732 bulk

2шт.

23

T42591

HANDLE

Outside, key lock

2шт.

24

L35738

LATCH

RH, door

1шт.

25

L35737

LATCH

LH, door

1шт.

25a

187-627

SCREW - self-tapping, #8-32 NC x 3/4"

4шт.

25b

151-549

RIVET - pop, 1/4" dia.

8шт.

26

NSS

NOT SOLD SEPARAT

HEADLINER - front, if used

1шт.

27

NSS

NOT SOLD SEPARAT

HEADLINER - middle, if used

1шт.

28

NSS

NOT SOLD SEPARAT

HEADLINER - rear, if used

1шт.

29

L35800

LATCH ASSY.

Door hold back

2шт.

30

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

31

129-103

NUT,Hex, 3/8" - 16, Gr 5

2шт.

32

L35748

SPRING

Latch

2шт.

33

RESERVED

1шт.

34

D71017

SPARE PART Lower rear

1шт.

35

187-1068

SELF-TAP SCREW,Hex Hd, 5/16" x 1/2"

2шт.

36

REF

INSTRUCTION

RUBBER - adhesive, 50" (1270 mm) long, cut from L35819 bulk

1шт.

37

D70972

WINDOW

REAR - cab

1шт.

38

REF

INSTRUCTION

WEATHER STRIP - rear window, 42" (1067 mm) long, cut from L35759 bulk

2шт.

39

REF

INSTRUCTION

RUBBER - adhesive, 48" (1219 mm) long, cut from L35801 bulk

1шт.

40

L33839

ELECTRIC MOTOR

Wiper, rear

1шт.

41

F42213

ARM

Wiper, rear, 16" (406 mm)

1шт.

20" arm, part nbr D71195 (now a part type 6).

1шт.

F42213 rear wiper arm - May also use a

1шт.

42

A42580

WIPER BLADE,203.2mm L

BLADE, WIPER Rear, 14" (356 mm)

1шт.

43

D70621

ROLLER

Rear window

4шт.

44

131-912

LOCK NUT,Flg, 1/2"-13

4шт.

45

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

46

L35832

SPARE PART LATCH - rear window

1шт.

47

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

48

129-103

NUT,Hex, 3/8" - 16, Gr 5

1шт.

49

L35748

SPRING

Latch

1шт.

50

205-28

SPARE PART PLUG - button, 41/64", not shown

1шт.

51

205-8

SPARE PART PLUG - button, 5/16", not shown

2шт.

52

205-18

X

PLUG - button, 7/16", not shown

3шт.

53

L35834

SPARE PART Rear window chain

2шт.

54

L35835

RING, SNAP

RING SNAP Chain

1шт.

55

D70605

SPARE PART Rear window

1шт.

56

L35732

STRIP

WEATHER - bulk, 50' (1524 cm) roll

1шт.

57

L35759

SPARE PART Bulk, 50' (1524 cm) roll

1шт.

58

L35801

FOAM

RUBBER - adhesive, bulk, 50' (1524 cm) roll

1шт.

59

L35819

RUBBER SEAL

RUBBER - adhesive, bulk, 50' (1524 cm) roll

1шт.
