Запчасти Case 780 (568) - ROPS OPERATORS CAB AND CANOPY (09) - CHASSIS/ATTACHMENTS

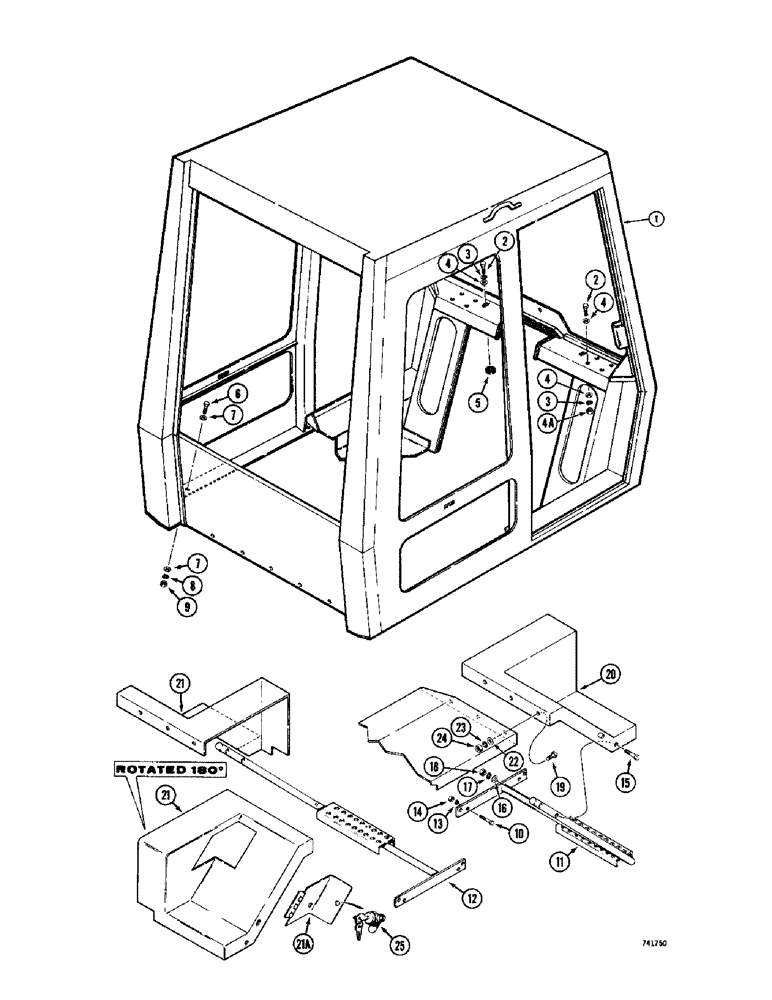

Схема запчастей Case 780 - (568) - ROPS OPERATORS CAB AND CANOPY (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

1

D53944

CAB - operator's, with rollover protection structure, models with twin backhoe control towers, see Figure 594 for cab wiring and Figures 570, 572 and 578 for components, machinery item - see Figure 2 for ordering

1шт.

1

D64658

CAB - operator's, with rollover protection structure, models with single backhoe control tower, see Figure 596 for cab wiring and Figures 574-578 for components, machinery item - see Figure 2 for ordering

1шт.

1

MACH.ITEM

CANOPY - ROPS, same as cab less doors and windows, machinery item - see Figure 2 for ordering

1шт.

2

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2" - 13 NC x 2-1/4", front mounting

1шт.

3

92-8

LOCK WASHER,1/2"

10шт.

4

95-8

WASHER,1/2"

flat 1/2"

1шт.

4a

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

8шт.

5

L48293

SPACER -, Serial Range: cab-wrapper

2шт.

6

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Rear mounting Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

7

95-8

WASHER,1/2"

flat 1/2"

8шт.

8

92-8

LOCK WASHER,1/2"

4шт.

9

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

10

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

8шт.

11

L47517

STEP - cab, R.H., lower

1шт.

12

L47518

STEP - cab. L.H., lower, not shown

1шт.

13

92-6

LOCK WASHER,3/8"

8шт.

14

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

8шт.

15

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2" - 13 NC x 2-1/4", upper to lower step mounting

4шт.

16

95-8

WASHER,1/2"

flat 1/2"

4шт.

17

92-8

LOCK WASHER,1/2"

4шт.

18

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

19

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

20

L47525

STEP - cab, R.H., upper

1шт.

21

L47526

STEP - cab, L.H., upper, Includes: Ref. 21A

1шт.

21a

L48818

COVER - access, fuel filler

1шт.

22

95-8

WASHER,1/2"

flat 1/2"

8шт.

23

92-8

LOCK WASHER,1/2"

8шт.

24

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

8шт.

25

D54482

LOCK ASSY

LOCK ASSEMBLY -fuel filler cover, includes keys

1шт.

Выбрано товаров: 29
