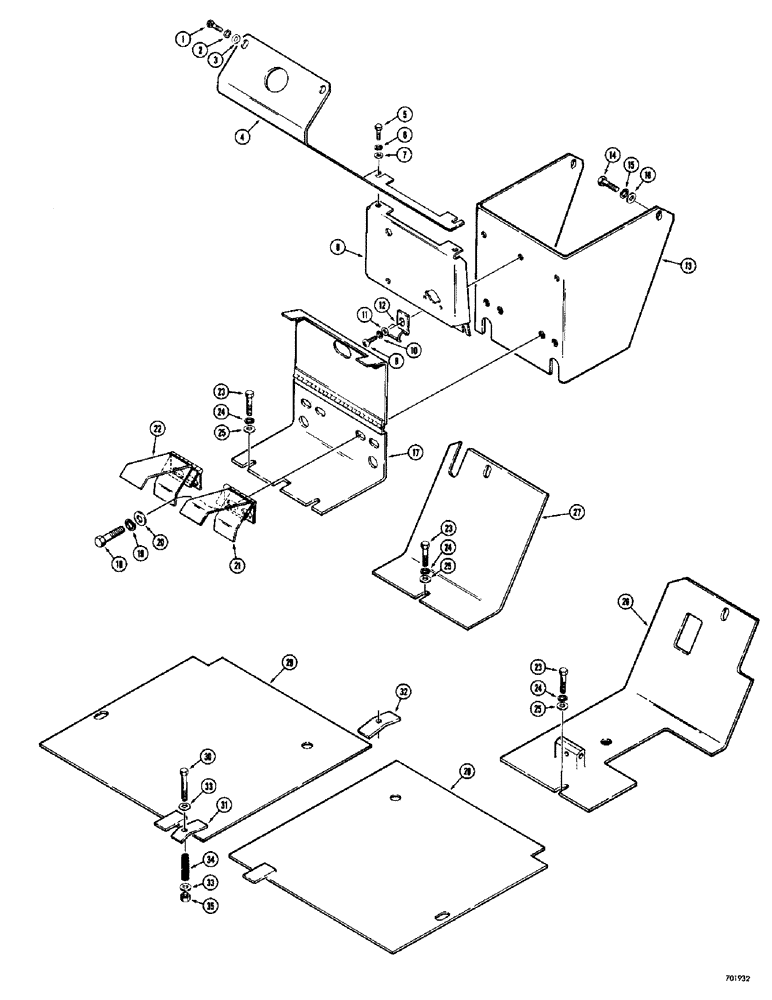

Запчасти Case 780 (550) - FLOOR PLATES AND FIREWALL (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
173-214
SCREW,Phil Rnd Hd, 1/4" - 20 x 3/4"
- machine, Phillips head, 1/4" - 20 NC x 3/4"
2шт.
2
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, 1/4"
2шт.
3
195-518
WASHER,1/4", SAE
- flat, 1/4"
2шт.
4
L22524
COVER - console access
1шт.
5
113-4
BOLT,Hex, 1/4" - 20 x 1", Gr 5
- hex, 1/4" - 20 NC x 1/2", plated
2шт.
6
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, 1/4"
2шт.
7
195-518
WASHER,1/4", SAE
- flat, 1/4"
2шт.
8
L47233
PANEL - instrument, auxiliary
1шт.
9
175-402
SCREW,Sl Truss Hd, 1/4" - 20 x 5/8"
- machine, truss head, 1/4" - 20 NC x 5/8"
3шт.
10
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, 1/4"
3шт.
11
195-518
WASHER,1/4", SAE
- flat, 1/4"
3шт.
12
L43616
CATCH - brake pedal cover
1шт.
13
L43606
COVER - console, lower
1шт.
14
13-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
2шт.
15
92-5
LOCK WASHER,5/16"
2шт.
16
95-5
WASHER,3/8" x 7/8" x .083"
- flat, 5/16"
2шт.
17
D53948
LARGE PLATE
COVER - brake pedal
1шт.
18
13-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
4шт.
19
92-6
LOCK WASHER,3/8"
4шт.
20
195-25
WASHER,3/8"
flat, 3/8"
4шт.
21
L44005
PEDAL - brake control, R.H.
1шт.
22
L43620
PEDAL - brake control, L.H.
1шт.
23
13-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
4шт.
24
92-5
LOCK WASHER,5/16"
4шт.
25
95-5
WASHER,3/8" x 7/8" x .083"
- flat, 5/16"
4шт.
26
L19410
PLATE - floor, R.H. front
1шт.
27
L19411
PLATE - floor, L.H. front
1шт.
28
L19363
PLATE - floor, R.H. center, battery cover
1шт.
29
L19364
PLATE - floor, L.H. center, battery cover
1шт.
30
13-536
BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5
2шт.
31
L45934
LATCH - center floor plates, rear
1шт.
32
L11056
LATCH - center floor plates, front
1шт.
33
195-21
WASHER,5/16"
- flat, 5/16"
4шт.
34
A33749
SPRING
- latch, tension
2шт.
35
131-4
LOCK NUT,5/16"-18, GB
NUT - hex, self lock, 5/16" - 18 NC
2шт.
Выбрано товаров: 35
