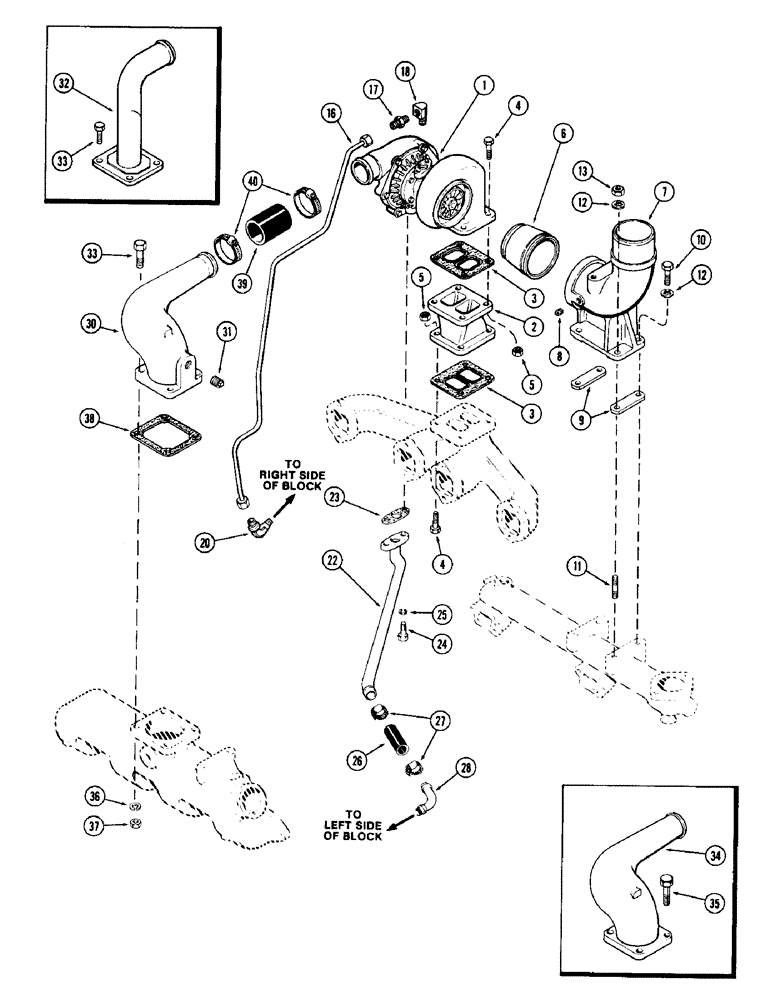

Запчасти Case 780 (036) - TURBOCHARGER SYSTEM, 336BDT DIESEL ENGINE (02) - ENGINE

1

A151278

TURBOCHARGER

TURBOCHARGER ASSEMBLY - new

1шт.

1

A48194

REMAN-TURBOCHARGER

Remanufactured Turbocharger

1шт.

1

A48193

CORE-TURBOCHARGER

Return Part Number

1шт.

1

A47599

REMAN-TURBOCHARGER

Spare Part Turbocharger Assembly, Remanufactured

1шт.

1

A47598

CORE-TURBOCHARGER

Return Part Number, use this part no. to return turbocharger core for credit

1шт.

2

A61002

ADAPTER

BASE - turbocharger to exhaust manifold

1шт.

3

A58899

GASKET,0.45mm Thk

GASKET - base (Upper and lower)

1шт.

4

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

BOLT - 3/8 x 1-1/2" NC hex

8шт.

5

131-903

NUT,3/8"-16

NUT - 3/8" NC hex., Seez-pruf

8шт.

6

A65554

TUBE

CONNECTOR - exhaust elbow (Replaces A58896)

1шт.

7

A61941

ELBOW

ELBOW - exhaust

1шт.

8

221-12

PLUG,Sq Hd, 1/4"-18

PLUG - 1/4" PT square head

1шт.

9

A59237

SPACER

SPACER - elbow to water manifold

2шт.

10

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

BOLT - 3/8 x 1-1/2" NC hex

3шт.

11

A59077

STUD

STUD - 3/8" NC x 1-7/8"

1шт.

12

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

13

131-903

NUT,3/8"-16

NUT - 3/8" NC hex, Seez-Pruf

4шт.

16

A155669

TUBE

TUBE ASSEMBLY - oil supply (Replaces A62477)

1шт.

17

222-4027

HYD CONNECTOR,5/8"-24 x 1/4" NPTF

CONNECTOR - 3/8 x 1/4" PT

1шт.

18

217-19

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

ELBOW - brass, 1/4" PT street

1шт.

20

222-4048

ELBOW,90º, 5/8"-24 Fem x 3/8"-18 NPTF

ELBOW - oil tube to block, 3/8" PT

1шт.

22

A59228

TUBE

TUBE - oil drain

1шт.

23

A58892

GASKET,1.59mm Thk

GASKET - drain tube

1шт.

24

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

25

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

26

A58893

HOSE

HOSE - drain tube, 7/8" ID x 3-1/2" (22.22 x 88.9 mm)

1шт.

27

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - 1-3/16" to 1-3/4" (30.16 to 44.45 mm)

2шт.

28

A59234

FITTING

FITTING - drain, Serial Range: tube-block

1шт.

30

A154275

ELBOW

ELBOW - air intake (Engine serial no. 10186226 and after)

1шт.

31

221-5

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

PLUG - intake elbow (Engine serial no. 10186226 and after)

1шт.

32

A150450

ELBOW

ELBOW - air intake (Formed tube) (Replaces A77242) (Engine serial no. 2579516 - 10186225)

1шт.

33

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

BOLT - 3/8 x 1-1/2" NC hex

4шт.

34

A58903

ELBOW UNION

Union Elbow ELBOW - air intake (Cast iron) (Order A150450) (Prior to engine serial no. 2579516)

1шт.

without balancer use A143433 which subs to A154275 (used on eng. SN 10186226 and after). The A154275 uses 221-5 3/4" plug (subs to 217-442).

1шт.

Ref. 32 and 34 - air intake elbows - For turbo

1шт.

35

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

BOLT, (Used with A58903 elbow) Hex, 3/8"-16 x 1 3/4", G5

4шт.

36

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

37

25-106

NUT,3/8"-16, G5

NUT - 3/8" NC hex

4шт.

38

A58910

GASKET

GASKET - elbow to intake manifold

1шт.

39

A150449

INTAKE AIR HOSE,2.00" ID x 2.88"

1шт.

40

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

HOSE CLAMP, (33.34 to 57.15 mm) #28, 1.31/2.25 Type F Worm

2шт.
