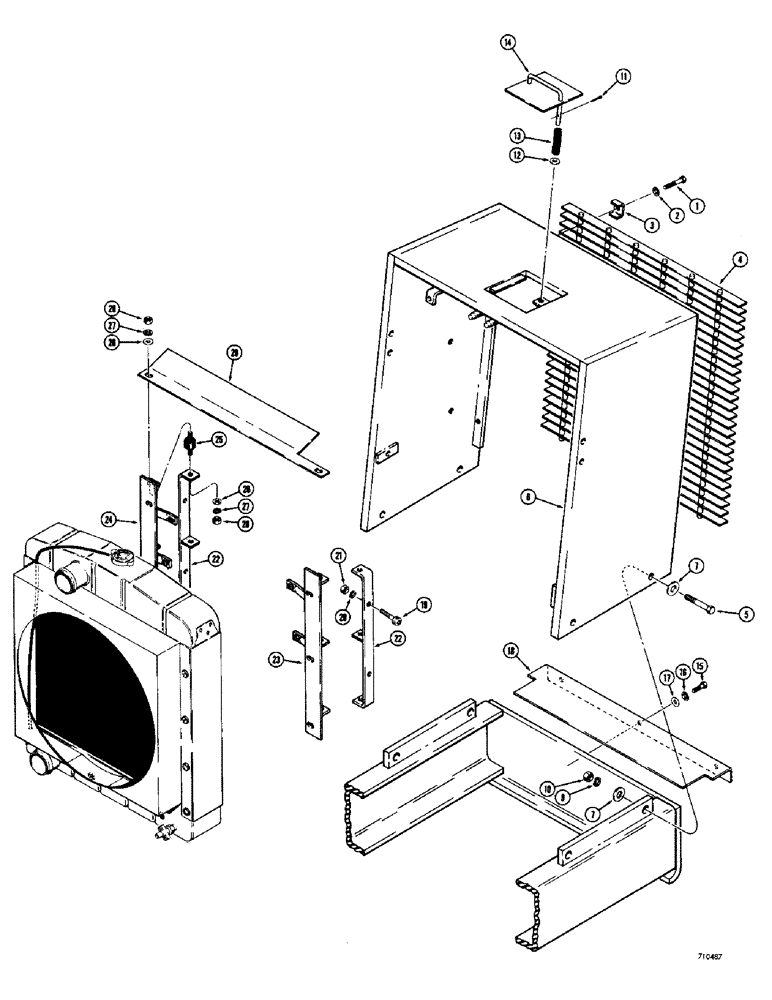

Запчасти Case 780 (544) - RADIATOR FRAME AND GRILLE (09) - CHASSIS/ATTACHMENTS

1

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8" - 16 NC x 1-1/2"

4шт.

2

92-6

LOCK WASHER,3/8"

4шт.

3

L13218

CLIP

CLAMP - radiator, Serial Range: grille-frame

4шт.

4

L43393

GRILLE - radiator

1шт.

5

26-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

- hex, 3/4" - 10 NC x 2-3/4", grade 8

4шт.

6

L43368

FRAME - radiator and grille, before tractor SN. 5500550

1шт.

6

D56041

FRAME - radiator and grille, tractor SN. 5500550 and after

1шт.

7

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

8шт.

8

RESERVED

1шт.

9

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

10

129-572

NUT,3/4"-10, G8

4шт.

11

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

12

95-4

WASHER,1/4"

- flat, 1/4"

1шт.

13

R14066

SPRING - access door

1шт.

14

L43956

DOOR

- radiator access

1шт.

15

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

16

92-6

LOCK WASHER,3/8"

3шт.

17

95-6

WASHER,3/8"

- flat, 3/8"

3шт.

18

L43385

PLATE - filler, lower

1шт.

19

61-628

HEX SOC SCREW,3/8"-16 x 1 3/4"

CAP SCREW - hex socket head, 3/8" - 16 NC x 1-3/4", used with L43368 frame

4шт.

19

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8" - 16 NC x 2", Used with D56041 frame

4шт.

20

92-6

LOCK WASHER,3/8"

4шт.

21

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

22

L45252

BRACKET - mounting, radiator, Serial Range: bolted-frame

2шт.

23

L43388

VALVE POPPET

BRACKET - mounting, radiator and oil cooler, R.H., used before tractor SN. 5502546

1шт.

23

D89860

BRACKET - mounting, radiator and oil coller, R.H., used on tractor SN. 5502546 and after

1шт.

24

L43389

BRACKET - mounting, radiator and oil cooler, L.H., used before tractor SN. 5502546

1шт.

24

D89859

BRACKET - mounting, radiator and oil cooler, L.H., used on tractor SN. 5502546 and after

1шт.

25

L11236

BOLT

BOLT - flex mounting

6шт.

26

196-21

WASHER - flat, 5/16"

12шт.

27

92-5

LOCK WASHER,5/16"

12шт.

28

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

12шт.

29

L43380

BAFFLE - air, upper

1шт.
