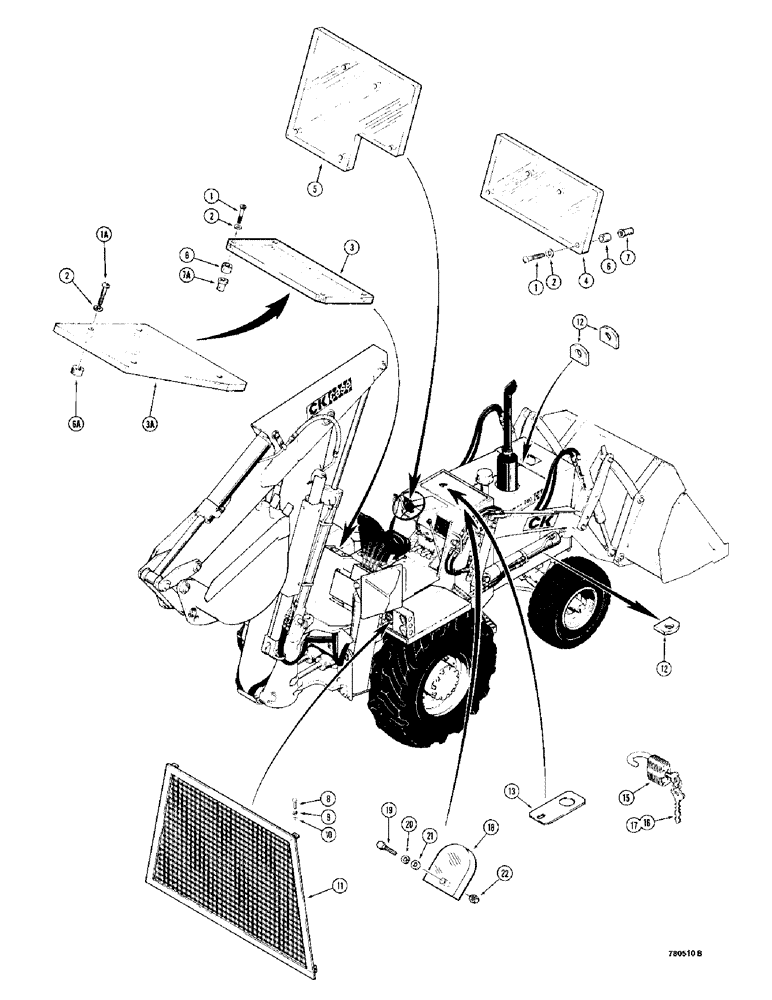

Запчасти Case 780 (542) - LOCK UP PARTS (09) - CHASSIS/ATTACHMENTS

1

173-291

SCREW - machine, round head, 1/4" - 20 NC x 1-3/8"

13шт.

1a

187-572

SCREW - self-tapping, 1/4" - 20 NC x 1-1/2", used with D71174 console cover, if used

4шт.

2

195-518

WASHER,1/4", SAE

- flat, 1/4"

13шт.

3

D54240

COVER

- rear console, models with twin backhoe control towers

1шт.

3a

D71174

COVER - rear console, models with single backhoe control tower

1шт.

4

D54239

COVER

- instrument panel, right-hand

1шт.

5

D54238

COVER

- instrument panel, left-hand

1шт.

6

D53925

SPACER -, Serial Range: covers-panel

13шт.

6a

D33551

BUSHING

SPACER - used with D71174 console cover, if used

4шт.

7

D53276

NUT - plug, 1/4" - 20 NC, instrument panels

9шт.

7a

D54246

NUT - plug, 1/4" - 20 NC, used with D54240 console cover, if used

4шт.

8

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

16шт.

9

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

16шт.

10

95-4

WASHER,1/4"

- flat, 1/4"

16шт.

11

L45049

GUARD - rear light

4шт.

12

L47554

BRACKET - lock, engine, side panel and radiator access cover

4шт.

13

D54237

COVER - hydraulic reservoir dipstick

1шт.

14

RESERVED

1шт.

15

D93753

PADLOCK

- includes keys, Includes: Ref. 16 and 17

1шт.

16

R29555

KEY

- for Master padlock only

2шт.

17

D93751

SET OF 2 KEYS

KEY - for Yale padlock only, not shown

2шт.

18

D91499

COVER - filter gauge, used with D91498 access cover, see Figure 546

1шт.

19

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

20

92-5

LOCK WASHER,5/16"

1шт.

21

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

1шт.

22

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self lock, 5/16" - 18 NC

1шт.
