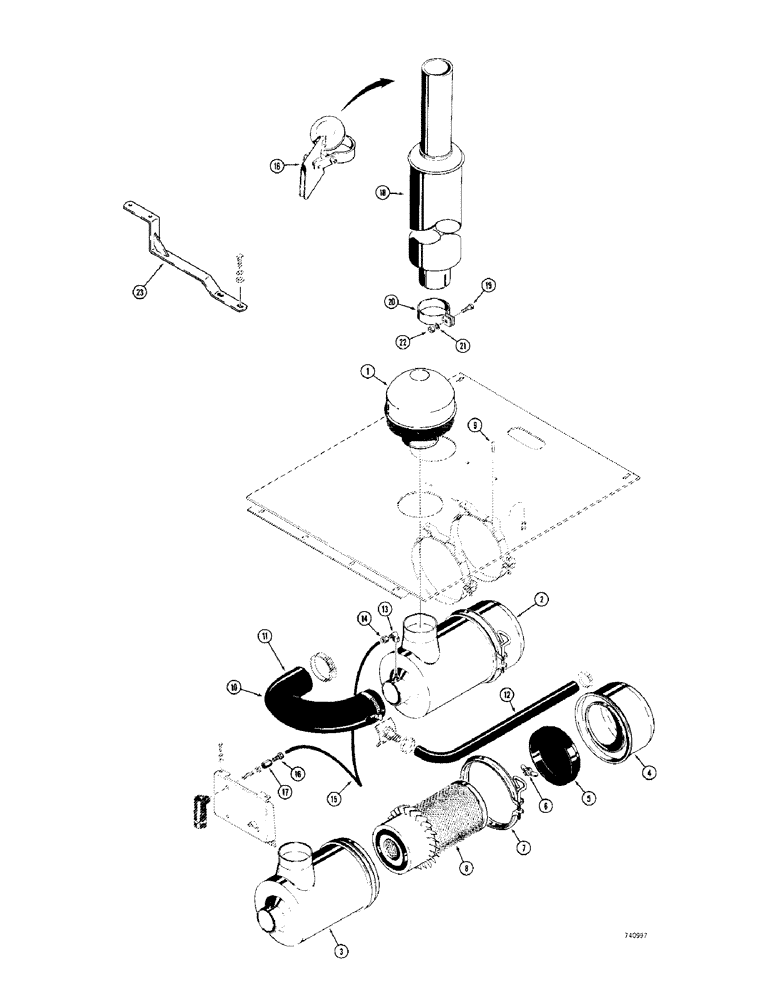

Запчасти Case 780 (538) - ALTITUDE COMPENSATING KIT, TURBO-CHARGED ENGINES B4 TRAC SN 5500550 (09) - CHASSIS/ATTACHMENTS

D17113

KIT

- altitude compensating, Includes: Ref. 1 - 23

1шт.

1

A16575

PRESCREENER

CAP - air cleaner

1шт.

2

D55864

CLEANER

AIR CLEANER - engine, Includes: Ref. 3 - 8

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

4

A40951

CUP

- air cleaner

1шт.

5

D37979

BAFFLE

- air cleaner

1шт.

6

D78354

WING NUT

NUT AND WASHER - element

1шт.

7

R15731

CLAMP

- air cleaner

1шт.

8

D56453

AIR CLEANER

ELEMENT - air cleaner

1шт.

9

175-411

SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- machine, truss head, 5/16" - 18 NC x 1"

4шт.

10

D84560

HOSE

- air, Serial Range: cleaner-turbo-charger

1шт.

11

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - hose, at air cleaner

1шт.

12

D84666

HOSE,0.75" ID x 14.00"

Air Cleaner to Brake Air Compressor 0.75" ID x 14.00"

1шт.

222-520

ELBOW,90 Degree x 1/8" NPT x 5/16"-20, Fem

FITTING ASSEMBLY - 90 degrees, tube fitting, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

FITTING - 90 degrees

1шт.

14

222-500

TUBE NUT,5/16" - 24 NPT

NUT - fitting to tube

1шт.

15

D55972

TUBE - air, Serial Range: cleaner-indicator

1шт.

222-1400

HYD CONNECTOR,Fem, 5/16"-24

FITTING - tube, female connector, Includes: Ref. 16 and 17

1шт.

16

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

17

222-500

TUBE NUT,5/16" - 24 NPT

NUT - fitting

1шт.

18

A64990

MUFFLER

- engine exhaust, see Figure 14 for optional exhaust systems

1шт.

18a

A62175

CYLINDER END CAP

CAP - rain, includes mounting hardware

1шт.

19

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

20

A17851

CLAMP

- exhaust pipe

1шт.

21

92-6

LOCK WASHER,3/8"

1шт.

22

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

23

D56519

STRAP - manifold

1шт.
