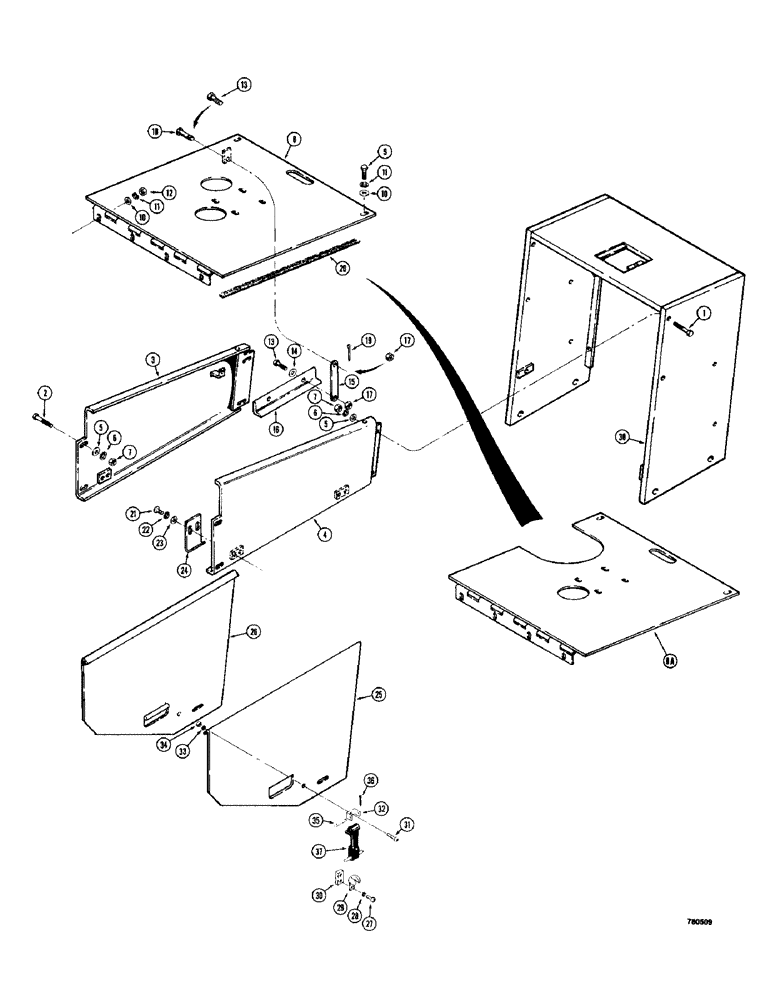

Запчасти Case 780 (534) - HOOD AND SIDE PANELS, TRACTOR SN. 5500550 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8" - 16 NC x 2", Front mounting bolts

4шт.

2

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Rear mounting bolts Hex, 3/8"-16 x 1 3/4", G5

4шт.

3

D55806

PANEL - hood side, left-hand, used on tractors with turbo-charged engines

1шт.

3

D57516

PANEL - hood side, left-hand, used on tractors with non-turbo-charged engines

1шт.

4

D82163

PANEL, SIDE

PANEL - hood side, right-hand

1шт.

5

195-25

WASHER,3/8"

- flat, 3/8"

8шт.

6

92-6

LOCK WASHER,3/8"

8шт.

7

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

8шт.

8

D55810

HOOD - engine, top, used on tractors with turbo-charged engines without muffler

1шт.

In illustration is NSS. Must order engine top hood assy.

1шт.

Ref. 8 and 8A - engine top hoods - Hinge showing

1шт.

8

D85936

HOOD

- engine, top, used on tractors with turbo-charged engine with muffler, not shown

1шт.

8a

D57518

HOOD - engine, top, used on tractors with non turbo-charged engines

1шт.

9

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

10

195-25

WASHER,3/8"

- flat, 3/8"

6шт.

11

92-6

LOCK WASHER,3/8"

6шт.

12

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

13

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Upper to lower link Hex, 1/4"-20 x 1", G5

2-3шт.

14

195-18

WASHER,1/4"

- flat, 1/4"

1-2шт.

15

L17622

DRAG LINK

LINK - hood support, upper

1-2шт.

16

D56325

LINK - hood support, lower

1-2шт.

17

131-2

NUT,1/4"-20, GB

NUT - hex, lock, 1/4" - 20 NC

2-3шт.

18

141-2

CLEVIS PIN,1/4" x .770"

PIN - clevis, 1/4", if used

4шт.

19

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), , If used 1/16" x 1/2"

4шт.

20

D56329

STRIP - hood dampening

2шт.

21

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- machine, round head, no. 10 - 24 NC x 1/2"

8шт.

22

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

8шт.

23

195-18

WASHER,1/4"

- flat, no. 10

8шт.

24

D55965

CLIP - retaining, side panel

4шт.

25

L45086

PANEL - side, engine, right-hand, used on models with twin backhoe control towers

1шт.

25

D63211

PANEL

- side, engine, right-hand, used on models with single backhoe control tower

1шт.

26

L45087

PANEL

- side, engine, left-hand, used on models with twin backhoe control towers

1шт.

26

D63212

PANEL - side, engine, left-hand, used on models with single backhoe control tower

1шт.

27

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- machine, round head, #10 - 24 NC x 1/2"

4шт.

28

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

29

L47158

BRACKET

-, Serial Range: holddown-chassis

2шт.

30

L48956

BLOCK

- mounting, bracket, Serial Range: welded-chassis

2шт.

31

182-241

SCREW,Sl Pan Hd, 5/16" - 18 x 5/8"

- machine, round head, 5/16" - 18 NC x 5/8"

2шт.

32

L47159

BRACKET

- holddown to side panel

2шт.

33

92-5

LOCK WASHER,5/16"

2шт.

34

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

35

T11232

PIN

- mounting, hook to side panel

2шт.

36

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

37

L47157

HOOK

- rubber, side panel

2шт.

38

D56041

FRAME - radiator and grille, see Figure 544 for related parts

1шт.
