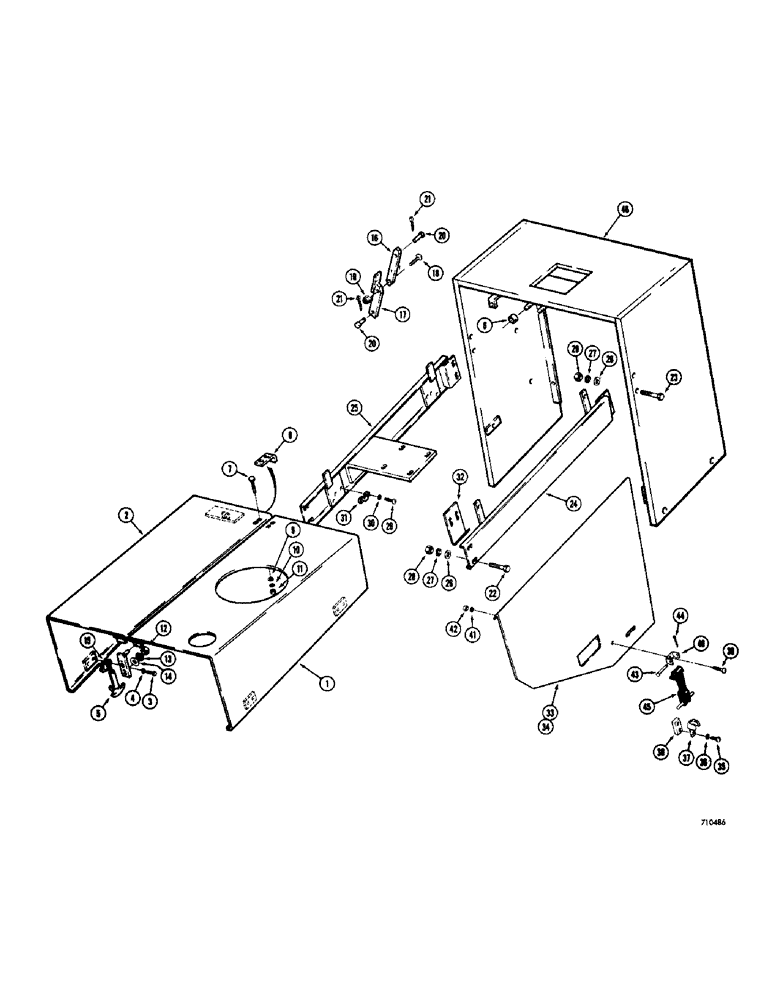

Запчасти Case 780 (532) - HOOD AND SIDE PANELS, BEFORE TRACTOR SN. 5500550 (09) - CHASSIS/ATTACHMENTS

1

L43469

HOOD - engine, R.H.

1шт.

2

L43466

HOOD - engine, L.H.

1шт.

3

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

8шт.

4

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

5

A17232

LATCH ASSY.

LATCH - hood hold down

4шт.

6

L43472

SPACER,3/8" X-Strng Pipe x 1/2"

- hood to radiator frame

2шт.

7

111-243

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

4шт.

8

L43479

BRACKET - hood pivot, front

2шт.

9

195-521

WASHER,5/16", SAE

- flat, 5/16"

4шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

11

9635082

NUT,5/16" - 18, Gr 5

4шт.

12

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

14

195-526

WASHER,7/16" x 7/8" x .083"

- flat, 3/8"

4шт.

15

L43471

PIN AND BRACKET - hood pivot, rear

2шт.

16

L17622

DRAG LINK

LINK - hood support, upper

1шт.

17

L43474

LINK - hood support, lower

1шт.

18

78-410

SCREW - machine, truss head, 1/4" - 28 NF x 5/8"

1шт.

19

131-30

LOCK NUT,1/4"-28, G8

NUT - hex, lock, 1/4"-28 NF

1шт.

20

141-2

CLEVIS PIN,1/4" x .770"

PIN - clevis, 1/4"

2шт.

21

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

2шт.

22

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8" - 16 NC x 1-1/2", support to chassis

4шт.

23

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Support to wrapper Hex, 3/8"-16 x 1 3/4", G5

4шт.

24

L43480

SUPPORT - hood, R.H.

1шт.

25

L43481

SUPPORT - hood, L.H.

1шт.

26

95-6

WASHER,3/8"

- flat, 3/8"

8шт.

27

92-6

LOCK WASHER,3/8"

8шт.

28

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

8шт.

29

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- machine, round head, #10 - 24 NC x 1/2"

8шт.

30

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

8шт.

31

A17237

HOOK

CATCH - hood holddown

4шт.

32

L45043

CLIP - retaining, side panel

4шт.

33

L45086

PANEL - side, engine, R.H.

1шт.

34

L45087

PANEL

- side, engine, L.H.

1шт.

35

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- machine, round head, #10 - 24 NC x 1/2"

4шт.

36

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

37

L47158

BRACKET

-, Serial Range: holddown-chassis

2шт.

38

L48956

BLOCK

- mounting, bracket, Serial Range: welded-chassis

2шт.

39

182-241

SCREW,Sl Pan Hd, 5/16" - 18 x 5/8"

- machine, round head, 5/16" - 18 NC x 5/8"

2шт.

40

L47159

BRACKET

- holddown to side panel

2шт.

41

92-5

LOCK WASHER,5/16"

2шт.

42

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

43

T11232

PIN

- mounting, hook to side panel

2шт.

44

132-45

COTTER PIN,1/8" x 5/8"

Pin, Split (Cotter), 1/8" x 5/8"

2шт.

45

L47157

HOOK

- rubber, side panel

2шт.

46

L43368

FRAME - radiator and grille, see Figure 544 for related parts

1шт.
