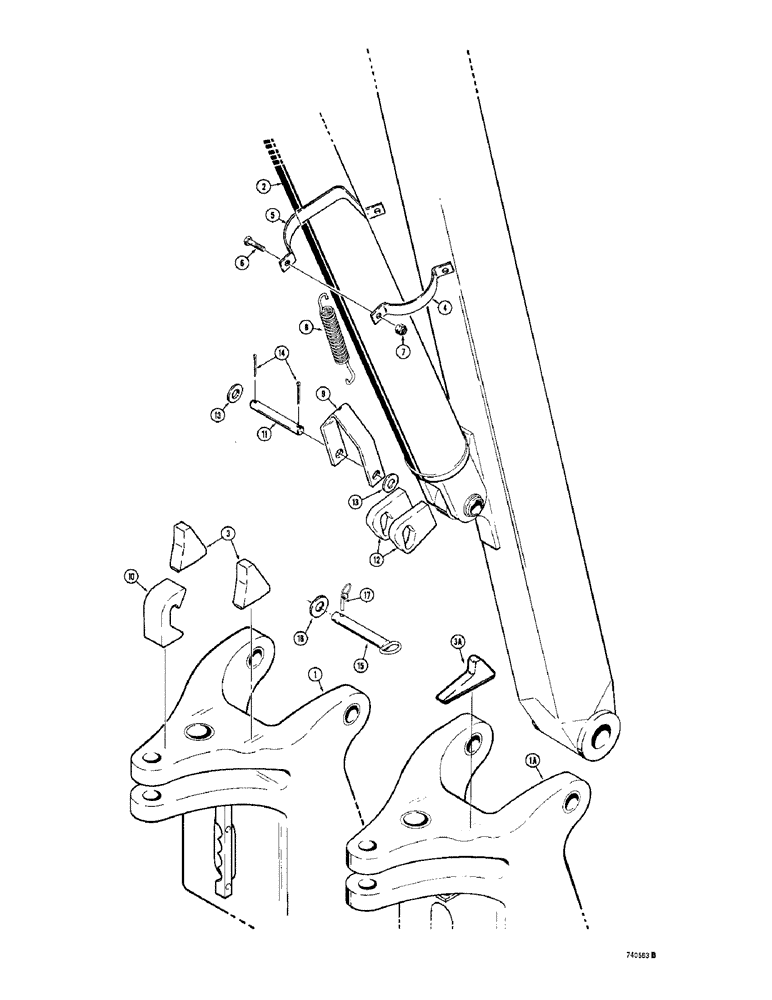

Запчасти Case 780 (530) - BOOM LOCK, MODELS WITH 1-1/4" (32 MM) DIA. BOOM LOCK PIN (09) - CHASSIS/ATTACHMENTS

1

D56425

CASING

TOWER - swing, see Figure 478 for bushings, used before tractor S/N 5502097

1шт.

1a

D76138

CASING

TOWER - swing, see Figure 478 for bushings, used on tractor S/N 5502097 and after

1шт.

2

REF

INSTRUCTION

CYLINDER - dipper, parts list Figure 436 or 438

1шт.

3

D57525

SPARE PART Boom lock, used before tractor S/N 5502097

2шт.

3a

D75399

LOCK

EAR - boom lock, S/N 5502097 and after

1шт.

4

D63837

SPARE PART Spring to dipper cylinder, LH

1шт.

5

D63836

CLAMP

Spring to dipper cylinder, RH

1шт.

6

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

7

131-6

LOCK NUT,3/8"-16, GC

Hex

2шт.

8

D63988

SPRING

Boom lock

1шт.

9

D61735

BRACKET

ACTUATOR - boom lock

1шт.

D17675

LOCK

KIT - boom lock, Includes: Ref. 10 - 14

1шт.

10

D61737

HOOK

Boom lock

1шт.

11

D61734

PIN

Boom lock, 1-1/4" (32 mm) dia.

1шт.

12

D61736

GUIDE

Pin lock

2шт.

13

196-2121

WASHER - flat, 1-1/4"

2шт.

14

132-199

SPLIT PIN,3/8" x 1 3/4"

2шт.

15

L40880

PIN

Boom lock, mechanical

1шт.

16

195-53

WASHER,1" x 2" x .134"

Boom pin lock

1шт.

17

A30338

PIN

Click

1шт.
