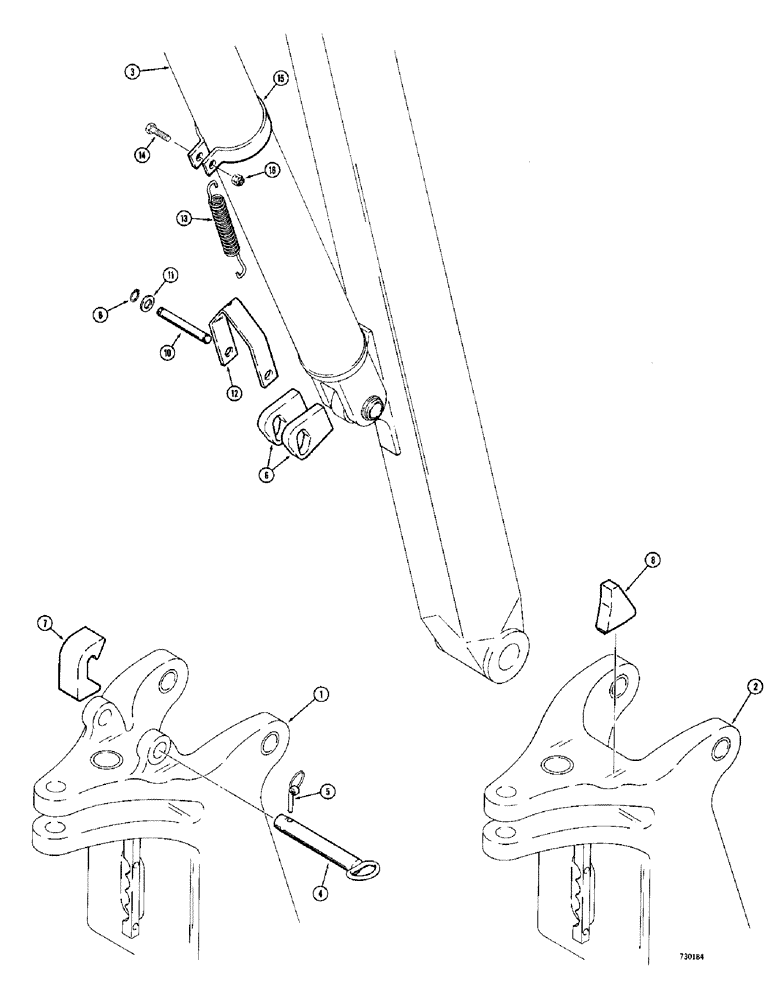

Запчасти Case 780 (528) - BOOM LOCK, MODELS WITH 1" (25 MM) DIA. BOOM LOCK PIN (09) - CHASSIS/ATTACHMENTS

1

L44254

CASING

TOWER - swing, see Figure 478 for bushing, identified by cast ears for transport lock pin, order D56425

1шт.

2

D56425

CASING

TOWER - swing, see Figure 478 for bushings identified by welded lock ears for transport lock pin

1шт.

When replacing D56425 swing tower, also order (2) D57255 lock ears, which are not included with swing tower.

1шт.

3

REF

INSTRUCTION

CYLINDER - dipper, parts list Figure 436 or 438

1шт.

4

L40880

PIN

- locking, boom

1шт.

5

A30338

PIN

- lock

1шт.

6

D54415

GUIDE

- pin lock, welded to dipper cylinder, order D17675 kit, see Figure 530

2шт.

7

D54414

HOOK

- pin, lock, welded to swing tower, used with L44254 and D56425 towers, order D17675 kit, see Figure 530

2шт.

8

D57525

EAR - lock, welded to swing tower, used with D56425 swing only

2шт.

9

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

RING - pin retaining

2шт.

10

D53778

PIN - boom lock, 1" (25 mm) dia. used with L44254 swing tower only

1шт.

10

D53175

PIN

- boom lock, 1" (25 mm) dia, used with D56425 swing tower only

1шт.

11

D63779

WASHER - spacer, used with D53175 pin only

2шт.

12

D54413

ACTUATOR

BRACKET - lock, Serial Range: pin-spring

1шт.

13

D63988

SPRING

- lock pin

1шт.

14

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

15

L46611

CLAMP

- spring to dipper cylinder

1шт.

16

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, self lock, 3/8" - 16 NC

1шт.
