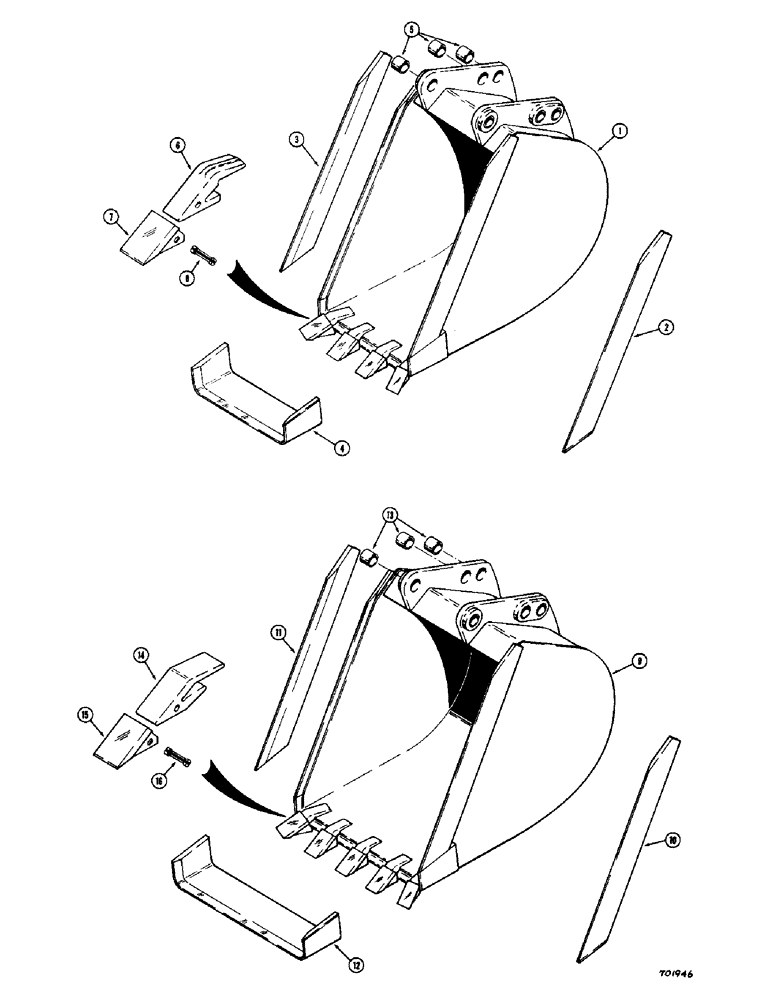

Запчасти Case 780 (524) - BACKHOE BUCKETS, 30" (762 MM) TRENCHING BUCKET (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
9
L41431
BUCKET - 30 inch (762 mm) machinery item - see Figure 2 for ordering, Includes: Ref. 10 - 16
1шт.
10
L41444
BLADE - cutting, R.H. side
1шт.
11
L41445
BLADE - cutting, L.H. side
1шт.
12
L41436
BLADE - cutting, center
1шт.
13
D30756
BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L
- ear
6шт.
L43255
TOOTH
ASSEMBLY - bucket, Includes: Ref. 14- 16
5шт.
14
NSS
NOT SOLD SEPARAT
SHANK - tooth
1шт.
15
L32089
POINT
- tooth
1шт.
16
L32090
PIN
FLEX PIN - point
1шт.
9
L42621
BUCKET - trenching, 36 inch (914 mm) machinery item - see Figure 2 for ordering, Includes: Ref. 10 - 16
1шт.
10
L47332
BLADE - cutting, R.H. side, 36 " trenching bucket
1шт.
11
L47331
BLADE - cutting, L.H. side, 36 " trenching bucket
1шт.
13
D30756
BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L
ear, 36 " trenching bucket
6шт.
L43255
TOOTH
ASSEMBLY - bucket, 36 " trenching bucket, Includes: Ref. 14 - 16
5шт.
14
NSS
NOT SOLD SEPARAT
SHANK - tooth, 36 " trenching bucket
1шт.
15
L32089
POINT
tooth, 36 " trenching bucket
1шт.
16
L32090
PIN
FLEX PIN - 36 " trenching bucket
1шт.
9
D53366
BUCKET - 42 inch (1067 mm) machinery item - see Figure 2 for ordering, Includes: Ref. 10 - 16
1шт.
10
D53355
BLADE - cutting, R.H. side, 42" trenching bucket
1шт.
11
D53354
BLADE - cutting, L.H.side, 42" trenching bucket
1шт.
12
D53356
BLADE - cutting, center, 42" trenching bucket
1шт.
13
D30756
BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L
gear, 42" trenching bucket
6шт.
L43255
TOOTH
ASSEMBLY - 42" trenching bucket, Includes: Ref. 14 - 16
5шт.
14
NSS
NOT SOLD SEPARAT
SHANK - tooth, 42" trenching bucket
1шт.
15
L32089
POINT
tooth, 42" trenching bucket
1шт.
16
L32090
PIN
FLEX PIN - point 42" trenching bucket
1шт.
D55468
TOOTH
tooth, heavy duty, option to L32089 point above, 42" trenching bucket
1шт.
D59702
TOOTH
POINT - star type, option to L32089 point above, 42" trenching bucket
1шт.
Выбрано товаров: 29
