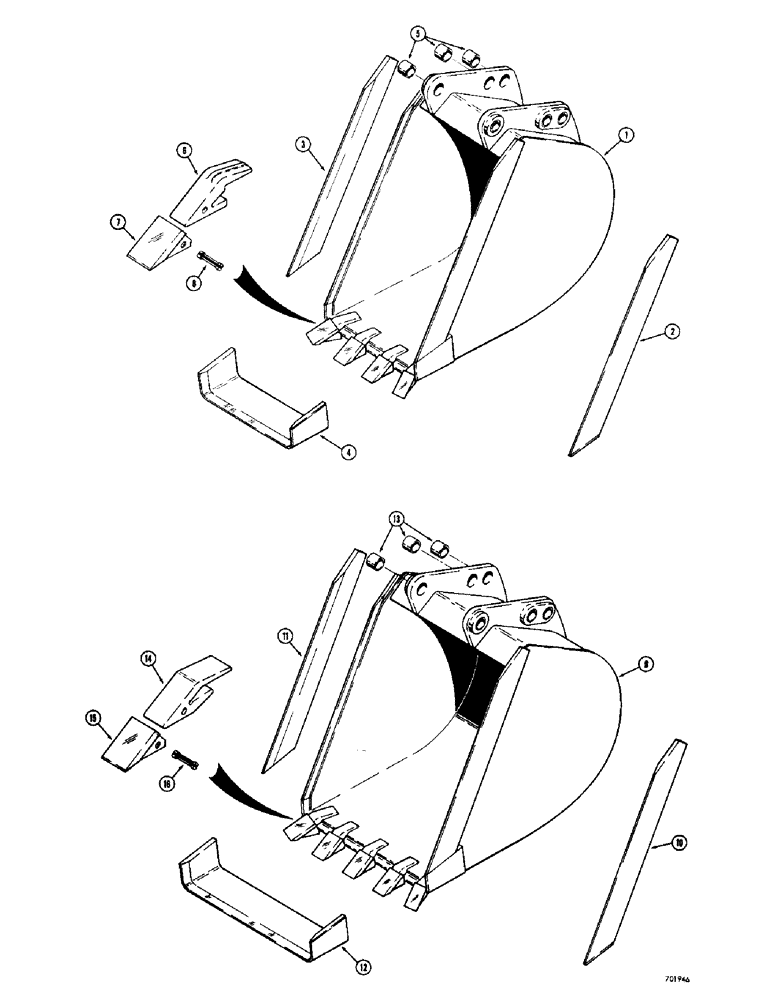

Запчасти Case 780 (522) - BACKHOE BUCKETS, 19 INCH (330 MM) TRENCHING BUCKET, 24" (620MM) TRENCHING BUCKET (09) - CHASSIS/ATTACHMENTS

1

L42523

BUCKET - 19 inch (330 mm) machinery item - see Figure 2 for ordering, Includes: Ref. 2 - 8

1шт.

2

L41444

BLADE - cutting, R.H. side

1шт.

3

L41445

BLADE - cutting, L.H. side

1шт.

4

L42506

EDGE

BLADE - cutting, center, 3/4" (19 mm) thick for service order (1) D16477 kit which includes (1) D54979 cutting blade and (4) L43255 tooth assemblies

1шт.

4

D54979

EDGE

BLADE - cutting, center, 1" (25 mm) thick, if used

1шт.

Part of Blade and Teeth Kit, P/N D16477

1шт.

5

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

- ear

6шт.

L43266

TOOTH

ASSEMBLY - bucket, used with 3/4" (19 mm) thick cutting blade, Includes: Ref. 6 - 8

4шт.

6

NSS

NOT SOLD SEPARAT

SHANK - tooth

1шт.

7

D39093

TOOTH

POINT - tooth

1шт.

8

D39094

BUCKET TOOTH KEY

FLEX PIN - point

1шт.

L43255

TOOTH

ASSEMBLY - bucket, used with 1" (25 mm) thick cutting blade, Includes: Ref. 6 - 8

4шт.

Part of Blade and Teeth Kit, P/N D16477

1шт.

6

NSS

NOT SOLD SEPARAT

SHANK - tooth

1шт.

7

L32089

POINT

- tooth, see D55468 and D59702

1шт.

8

L32090

PIN

FLEX PIN - point

1шт.

9

L47847

BUCKET - 24 inch (620 mm) machinery item - see Figure 2 for ordering, Includes: Ref. 10 - 15

1шт.

10

L41444

BLADE - cutting, R.H. side

1шт.

11

L41445

BLADE - cutting, L.H. side

1шт.

12

L41449

BLADE - cutting, center

1шт.

L43255

TOOTH

ASSEMBLY - bucket, Includes: Ref. 14 - 16

4шт.

14

NSS

NOT SOLD SEPARAT

SHANK - tooth

1шт.

15

L32089

POINT

- tooth, see D55468 and D59702

1шт.

16

L32090

PIN

FLEX PIN - point

1шт.

D16477

EDGE

KIT - blade and teeth, service replacement for L42506 blade, Includes: Ref. 4 and P/N L43255

1шт.

D55468

TOOTH

- heavy duty tooth, option to L32089 point above

1шт.

D59702

TOOTH

POINT - tooth, star type, option to L32089 point above

1шт.
