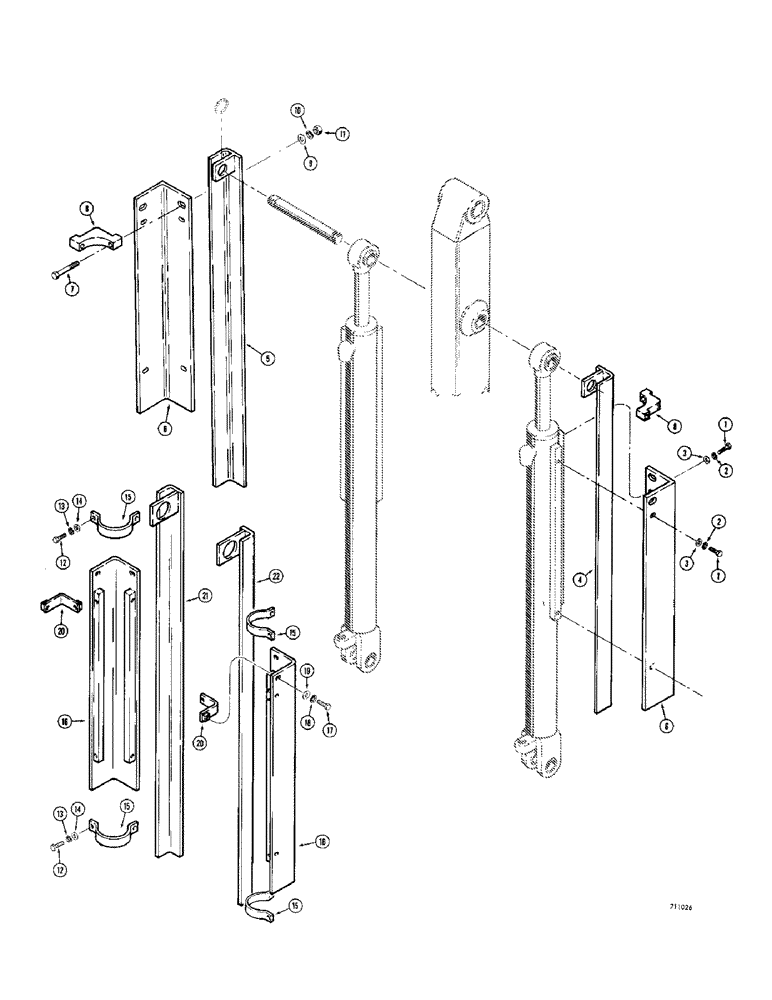

Запчасти Case 780 (520) - BOOM CYLINDER GUARDS, USED WITH G32442 AND G32443 CYLINDERS, (09) - CHASSIS/ATTACHMENTS

1

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

2

92-6

LOCK WASHER,3/8"

8шт.

3

95-6

WASHER,3/8"

- flat, 3/8"

8шт.

4

L47097

GUARD - inner, R.H.

1шт.

5

L47096

GUARD - inner, L.H.

1шт.

6

L47094

GUARD - cylinder

2шт.

7

13-736

BOLT,Hex, 7/16" - 14 x 2-1/4", Gr 5

- hex, 7/16" - 14 NC x 2-1/4"

4шт.

8

L48582

GUIDE - cylinder guard

2шт.

9

95-7

WASHER,7/16"

- flat, 7/16"

4шт.

10

92-7

LOCK WASHER,7/16"

4шт.

11

25-107

NUT,7/16"-14, G5

- hex, 7/16" - 14 NC

4шт.

12

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

13

92-8

LOCK WASHER,1/2"

8шт.

14

195-33

WASHER,1/2"

- flat, 1/2"

8шт.

15

D54641

CLAMP - outer, Serial Range: guard-cylinder

4шт.

16

D54640

GUARD - cylinder, outer

2шт.

17

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

18

92-6

LOCK WASHER,3/8"

4шт.

19

195-25

WASHER,3/8"

- flat, 3/8"

4шт.

20

D54643

GUIDE - cylinder guard

2шт.

21

D54636

GUARD - cylinder, L.H. inner

1шт.

22

D54637

GUARD - cylinder, R.H. inner

1шт.
