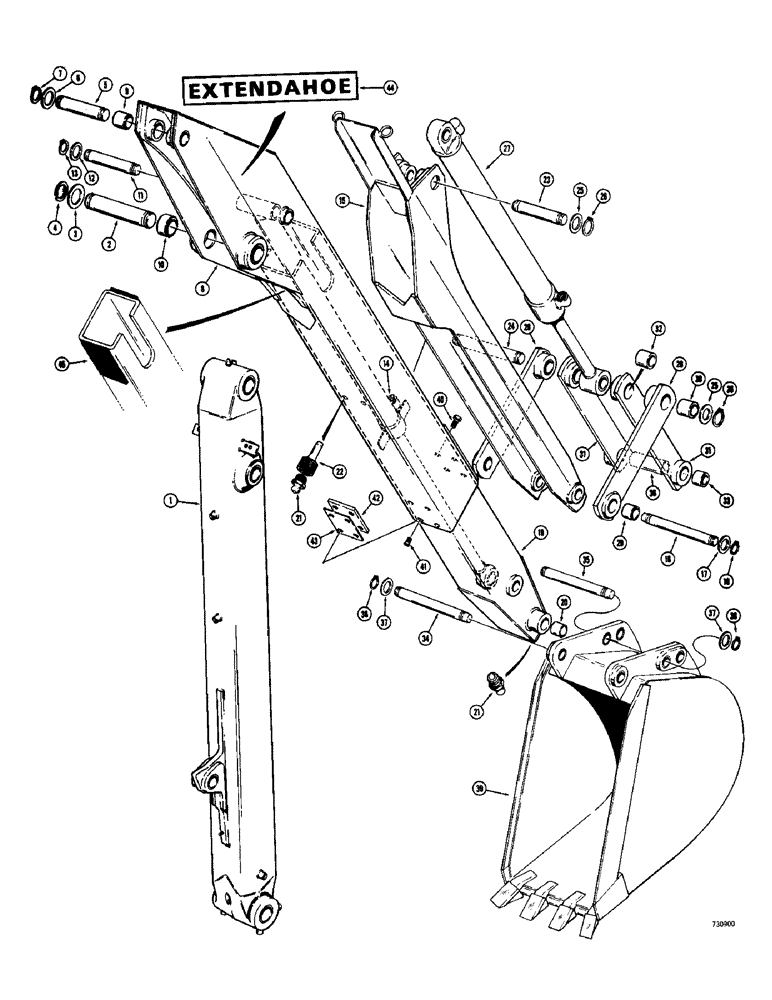

Запчасти Case 780 (516) - BACKHOE EXTENDABLE DIPPER (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

BOOM - backhoe, see Figure 512 for bushings and related parts

1шт.

2

L42697

PIN

Boom to outer dipper housing

1шт.

3

L45858

SHIM

Washer, .060 (1.52 mm)

1шт.

4

L45913

RING, SNAP

RING SNAP Pin retaining

2шт.

5

L42695

PIN

Dipper cylinder to outer dipper housing

1шт.

6

L41507

SHIM

WASHER - special

2шт.

7

A60216

SNAP RING,#250, Ext

Pin

2шт.

8

D57535

SPARE PART Dipper, outer, Includes: Ref. 9 and 10

1шт.

9

D49312

BUSHING

SPARE PART Pivot, dipper cylinder

2шт.

10

D57646

SPARE PART Pivot, boom to outer dipper

2шт.

11

D37609

PIN

Extension cylinder to outer dipper housing

1шт.

12

195-2155

WASHER,2 1/16" x 3" x .109"

2шт.

13

D26919

SNAP RING,#200, Ext

Pin

2шт.

14

REF

INSTRUCTION

CYLINDER - dipper extension, see Figures 446 - 450

1шт.

15

D57534

SPARE PART Extension, bucket cylinder

1шт.

16

L42746

PIN

Extension arm and bucket guide link to inner dipper

1шт.

17

L47721

WASHER

Special

2шт.

18

D26919

SNAP RING,#200, Ext

Pin

2шт.

19

D78185

EXTENSION

Dipper, inner, Includes: Ref. 20

1шт.

20

D40050

BUSHING,51.03mm ID x 60.33mm OD x 50.8mm L

Pivot, backhoe bucket

2шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Straight, 1/8" NPT

2шт.

22

219-107

NOZZLE CAP

Grease fitting

1шт.

23

D95372

SPARE PART Extension arm to bucket cylinder, closed end, pin - This pin is 2.25" x 11.4".

1шт.

D95372 extension arm to bucket cyl.

1шт.

24

D95371

PIN

Bucket links to bucket cylinder, rod end, This pin is 2.25" x 15.2".

1шт.

D95371 bucket links to bucket cyl. pin

1шт.

25

L47706

WASHER

Special

4шт.

26

F40807

SNAP RING,#225, Ext

Pin

4шт.

27

REF

INSTRUCTION

CYLINDER - hydraulic, bucket, parts list Figure 442 and 444

1шт.

28

D55244

SPARE PART Cylinder guide, Includes: Ref. 29 and 30

2шт.

29

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

At extension arm, 2" (51 mm) I.D.

1шт.

30

D53823

BUSHING

At bucket cylinder, rod end, 2.25" (57 mm) I.D.

1шт.

31

D55240

SPARE PART Bucket dump, Includes: Ref. 32 and 33

2шт.

32

L45223

BUSHING

At bucket cylinder, rod end, 2.25" (57 mm) I.D.

1шт.

33

D43508

BUSHING

At bucket ear, 2" (51 mm) I.D.

1шт.

34

L42746

PIN

Inner dipper extension to bucket ear, bucket ears pin - This pin is 16.65" long.

1шт.

L42746 innner dipper extension to

1шт.

35

L42747

PIN

Bucket links to bucket ears, This pin is 15.40" long.

1шт.

L42747 bucket links to bucket ears pin

1шт.

36

L41377

SPACER

Bucket links

1шт.

37

L47721

WASHER

Special

4шт.

38

D36919

RING - pin retaining

4шт.

39

REF

INSTRUCTION

BUCKET - backhoe, see Figures 522-526 for options

1шт.

40

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

41

164-70

SCREW,Flat Hd, 1/2" - 13 x 3/4"

4шт.

42

D59248

PLATE

Wear, front

2шт.

43

D59259

SHIM,.035" Thk

Wear plate (0.86 mm)

1шт.

44

321-2058

DECAL

"Extendahoe"

2шт.

45

D59249

SPARE PART Wear, rear, welded to inner dipper extension

2шт.
