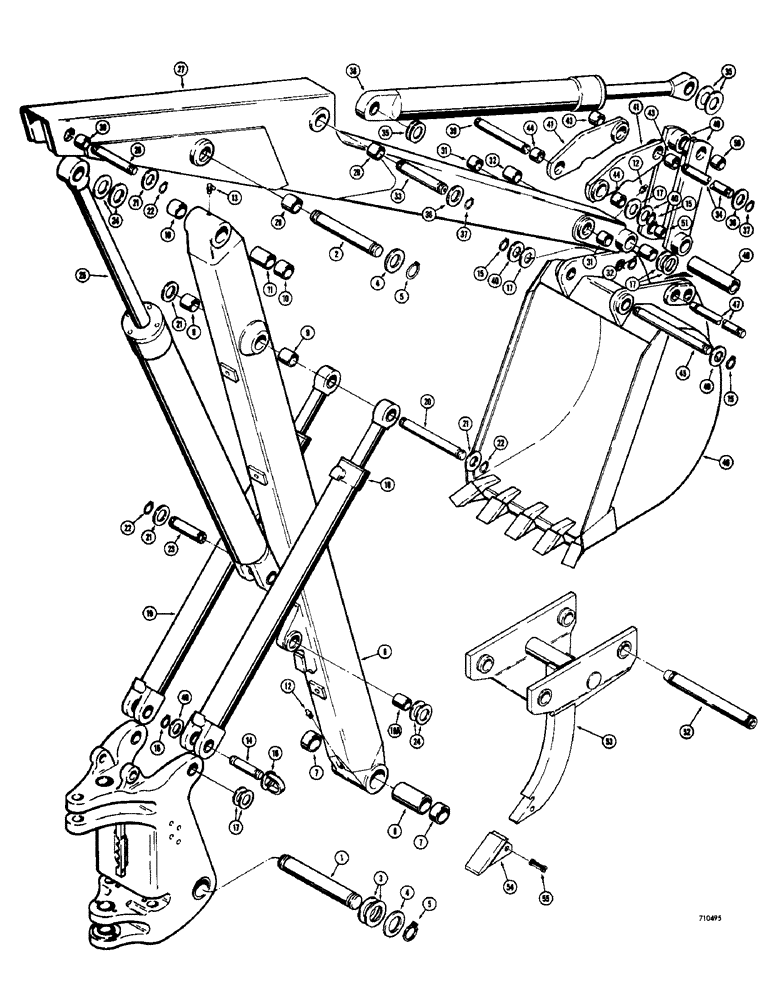

Запчасти Case 780 (508) - BOOM, DIPPER ARM AND BUCKET, BEFORE TRACTOR SN. 5500550 (09) - CHASSIS/ATTACHMENTS

1

PPL42698

PIN - boom to swing tower

1шт.

2

L42697

PIN

, Serial Range: Boom-dipper

1шт.

3

L45858

SHIM

3/64" (1.19 mm) thick

1шт.

4

L46020

WASHER

Special

4шт.

5

L45913

RING, SNAP

RING SNAP

4шт.

6

D76475

BOOM

Backhoe, Includes Ref. 7 - 11

1шт.

7

L41235

BUSHING

Boom pivot

1шт.

8

L41242

SPACER

Bushing

1шт.

9

D33616

BUSHING

Boom cylinder pivot

2шт.

10

L41235

BUSHING

Dipper pivot

2шт.

10a

R27011

BUSHING,63.75mm ID x 76.2mm OD x 63.5mm L

Dipper cylinder pivot

1шт.

11

L41220

SPACER

Bushing

1шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Straight, 1/8" NPT

2шт.

13

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

14

L42711

PIN

SPARE PART Boom cylinder to swing tower

2шт.

15

D26919

SNAP RING,#200, Ext

10шт.

16

L46325

SPARE PART WASHER - special, hose support

2шт.

17

L45895

SHIM

3/16" (4.77 mm) thick

1шт.

18

REF

INSTRUCTION

CYLINDER - boom, RH, see Figures 428 to 434 for cylinders

1шт.

19

REF

INSTRUCTION

CYLINDER - boom, LH, see Figures 428 to 434 for cylinders

1шт.

20

L42694

PIN

Boom, Serial Range: cylinder-boom

1шт.

21

L41507

SHIM

WASHER - special

6шт.

22

A60216

SNAP RING,#250, Ext

6шт.

23

L46675

PIN

SPARE PART Dipper, Serial Range: cylinder-boom

1шт.

24

L45897

SHIM

3/16" (4.77 mm) thick

1шт.

25

G32757

SPARE PART Dipper, parts list Figures 436 and 438

1шт.

26

L42695

PIN

Dipper, Serial Range: cylinder-dipper

1шт.

27

L41424

SPARE PART ARM - backhoe, see Figure 518 for reinforcement kit, Includes Ref. 28 - 32

1шт.

28

L41430

BUSHING

Dipper arm pivot

2шт.

29

L47689

PIPE

BUSHING - bucket cylinder pivot 3" (76 mm) long, if used

2шт.

29

D53823

BUSHING

Bucket cylinder pivot 2-3/4" (70 mm) long, if used

2шт.

30

D33635

BUSHING,63.75mm ID x 76.2mm OD x 25.4mm L

Dipper cylinder pivot

2шт.

31

L47751

BUSHING

Bucket and cylinder linkage pivot

2шт.

artwork are reversed. Ref. 31 is actually D31142 bucket pivot bushing and Ref. 32 is actually L47751 bucket and cylinder linkage pivot bushing.

1шт.

Ref. 31 and 32 bushings - Reference nbrs on

1шт.

32

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

Bucket pivot

2шт.

33

L42708

SPARE PART Dipper to bucket cylinder

1шт.

34

L42709

PIN

Bucket cylinder to bucket linkage, pin - This pin is 12.8" long.

1шт.

L42709 bucket cyl to bucket linkage

1шт.

35

L45896

SHIM

3/16" (4.77 mm) thick

1шт.

36

L47706

WASHER

Special

4шт.

37

F40807

SNAP RING,#225, Ext

4шт.

38

REF

INSTRUCTION

CYLINDER - bucket, see Figure 440 for proper cylinder

1шт.

39

L42712

PIN

Dipper arm to bucket linkage

1шт.

40

L47721

WASHER

Special

8шт.

41

L41416

LINK

Dipper arm to cylinder, LH and RH

2шт.

42

RESERVED, Includes Ref. 43 and 44

1шт.

43

L45223

BUSHING

Links, cylinder pivot

1шт.

44

D43508

BUSHING

Links, dipper pivot

1шт.

45

L42746

PIN

Dipper arm to bucket, pin is 16.65" long.

1шт.

L42746 dipper arm to bucket pin - This

1шт.

46

REF

INSTRUCTION

BUCKET - backhoe, see Figures 522-526 for options

1шт.

47

L42747

PIN

Bucket to links, not used with frost point, 15.40" long.

1шт.

L42747 bucket to links pin - This pin is

1шт.

48

L41377

SPACER

Bucket links

1шт.

49

L41413

SPARE PART Cylinder to bucket, Includes Ref. 50 and 51

2шт.

50

L45223

BUSHING

Cylinder pivot

1шт.

51

D43508

BUSHING

Bucket pivot

1шт.

52

L42746

PIN

Frost point to bucket links

1шт.

L48031

SPARE PART FROST POINT ASSEMBLY - backhoe, Includes Ref. 53 - 55

1шт.

53

NSS

NOT SOLD SEPARAT

BODY - frost point

1шт.

54

L33612

POINT

Tooth

1шт.

55

L33611

BUCKET TOOTH KEY

FLEX PIN - point

1шт.
