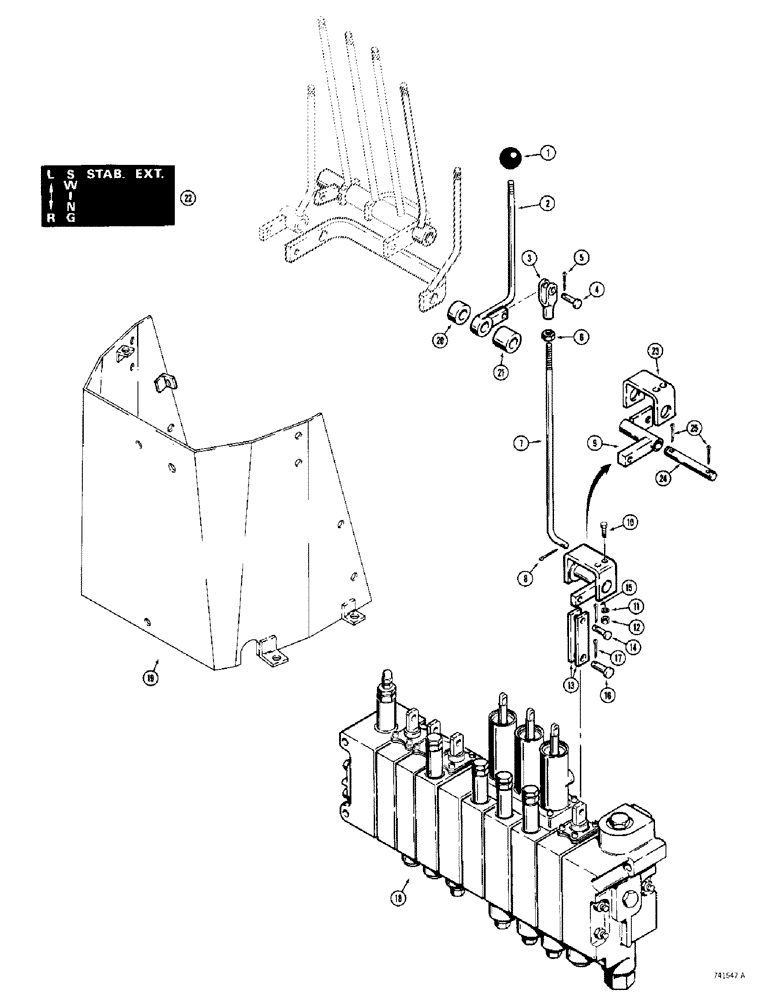

Запчасти Case 780 (506) - BACKHOE EXTENDABLE DIPPER CONTROL, USED ON MODELS WITH SINGLE BACKHOE CONTROL TWR (09) - CHASSIS/ATTACHMENTS

1

D59912

KNOB

Control lever

1шт.

2

D63680

LEVER

HANDLE - extendahoe dipper control

1шт.

3

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - control rod, 3/8"

1шт.

4

141-4

CLEVIS PIN,3/8" x 1.060"

1шт.

5

132-25

COTTER PIN,3/32" x 5/8"

1шт.

6

25-116

NUT,Hex, 3/8"-24, G5

Hex, 3/8"-20 NF

1шт.

7

D63713

SPARE PART Control, extendahoe dipper control

1шт.

8

132-25

COTTER PIN,3/32" x 5/8"

1шт.

9

D63722

SPARE PART Extendahoe dipper control

1шт.

10

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

12

25-106

NUT,3/8"-16, G5

2шт.

13

D63723

SPARE PART Linkage to control valve

2шт.

14

141-12

CLEVIS PIN,3/8" x 1 5/16"

Yoke

1шт.

15

132-25

COTTER PIN,3/32" x 5/8"

1шт.

16

141-6

CLEVIS PIN,1/2" x 1.360"

Yoke

1шт.

17

132-46

COTTER PIN,1/8" x 3/4"

1шт.

18

D56561

SPARE PART Backhoe control, parts list Figure 362

1шт.

19

REF

INSTRUCTION

CONSOLE - backhoe control, see Figure 490 for related parts and remaining backhoe controls

1шт.

20

D95533

SPACER

Used with twin lever controls only, see Figure 496 for related parts

1шт.

21

D95535

SPARE PART Used with twin lever controls only, see Figure 496 for related parts

1шт.

22

321-2791

SPARE PART Optional controls

1шт.

23

D63721

SPARE PART Bellcrank

1шт.

24

D63720

SHAFT

Bellcrank

1шт.

25

132-48

COTTER PIN,1/8" x 1"

2шт.
