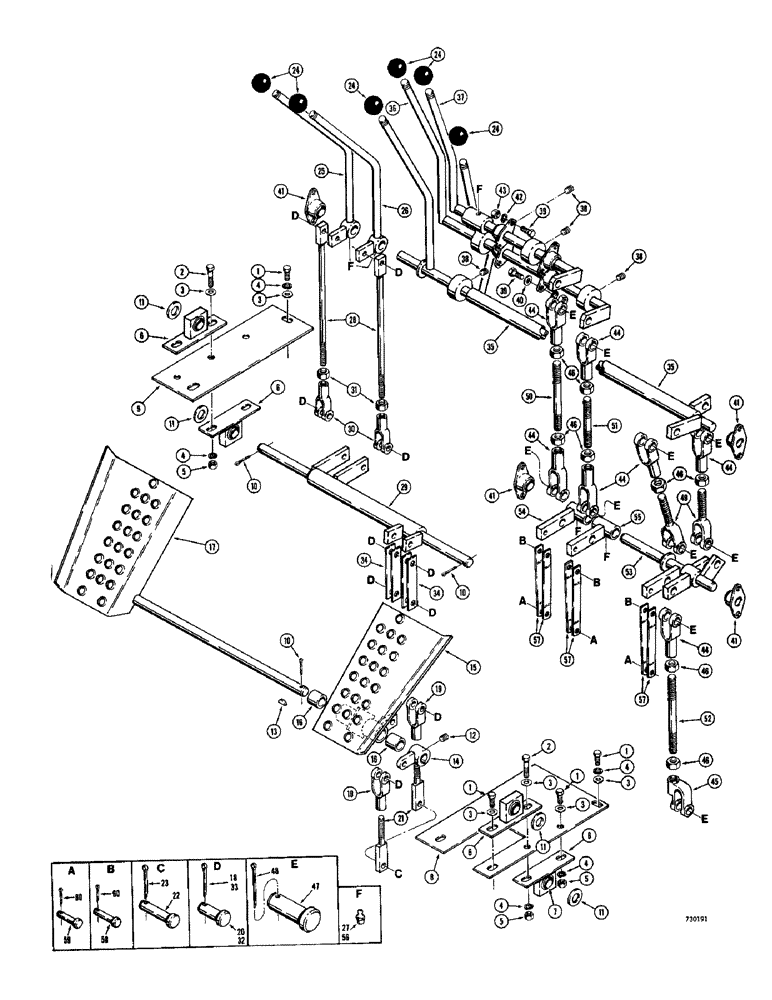

Запчасти Case 780 (502) - BACKHOE CONTROLS, USED ON EXTENDAHOE MODELS ONLY, USED ON MODELS W/ TWIN BACKHOE CONTROL TWR (09) - CHASSIS/ATTACHMENTS

1

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

2

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

3

95-6

WASHER,3/8"

- flat, 3/8"

14шт.

4

92-6

LOCK WASHER,3/8"

10шт.

5

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

6шт.

6

L45998

SUPPORT ASSEMBLY - swing pedals and stabilizer cross shaft, Includes: Ref. 7

4шт.

7

G32321

BUSHING,19.04mm ID x 31.75mm OD x 16.66mm L

BEARING - self-aligning

1шт.

8

L48398

FLOOR PLATE - console area, R.H.

1шт.

9

L48415

FLOOR PLATE - console area, L.H.

1шт.

10

132-49

COTTER PIN,1/8" x 1 1/8"

Pin, Split (Cotter), 1/8" x 1 1/8"

3шт.

11

195-2087

WASHER,0.81" ID x 1.12" OD x 0.15" Thk

- flat, 13/16"

4шт.

12

178-26

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

SCREW - set, hex socket head, 1/4" - 20 NC x 3/8"

1шт.

13

126-13

WOODRUFF KEY,#61, 3/16" x 5/8"

1шт.

14

L46000

LEVER - swing control, L.H.

1шт.

15

L45502

SWING PEDAL - R.H., Includes: Ref. 16

1шт.

16

L18619

BUSHING - swing pedal

2шт.

17

L45501

SWING PEDAL AND SHAFT - L.H.

1шт.

18

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

19

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - swing pedal linkage

2шт.

20

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

2шт.

21

L45496

LINK - connecting, swing pedal linkage

2шт.

22

L45503

PIN - link to valve swing section

1шт.

23

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

24

D59912

KNOB

BALL - control levers

6шт.

25

D56530

LEVER - stabilizer control, L.H.

1шт.

26

D56533

LEVER - stabilizer control, R.H.

1шт.

27

219-411

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16" drive

3шт.

28

D56541

ROD - stabilizer control

2шт.

29

D56544

SHAFT - stabilizer control, lower

1шт.

30

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - rod end, 3/8"

2шт.

31

25-116

NUT,Hex, 3/8"-24, G5

2шт.

32

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

8шт.

33

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

8шт.

34

L48452

LINK - control, Serial Range: shaft-valve

4шт.

35

D56547

LEVER ASSEMBLY - control, bucket and dipper extension

1шт.

36

L48451

LEVER - control, dipper

1шт.

37

D56552

LEVER - control, boom

1шт.

38

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket head, 3/8" - 16 NC x 3/8"

4шт.

39

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

8шт.

40

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

41

L48412

FLANGED BEARING

SUPPORT ASSEMBLY - bearing type

4шт.

42

92-6

LOCK WASHER,3/8"

8шт.

43

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

8шт.

44

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

YOKE - rod end, 1/2"

7шт.

45

L11174

YOKE - off set, 1/2"

1шт.

46

25-158

JAM NUT,Jam, 1/2"-20, G5

- hex, 1/2" - 20 NF

8шт.

47

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - yoke, 1/2"

10шт.

48

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

10шт.

49

48626

ROD AND YOKE - upper control, bucket and dipper extension

2шт.

50

L48509

ROD - control, boom

1шт.

51

L48510

ROD - control, dipper

1шт.

52

L23160

ROD - control, dipper extension, lower

1шт.

53

D56538

CONTROL - bucket and dipper extension, lower

1шт.

54

L48507

BELLCRANK - control, boom

1шт.

55

L48506

BELLCRANK - control, dipper

1шт.

56

219-411

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight 3/16" drive

2шт.

57

L48508

LINK - connecting, boom, dipper and bucket

6шт.

58

D50559

CLEVIS,9.53mm OD x 28.32mm L

PIN - link to bellcrank, upper

3шт.

59

141-2

CLEVIS PIN,1/4" x .770"

PIN - link to valve spools, lower

3шт.

60

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

6шт.
