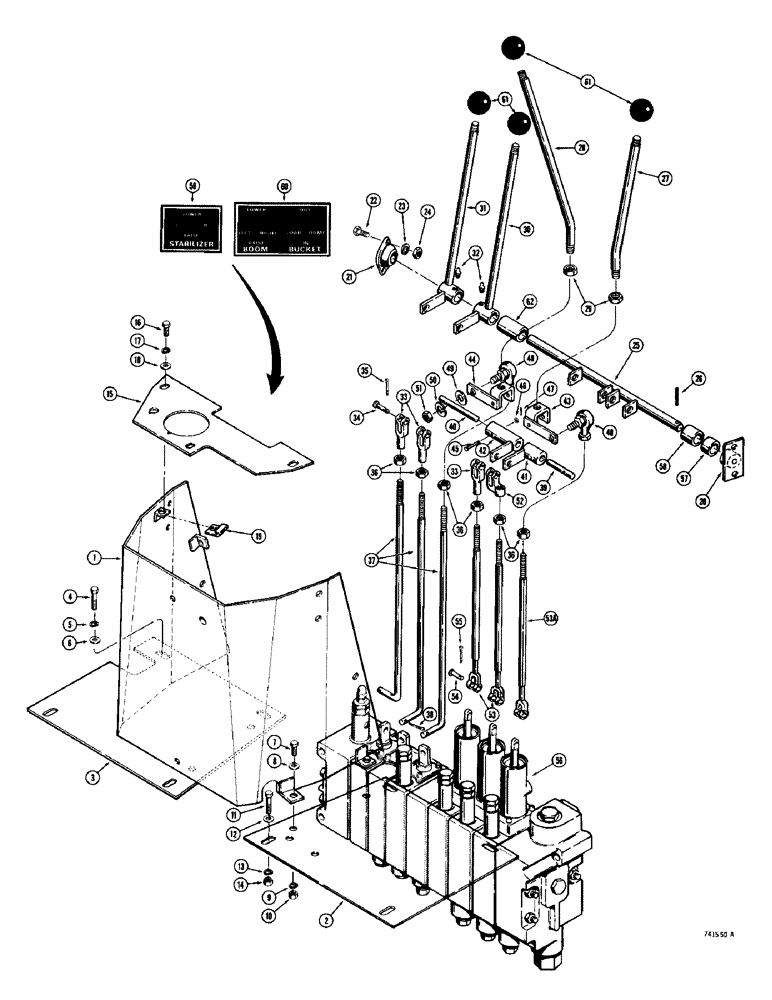

Запчасти Case 780 (496) - TWIN LEVER BACKHOE CONTROLS, USED ON MODELS WITH SINGLE BACKHOE CONTROL TWR (09) - CHASSIS/ATTACHMENTS

1

D63561

CONSOLE

TOWER - backhoe control

1шт.

2

D63695

SPARE PART Side, RH

1шт.

3

D63831

SPARE PART Side, LH

1шт.

4

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Plate mounting

6шт.

5

92-6

LOCK WASHER,3/8"

6шт.

6

195-25

WASHER,3/8"

6шт.

7

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Tower mounting

4шт.

8

195-25

WASHER,3/8"

4шт.

9

92-6

LOCK WASHER,3/8"

4шт.

10

25-106

NUT,3/8"-16, G5

4шт.

11

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

12

195-25

WASHER,3/8"

2шт.

13

92-6

LOCK WASHER,3/8"

2шт.

14

25-106

NUT,3/8"-16, G5

2шт.

15

D63718

LARGE PLATE

PLATE, LARGE Top, models without lockup kit

1шт.

15

D72367

LARGE PLATE

PLATE, LARGE Top, models with lockup kit

1шт.

16

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

17

92-6

LOCK WASHER,3/8"

3шт.

18

195-25

WASHER,3/8"

3шт.

19

131-634

SPRING NUT,J, Ret, 3/8"-16

Speed type

3шт.

20

D63708

SPARE PART Control shaft, RH

1шт.

21

L48412

FLANGED BEARING

Control shaft

1шт.

22

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

23

92-6

LOCK WASHER,3/8"

4шт.

24

25-106

NUT,3/8"-16, G5

4шт.

25

D63699

SPARE PART Backhoe control

1шт.

26

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

1шт.

27

D63717

SPARE PART Control, dipper and bucket

1шт.

28

D63716

LEVER

SPARE PART Control, swing and boom

1шт.

29

25-158

JAM NUT,Jam, 1/2"-20, G5

2шт.

30

D63715

SPARE PART Control, RH, stabilizer

1шт.

31

D63714

SPARE PART Control, LH, stabilizer

1шт.

32

219-4

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

33

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - Rod end, 3/8"

3шт.

34

141-4

CLEVIS PIN,3/8" x 1.060"

4шт.

35

132-25

COTTER PIN,3/32" x 5/8"

4шт.

36

25-116

NUT,Hex, 3/8"-24, G5

6шт.

37

D63612

SPARE PART Control, stabilizer and swing

3шт.

38

132-25

COTTER PIN,3/32" x 5/8"

3шт.

39

D63709

SPARE PART Rocket arm, twin lever control, RH

1шт.

40

D63710

SPARE PART Rocket arm, twin lever control, LH

1шт.

41

D63703

SPARE PART Rocket, twin lever control, RH

1шт.

42

D63704

SPARE PART Rocket, twin lever control, LH

1шт.

43

D63705

YOKE

SPARE PART Rocket linkage, RH

1шт.

44

D63711

SPARE PART Rocket linkage, LH

1шт.

45

141-15

CLEVIS PIN,1/4" x 1.969"

2шт.

46

195-18

WASHER,1/4"

2шт.

47

132-5

COTTER PIN,1/16" x 1/2"

2шт.

48

D40908

BALL JOINT

2шт.

49

195-25

WASHER,3/8"

2шт.

50

92-6

LOCK WASHER,3/8"

2шт.

51

25-116

NUT,Hex, 3/8"-24, G5

2шт.

52

L11182

YOKE,3/8" - 24

UNIVERSAL JOINT YOKE Offset

1шт.

53

D58335

SPARE PART Control, dipper and boom

2шт.

53a

D76167

SPARE PART Control, bucket

1шт.

54

141-2

CLEVIS PIN,1/4" x .770"

Yoke

3шт.

55

132-5

COTTER PIN,1/16" x 1/2"

3шт.

56

REF

INSTRUCTION

VALVE - backhoe control, see Figures 358 - 362 for proper valve

1шт.

57

D95533

SPACER

Used with dipper extension controls, see Figure 506 for related parts

1шт.

58

D95535

SPARE PART Used with dipper extension controls, see Figure 506 for related parts

1шт.

59

321-2792

DECAL

Stabilizer control

1шт.

60

321-2793

DECAL

Dual lever control

1шт.

61

D59912

KNOB

Lever

4шт.

62

D95537

SPARE PART Used with twin lever controls

1шт.
