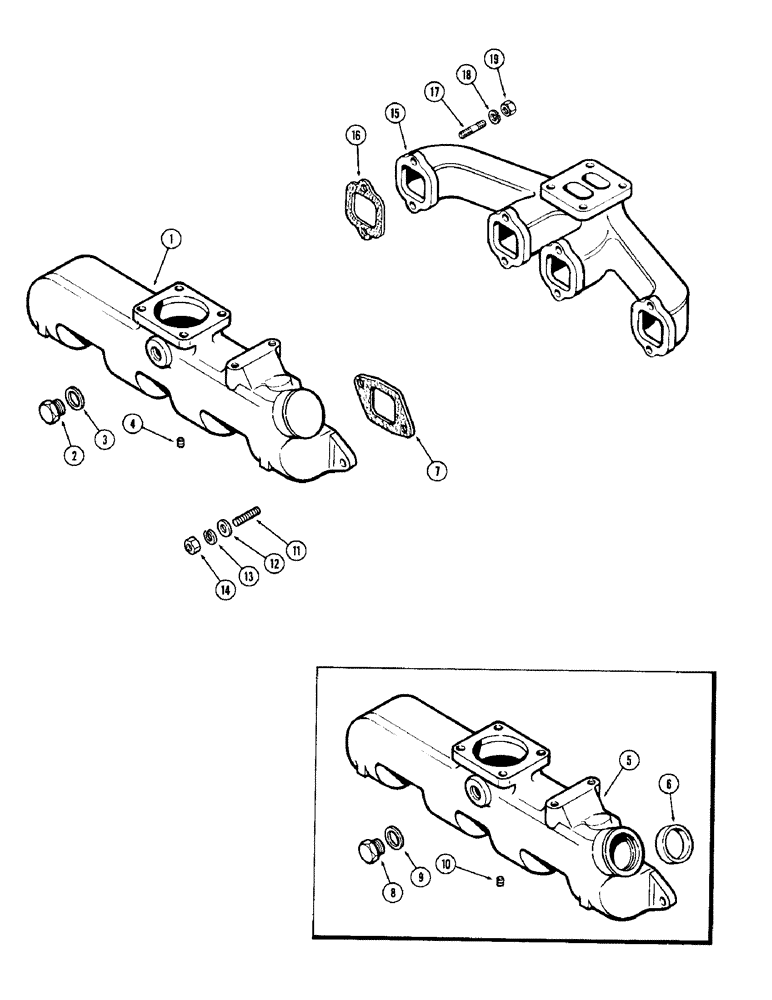

Запчасти Case 780 (032) - MANIFOLDS, 336BDT TURBOCHARGED ENGINES, INTAKE MANIFOLD (02) - ENGINE

1

A154149

MANIFOLD

intake (Aluminum) (Engine serial no. 2575274 and after), Includes: Ref. 2 - 4

1шт.

2

L10283

PLUG

intake manifold heater hole

1шт.

3

A20916

MANIFOLD GASKET

heater hole plug

1шт.

4

221-1849

PLUG

1/8" PT hex socket head

1шт.

5

A59225

MANIFOLD

ASSEMBLY - intake (Cast iron) (Order A154149) (Prior to engine serial no. 2575274), Includes: Ref. 6

1шт.

6

41-1042

PLUG,Cup, 2 5/8"

2-3/8" cup type (60.32 mm)

1шт.

7

A58662

MANIFOLD GASKET

intake manifold

4шт.

8

A20917

PLUG

intake manifold heater hole (Used with A59225)

1шт.

9

A20916

MANIFOLD GASKET

heater hole plug (Used with A59225)

1шт.

10

221-1849

PLUG

1/8" PT, hex socket head (Used with A59225)

1шт.

11

A59077

STUD

3/8" NC x 1-3/4"

8шт.

12

195-25

WASHER,3/8"

3/8 x 13/16 x 1/16" (Used with A154149 manifold)

8шт.

13

92-6

LOCK WASHER,3/8"

8шт.

14

25-166

NUT,3/8"-16, G5, Hvy

3/8" NC hex

8шт.

15

A61001

MANIFOLD

exhaust

1шт.

16

A58895

GASKET

exhaust manifold (Metal faced)

4шт.

17

A59077

STUD

3/8" NC x 1-3/4", exhaust manifold

8шт.

18

92-6

LOCK WASHER,3/8"

exhaust manifold 3/8"

8шт.

19

131-903

NUT,3/8"-16

3/8" NC hex, Seez-Pruf, exhaust manifold

8шт.
