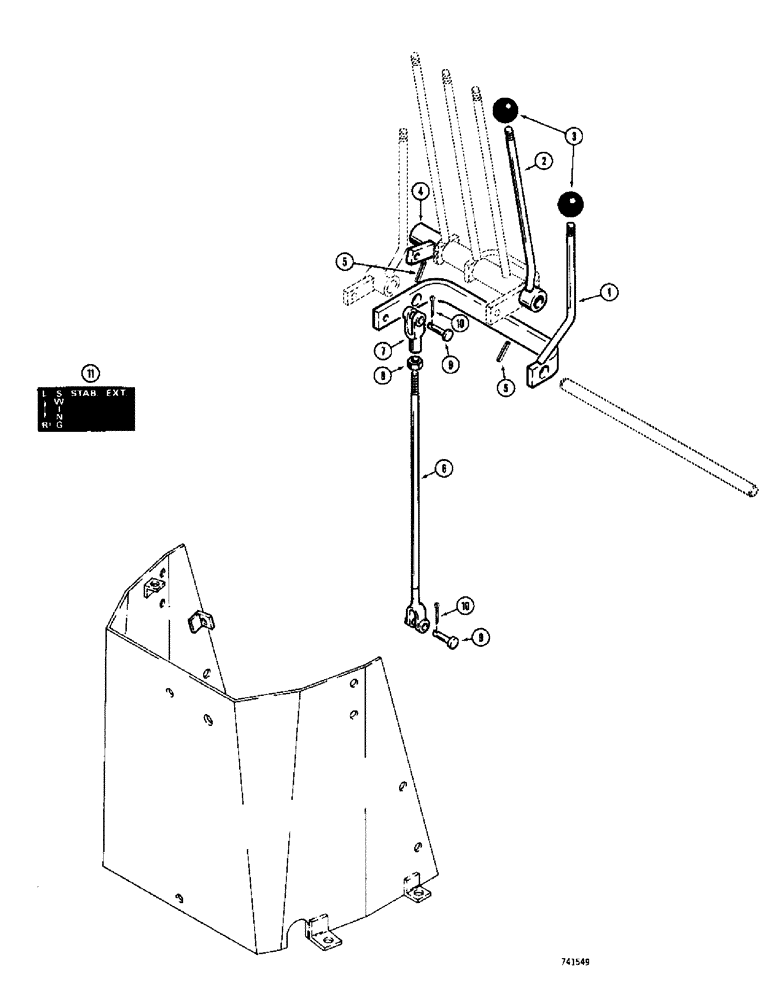

Запчасти Case 780 (494) - BACKHOE HAND SWING CONTROLS (09) - CHASSIS/ATTACHMENTS

1

D63679

HANDLE - stabilizer, R.H.

1шт.

2

D63676

HANDLE - swing control

1шт.

3

D59912

KNOB

- control handle

2шт.

4

D64422

PIVOT - handswing

1шт.

5

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

2шт.

6

D58334

ROD - control, swing

1шт.

7

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - rod end, 3/8"

1шт.

8

25-116

NUT,Hex, 3/8"-24, G5

1шт.

9

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

2шт.

10

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

11

321-2791

DECAL - optional control

1шт.
