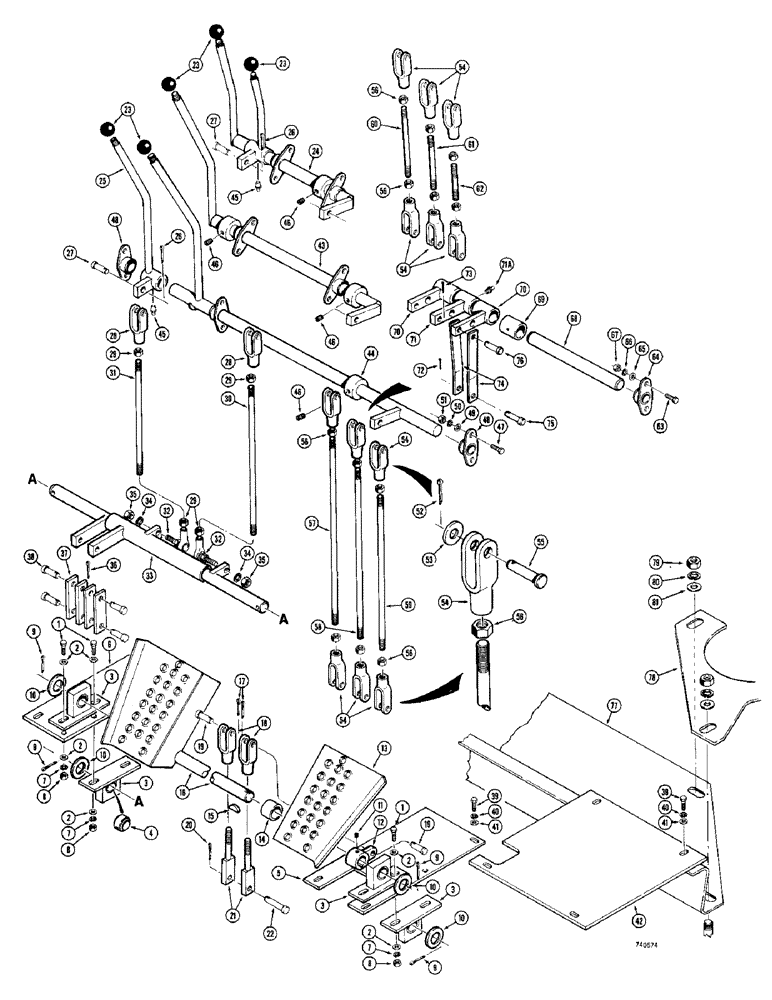

Запчасти Case 780 (482) - BACKHOE CONTROLS, BEFORE TRACTOR SN. 5500166 EXCEPT 5500155 & 5500162 (09) - CHASSIS/ATTACHMENTS

1

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8" - 16 NC x 1-1/2"

6шт.

2

95-6

WASHER,3/8"

- flat, 3/8"

12шт.

3

L45998

SUPPORT ASSEMBLY - swing pedals and stabilizer cross shaft, Includes: Ref. 4

4шт.

4

G32321

BUSHING,19.04mm ID x 31.75mm OD x 16.66mm L

BEARING - self-aligning

1шт.

5

L48398

FLOOR PLATE - console area, R.H.

1шт.

6

L48415

FLOOR PLATE - console area, L.H.

1шт.

7

92-6

LOCK WASHER,3/8"

6шт.

8

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

6шт.

9

132-49

COTTER PIN,1/8" x 1 1/8"

Pin, Split (Cotter), 1/8" x 1 1/8"

4шт.

10

195-2087

WASHER,0.81" ID x 1.12" OD x 0.15" Thk

- flat, 13/16"

4шт.

11

178-26

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

SCREW - set, hex socket head, 1/4" - 20 NC x 3/8"

1шт.

12

L46000

LEVER - swing control, L.H.

1шт.

13

L45502

SWING PEDAL - R.H., Includes: Ref. 14

1шт.

14

L18619

BUSHING - swing pedal

2шт.

15

126-13

WOODRUFF KEY,#61, 3/16" x 5/8"

1шт.

16

L45501

SWING PEDAL AND SHAFT - L.H.

1шт.

17

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

18

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - swing pedal linkage

2шт.

19

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

2шт.

20

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

21

L45496

LINK - connecting, swing pedal linkage

2шт.

22

L45503

PIN - link to valve swing section

1шт.

23

D59912

KNOB

BALL - control levers

5шт.

24

L48450

LEVER ASSEMBLY - control, R.H., stabilizer and boom

1шт.

25

L48419

LEVER - control, L.H., stabilizer

1шт.

26

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

27

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

2шт.

28

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - rod end, stabilizer linkage

2шт.

29

25-116

NUT,Hex, 3/8"-24, G5

- hex, 3/8" - 24 NF

4шт.

30

L48453

ROD - control, R.H., stabilizer

1шт.

31

L48454

ROD - control, L.H., stabilizer

1шт.

32

D40908

BALL JOINT

- rod end

2шт.

33

L43335

CROSS SHAFT - stabilizer control linkage

1шт.

34

92-6

LOCK WASHER,3/8"

2шт.

35

25-116

NUT,Hex, 3/8"-24, G5

- hex, 3/8" - 24 NF

2шт.

36

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

4шт.

37

L48452

LINK - cross shaft to valve stabilizer sections

4шт.

38

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

4шт.

39

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

8шт.

40

92-6

LOCK WASHER,3/8"

8шт.

41

95-6

WASHER,3/8"

- flat, 3/8"

8шт.

42

L48542

FLOOR PLATE - see Figure 550 for related parts

1шт.

43

L48451

LEVER ASSEMBLY - control, dipper

1шт.

44

L48443

LEVER ASSEMBLY - control, bucket

1шт.

45

219-411

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16" drive

2шт.

46

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket head, 3/8" - 16 NC x 3/8"

4шт.

47

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

48

L48412

FLANGED BEARING

SUPPORT ASSEMBLY - bearing type

2шт.

49

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

50

92-6

LOCK WASHER,3/8"

4шт.

51

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

52

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

6шт.

53

95-8

WASHER,1/2"

flat 1/2"

6шт.

54

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

YOKE - rod end

6шт.

55

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - yoke, 1/2"

6шт.

56

25-158

JAM NUT,Jam, 1/2"-20, G5

- hex, 1/2" - 20 NF

6шт.

57

L48411

ROD - boom control

1шт.

58

L48410

ROD - dipper control

1шт.

59

L54604

ROD - bucket control

1шт.

60

L48509

ROD - boom control

1шт.

61

L48510

ROD - dipper control

1шт.

62

L48511

ROD - bucket control

1шт.

63

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

64

L48412

FLANGED BEARING

SUPPORT ASSEMBLY - bearing type

2шт.

65

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

66

92-6

LOCK WASHER,3/8"

4шт.

67

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

68

L48504

SHAFT - lever pivot

1шт.

69

L48413

SPACER - pivot lever

1шт.

70

L48507

LEVER - pivot, boom and bucket linkage

2шт.

71

L48506

LEVER - pivot, dipper linkage

1шт.

71a

219-411

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16" drive

3шт.

72

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

3шт.

73

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

3шт.

74

L48508

LINK - pivot, Serial Range: lever-valve

6шт.

75

141-2

CLEVIS PIN,1/4" x .770"

PIN - link, 1/4", at valve

3шт.

76

D50559

CLEVIS,9.53mm OD x 28.32mm L

PIN - link, special, at pivot lever

3шт.

77

L46055

PLATE - cover, backhoe rear

1шт.

78

L47936

PLATE - rock guard

2шт.

79

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

80

92-6

LOCK WASHER,3/8"

4шт.

81

95-6

WASHER,3/8"

- flat, 3/8"

4шт.
