Запчасти Case 780 (480) - BACKHOE CONTROL TOWER, USED ON MODELS WITH TWIN BACKHOE CONTROL TOWER (09) - CHASSIS/ATTACHMENTS

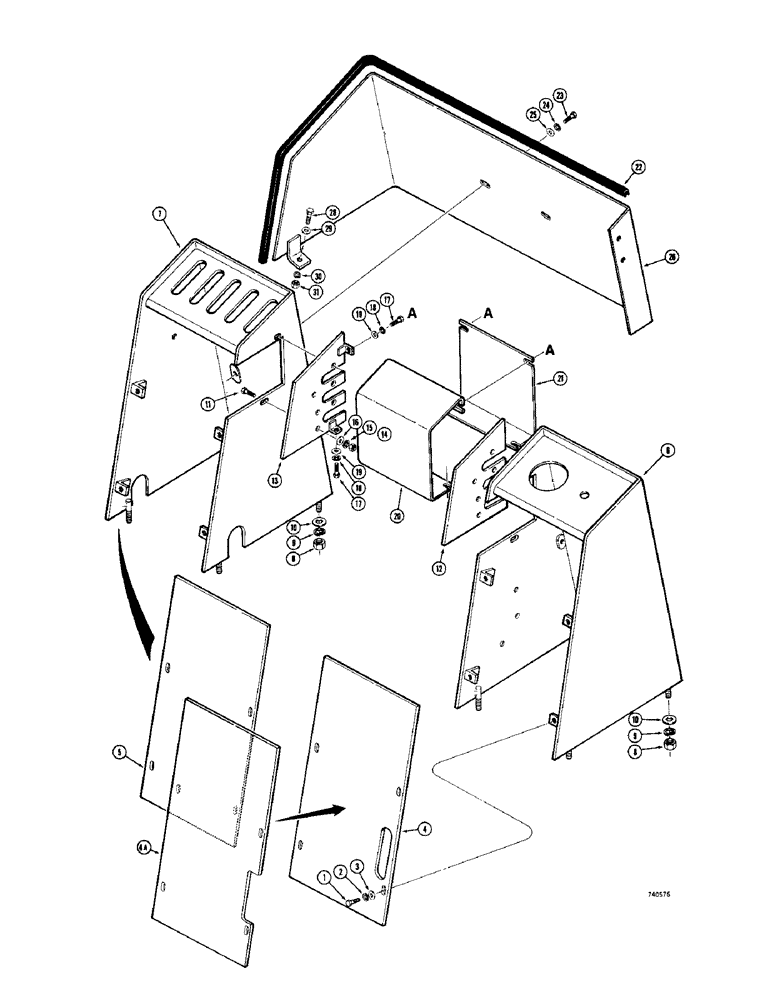

Схема запчастей Case 780 - (480) - BACKHOE CONTROL TOWER, USED ON MODELS WITH TWIN BACKHOE CONTROL TOWER (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

1

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

8шт.

2

92-5

LOCK WASHER,5/16"

8шт.

3

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

8шт.

4

L48477

COVER - access, R.H., if used

1шт.

4a

D56556

COVER

- access, R.H., if used

1шт.

5

L48476

COVER - access, L.H., console

1шт.

6

D61440

RING, SNAP

CONSOLE - backhoe control, R.H.

1шт.

7

L48434

CONSOLE - backhoe control, L.H.

1шт.

8

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

8шт.

9

92-6

LOCK WASHER,3/8"

8шт.

10

95-6

WASHER,3/8"

- flat, 3/8"

8шт.

11

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

12шт.

12

L48474

SUPPORT - control lever shafts, R.H., console

1шт.

13

L48473

SUPPORT - control lever shafts, L.H., console

1шт.

14

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

12шт.

15

92-6

LOCK WASHER,3/8"

12шт.

16

95-6

WASHER,3/8"

- flat, 3/8"

12шт.

17

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

18

92-5

LOCK WASHER,5/16"

4шт.

19

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

4шт.

20

L48563

PLATE, THRUST

COVER - access, control lever shafts, rear

1шт.

21

L48461

COVER - access, control lever shafts, front

1шт.

22

L48548

TRIM - edge guard, swing pedal guard

1шт.

23

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

24

92-6

LOCK WASHER,3/8"

2шт.

25

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

26

L42869

GUARD - swing pedals

1шт.

27

RESERVED

1шт.

28

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

29

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

30

92-6

LOCK WASHER,3/8"

1шт.

31

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

Выбрано товаров: 32
