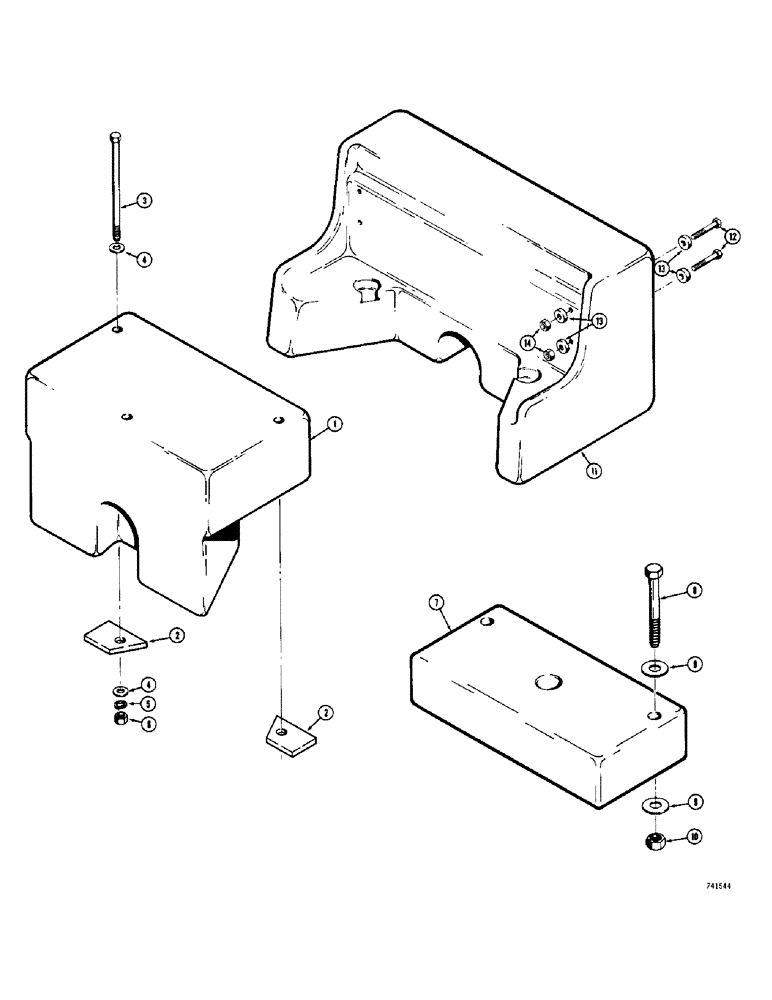

Запчасти Case 780 (474) - FRONT COUNTERWEIGHTS (09) - CHASSIS/ATTACHMENTS

1

D54364

COUNTERWEIGHT - front, 700 lbs. (318 kg), used on models with twin backhoe control towers

1шт.

2

L41459

PLATE - mounting, counterweight

2шт.

3

13-12136

BOLT,Hex, 3/4" - 10 x 8-1/2", Gr 5

- hex, 3/4" - 10 NC x 8-1/2"

2шт.

4

195-46

WASHER,3/4" x 1 3/4" x .148"

- flat, 3/4"

4шт.

5

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

6

25-1012

NUT,3/4"-10, G5

2шт.

7

L41460

WEIGHT

COUNTERWEIGHT - front, 300 lbs. (136 kg), used on models with single backhoe control tower

1шт.

8

15-12112

BOLT (SPREADER),Hex, 3/4" - 10 x 7", Gr 5

BOLT - hex, 3/4" - 10 NC x 7"

2шт.

9

195-46

WASHER,3/4" x 1 3/4" x .148"

- flat, 3/4"

4шт.

10

25-1012

NUT,3/4"-10, G5

2шт.

11

D54370

COUNTERWEIGHT - front, 690 lbs. (323 kg), optional, used in addition to 700 or 300 lbs. (318 or 136 kg) counterweights

1шт.

12

13-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- hex, 5/8" - 11 NC x 6"

4шт.

13

NLS

NO LONGER SERVICED

- special

8шт.

14

25-1010

NUT,5/8"-11, G5

If used 5/8"-11, G5

4шт.
