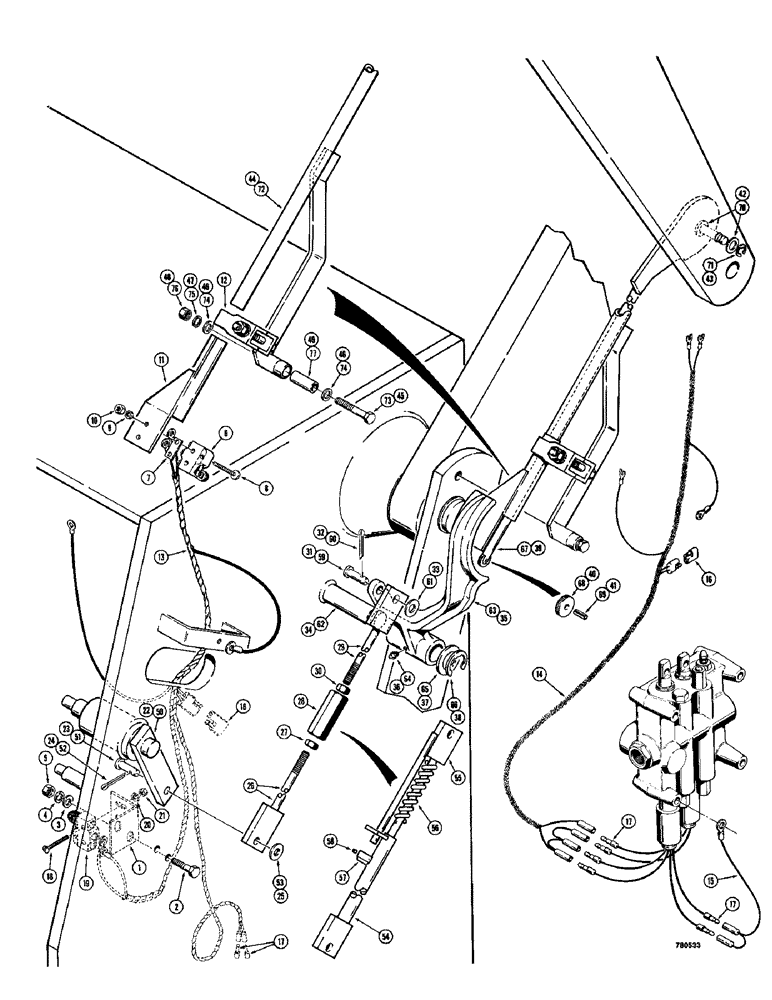

Запчасти Case 780 (470) - LOADER CONTROLS, RETURN TO DIG AND ANTI-ROLLBACK PARTS, ANTI-ROLLBACK PARTS B4 TRAC SN 5500550 (09) - CHASSIS/ATTACHMENTS

1

L40676

ANGLE - switch mounting

1шт.

2

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8" - 16 NC x 1-1/2"

2шт.

3

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

4

92-6

LOCK WASHER,3/8"

2шт.

5

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

D56384

IGNITION SWITCH

SWITCH BOX ASSEMBLY - return-to-dig, Includes: Ref. 6 - 12

1шт.

6

L54683

SWITCH

- limit

1шт.

7

D40924

SHIM

SPACER - switch, upper

1шт.

8

169-144

SCREW,Sl Fil Hd, #6 - 32 x 1 1/4"

- slotted, zinc plated, #6 - 32 NC x 1-1/4"

2шт.

9

193-89

LOCK WASHER,Ext-Int Tooth, #6

WASHER, LOCK, Ext-Int Tooth, #6

2шт.

10

129-15

NUT,#6-32

2шт.

11

NSS

NOT SOLD SEPARAT

BOX - switch

1шт.

12

G45175

CLAMP

- tube, includes hardware

1шт.

13

L46021

HARNESS - retrun-to-dig, electrical, used with L43363, D54398, L20069 and D54399 valves only

1шт.

14

D55224

HARNESS

- return-to-dig, electrical, used with dual magnetic detent valves only

1шт.

used on SN 550635.

1шт.

D55224 harness - This harness was 1st

1шт.

15

D55223

HARNESS

- ground, used with dual magnetic detent valves only

1шт.

16

L71879

DIODE ELEMENT,400V, 3A

DIODE - electrical

1шт.

17

L11778

CONNECTOR, ELEC

TERMINAL - bullet, 2 used with L43363, D54398, L20069 and D54399 valves - 6 used with dual magnetic-detent valves

2-6шт.

18

169-144

SCREW,Sl Fil Hd, #6 - 32 x 1 1/4"

- slotted, plated, #6 - 32 NC x 1-1/4"

2шт.

19

L54683

SWITCH

- limit

1шт.

20

193-89

LOCK WASHER,Ext-Int Tooth, #6

WASHER, LOCK, Ext-Int Tooth, #6

2шт.

21

129-15

NUT,#6-32

2шт.

22

L19420

LEVER - anti-rollback

1шт.

23

A12122

PIN - clevis

1шт.

24

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

25

195-33

WASHER,1/2"

- flat, 1/2"

1шт.

26

L19719

LINK - lever control, lower

1шт.

27

129-376

NUT,Jam, 1/2"-20, G5, LH

- hex, lock, 1/2" - 13 NC, L.H. thread

1шт.

28

L19419

TURNBUCKLE - link adjusting

1шт.

29

L19421

LINK - lever control, upper

1шт.

30

25-158

JAM NUT,Jam, 1/2"-20, G5

- hex, lock, 1/2" - 13 NC, R.H. thread

1шт.

31

C10821

PIN

- clevis

1шт.

32

132-69

COTTER PIN,5/32" x 1"

Pin, Split (Cotter), 5/32" x 1"

1шт.

33

195-30

WASHER

- flat, 1/2"

1шт.

34

NSS

NOT SOLD SEPARAT

SHAFT - lever, anti-rollback

1шт.

35

L47403

LEVER - anti-rollback

1шт.

36

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

37

195-553

WASHER,1", SAE

- flat, 1-1/16"

1шт.

38

B18208

SNAP RING,#100, Ext

1шт.

39

L19250

ROD

- anti-rollback, order (1) D54757 rod assembly and (1) D95095 klip ring

1шт.

40

L19090

ROLLER

- rod

1шт.

41

138-128

LOCK PIN,1/4" x 5/8", Slotted

PIN, 1/4" x 5/8", Slotted

1шт.

42

195-41

WASHER,5/8"

- flat, 1/2"

2шт.

43

D95096

SNAP RING,M15.88 x 1.27mm Thk

- retaining

1шт.

44

L19249

TUBE - anti-rollback rod

1шт.

45

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

46

195-25

WASHER,3/8"

- flat, 3/8"

2шт.

47

92-6

LOCK WASHER,3/8"

1шт.

48

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

49

L40674

SLEEVE - tube

1шт.

50

L19420

LEVER - anti-rollback

1шт.

51

A12122

PIN - clevis

1шт.

52

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

53

195-33

WASHER,1/2"

- flat, 1/2"

1шт.

54

D56782

LINK - control, lower

1шт.

55

D56785

LINK - control, upper

1шт.

56

D56786

SPRING - compression

1шт.

57

A20846

COLLAR

- retaining

1шт.

58

84-44

SET SCREW,Hex Soc, 1/4"-28 x 1/4"

SCREW - set, hex socket head, 1/4" - 28 NF x 1/4"

1шт.

59

C10821

PIN

- clevis

1шт.

60

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

61

195-33

WASHER,1/2"

- flat, 1/2"

1шт.

62

NSS

NOT SOLD SEPARAT

SHAFT - lever, anti-rollback

1шт.

63

D56118

LEVER - anti-rollback

1шт.

64

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

65

195-553

WASHER,1", SAE

- flat, 1-1/16"

1шт.

66

B18208

SNAP RING,#100, Ext

1шт.

67

D56024

ROD - anti-rollback

1шт.

68

L19090

ROLLER

- rod

1шт.

69

138-128

LOCK PIN,1/4" x 5/8", Slotted

PIN, 1/4" x 5/8", Slotted

1шт.

70

195-41

WASHER,5/8"

- flat, 1/2"

2шт.

71

D95096

SNAP RING,M15.88 x 1.27mm Thk

- retaining

1шт.

72

D56027

TUBE - anti-rollback rod

1шт.

73

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

74

195-25

WASHER,3/8"

- flat, 3/8"

2шт.

75

92-6

LOCK WASHER,3/8"

1шт.

76

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

77

L40674

SLEEVE - tube

1шт.
