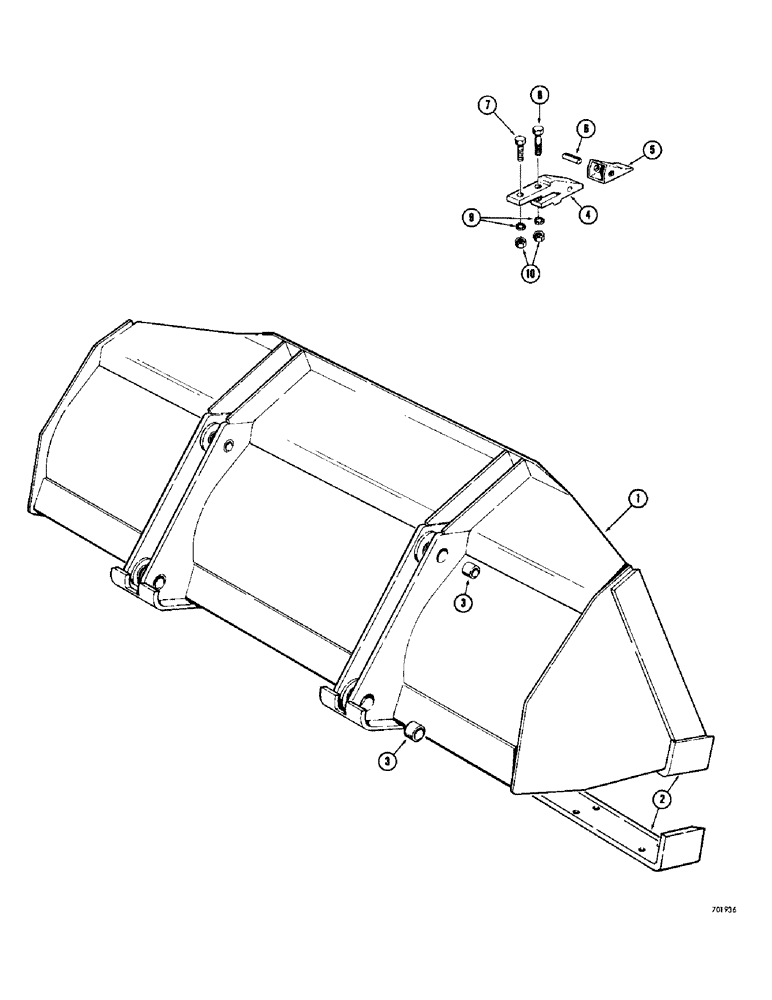

Запчасти Case 780 (460) - LOADER BUCKETS, 1-3/4" CU. YD. (1.3 CU. METRE) LOADER BUCKET (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
L41615
BUCKET - loader, 93 1/2''(2413 mm) wide, machinery item - see Figure 2 for ordering, Includes: Ref. 2 and 3
1шт.
2
EDGE
CUTTING - bucket, 95" (2413 mm) wide, 95" (including 3/4" thickness of edge which wraps around side of bucket).
1шт.
L18756 cutting edge - Overall length is
1шт.
3
D31142
BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L
bucket ear
8шт.
1
D59017
BUCKET - loader, 93 1/2''(2413 mm) wide option for extendahoe, machinery item - see Figure 2 for ordering, 1-3/4" CU. YD. (1.3 CU. METRE), Includes: Ref. 2 and 3
1шт.
2
EDGE
CUTTING - bucket, 95" (2413 mm) wide, 1-3/4" CU. YD. (1.3 cu. METRE), loader bucket for extendahoe
1шт.
3
D31142
BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L
bucket ear, 1-3/4" CU. YD. (1.3 CU. METRE), loader for extendahoe
8шт.
1
L44114
BUCKET - loader, 93-1/2" (2375 mm) wide, machinery item - see Figure 2 for ordering, Includes: Ref. 2 and 3
1шт.
3
D31142
BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L
bucket ear, 2-1/4: CU. YD. (1.7 CU. METRE), loader
8шт.
L16678
TOOTH
ASSEMBLY - bucket, 2-1/4: CU. YD. (1.7 CU. METRE), loader, Includes: Ref. 4 - 6
9шт.
4
NSS
NOT SOLD SEPARAT
SHANK - bucket teeth - optional on L41615 and D59017 only
1шт.
5
D39093
TOOTH
POINT - bucket - optional on L41615 and D59017 only
1шт.
6
D39094
BUCKET TOOTH KEY
FLEX PIN - point, optional on L41615 and D59017 only
1шт.
7
13-1036
BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5
Bucket teeth - optional on L41615 and D59017 only Hex, 5/8"-11 x 2 1/4", G5
9шт.
8
13-1048
BOLT,Hex, 5/8" - 11 x 3", Gr 5
Bucket teeth - optional on L41615 and D59017 only Hex, 5/8"-11 x 3", G5
9шт.
9
LOCK WASHER,5/8"
WASHER, LOCK, , Bucket teeth - optional on L41615 and D59017 only 5/8"
8шт.
10
25-1010
NUT,5/8"-11, G5
Bucket teeth - optional on L41615 and D59017 only 5/8"-11, G5
8шт.
Выбрано товаров: 18
