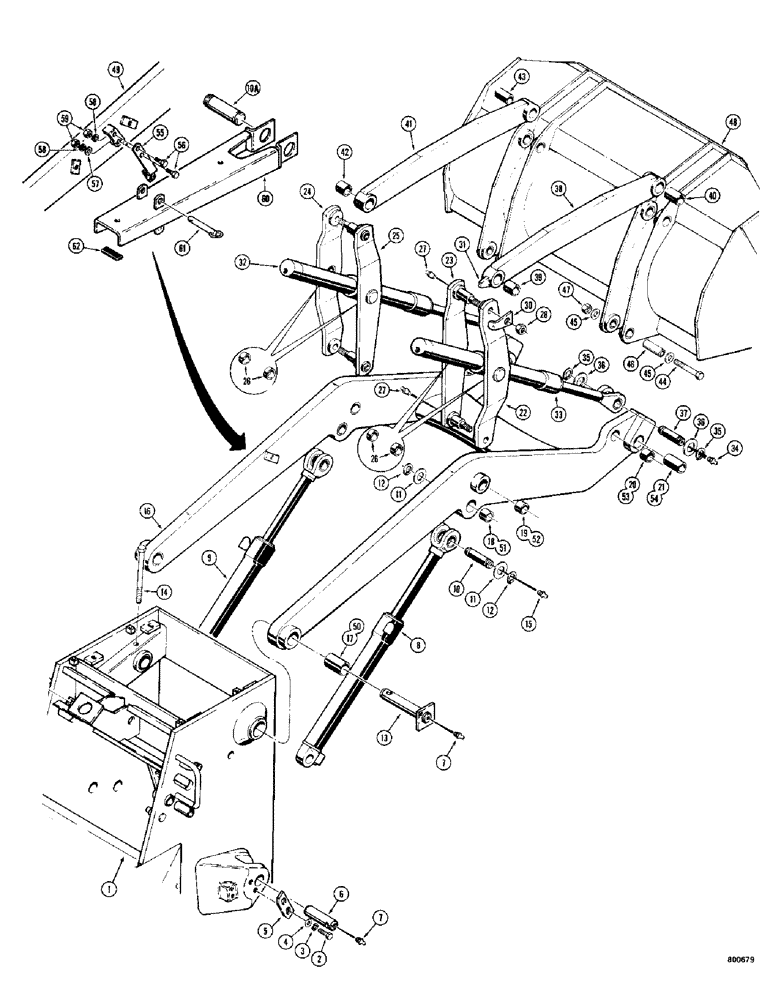

Запчасти Case 780 (456) - LOADER LIFT FRAME AND RELATED PARTS, TRACTOR SN. 5500550 AND AFT (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CHASSIS ASSEMBLY - tractor, see Figure 562 for chassis and related parts

1шт.

2

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

4шт.

3

92-10

LOCK WASHER,5/8"

4шт.

4

195-41

WASHER,5/8"

4шт.

5

D56019

SPARE PART PLATE - pin retainer

2шт.

6

D40028

PIN

Pivot, lift cylinder at chassis

2шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Straight, 1/8" NPT

4шт.

8

REF

INSTRUCTION

CYLINDER - lift, RH, parts list Figure 402 or 404

1шт.

9

REF

INSTRUCTION

CYLINDER - lift, LH, parts list Figure 402 or 404

1шт.

10

D40041

PIN

Pivot, lift cylinder at frame, use (2) without safety strut, use (1) with safety strut

1-2шт.

10a

D33637

PIN

LH pivot lift cylinder at frame, use with safety strut

1шт.

11

195-2155

WASHER,2 1/16" x 3" x .109"

4шт.

12

D26919

SNAP RING,#200, Ext

Pin

4шт.

13

D56016

SPARE PART Pivot, lift arm

2шт.

14

26-12144

BOLT,Hex, 3/4" - 10 x 9", Gr 8

2шт.

15

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Straight, 1/8" NPT

2шт.

16

D55995

SPARE PART Loader lift, use before tractor S/N 5502461, Includes: Ref. 17 - 21

1шт.

17

D41383

BUSHING

At chassis

2шт.

18

D40050

BUSHING,51.03mm ID x 60.33mm OD x 50.8mm L

At lift cylinder

2шт.

19

D43508

BUSHING

At tilt linkage

4шт.

20

D30741

BUSHING,38.33mm ID x 47.63mm OD x 50.8mm L

At tilt cylinder

2шт.

21

D33627

BUSHING

At bucket

2шт.

22

D56020

SPARE PART Tilt, RH outer, Includes: Ref. 26

1шт.

23

D47990

LINK

Tilt, RH inner, Includes: Ref. 26

1шт.

24

D47989

LINK

Tilt, LH outer, Includes: Ref. 26

1шт.

25

D47991

LINK

Tilt, LH inner, Includes: Ref. 26

1шт.

26

D31512

BUSHING,47.75mm ID x 57.15mm OD x 19.05mm L

Link, D56020, D47990, D47989 and D47991 links

1шт.

27

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Straight, 1/8" NPT

4шт.

28

25-1016

NUT,1"-8, G5

4шт.

29

RESERVED

1шт.

30

D62484

GAUGE

LEVELING - bucket, tilt link

1шт.

31

NSS

NOT SOLD SEPARAT

LEVELING GAUGE - bucket, tilt arm

1шт.

32

REF

INSTRUCTION

CYLINDER - bucket tilt, LH, see Figures 394 - 400 for proper cylinder

1шт.

33

REF

INSTRUCTION

CYLINDER - bucket tilt, RH, see Figures 394 - 400 for proper cylinder

1шт.

34

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Straight, 1/8" NPT

2шт.

35

D25279

SNAP RING,M35, Int

Pin retaining

4шт.

36

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

Special

4шт.

37

D40037

PIN,38.1mm OD x 127mm L

Tilt cylinder to lift frame

2шт.

38

D56769

LINK

ARM - tilt, RH, Includes: Ref. 39 and 40

1шт.

39

D33023

BUSHING,51.02mm ID x 63.5mm OD x 50.8mm L

Arm, at tilt link, 2" (51 mm) long

1шт.

40

D33627

BUSHING

Arm, at bucket, 3-1/4" (83 mm) long

1шт.

41

D47865

POWER ARM

Tilt, LH, Includes: Ref. 42 and 43

1шт.

42

D33023

BUSHING,51.02mm ID x 63.5mm OD x 50.8mm L

Arm, at tilt link, 2" (51 mm) long

1шт.

43

D33627

BUSHING

Arm, at bucket, 3-1/4" (83 mm) long

1шт.

44

13-12140

BOLT,Hex, 3/4" - 10 x 8-3/4", Gr 5

4шт.

45

72915

GASKET

Special

8шт.

46

R19659

PIN

Bucket, order (1) R27061 pin and (2) D26919 snap rings

4шт.

47

230-41112

LOCK NUT,3/4"-10, GA

4шт.

48

REF

INSTRUCTION

BUCKET - loader, see Figure 460 for options

1шт.

49

D89806

SPARE PART FRAME - loader lift, used on tractor S/N 5502461and after, Includes: Ref. 50 - 54

1шт.

50

D41383

BUSHING

At chassis

2шт.

51

D40050

BUSHING,51.03mm ID x 60.33mm OD x 50.8mm L

At lift cylinder

2шт.

52

D43508

BUSHING

At tilt linkage

4шт.

53

D30741

BUSHING,38.33mm ID x 47.63mm OD x 50.8mm L

At tilt cylinder

2шт.

54

D33627

BUSHING

At bucket

2шт.

55

D84075

SPARE PART Strut latch, use with D89806

1шт.

56

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Use with D89806

2шт.

57

195-21

WASHER,5/16"

Use with D89806

1шт.

58

92-5

LOCK WASHER,5/16"

Use with D89806

2шт.

59

9635082

NUT,5/16" - 18, Gr 5

Use with D89806

2шт.

60

D80288

SPARE PART Loader safety, use with D89806

1шт.

61

L78801

AXLE PIN

Safety strut, use with D89806

1шт.

62

D89691

STRIP

Safety strut, use with D89806

2шт.
