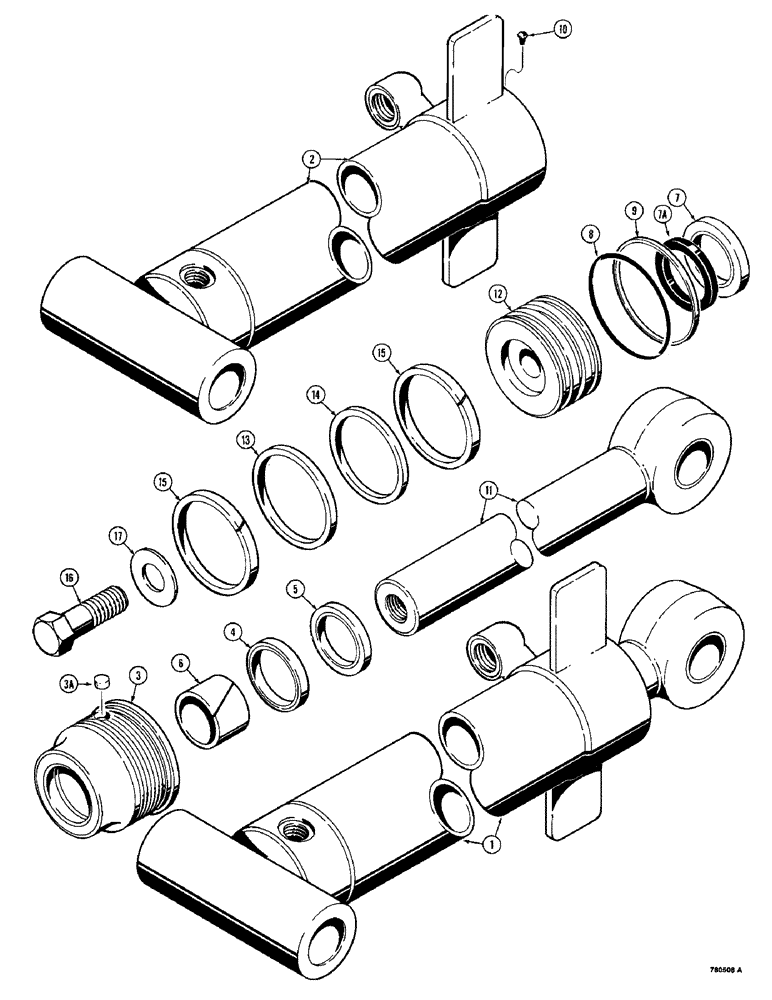

Запчасти Case 780 (450) - G101263 BACKHOE DIPPER EXTENSION CYLINDER, WITH ONE PIECE PISTON (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
G101263
BOOM
CYLINDER - dipper extenson, 4" (102 mm) x 48-5/8" (1235 mm) stroke, Includes: Ref. 2 - 17
1шт.
2
G34236
TUBE
- cylinder
1шт.
G104941
GLAND
ASSEMBLY - cylinder, Includes: Ref. 3 - 9
1шт.
3
NSS
NOT SOLD SEPARAT
GLAND - cylinder
1шт.
3a
G102569
PLUG
- nylon, thread locking, gland, if used
1шт.
4
NSS
NOT SOLD SEPARAT
RING - retaining
1шт.
5
D95145
WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W
WIPER - piston rod
1шт.
Part of seal kit P/N G105556
1шт.
6
G102426
BUSHING,57.15mm ID x 60.22mm OD x 37.85mm L
BEARING - Center
1шт.
Part of seal kit P/N G105556
1шт.
7
G107924
SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk
SEAL - piston rod, see G100779 for option
1шт.
Part of seal kit P/N G105556
1шт.
Part of Piston Rod Seal, P/N G100779
1шт.
7a
G103447
RING
SEAL - piston rod narrow, used in addition to Ref. 7 in some glands
1шт.
Part of seal kit P/N G105556
1шт.
8
A27507
O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro
- gland
1шт.
Part of seal kit P/N G105556
1шт.
9
G32176
BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk
1шт.
Part of seal kit P/N G105556
1шт.
10
187-1031
SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"
SCREW - self-tapping, no. 8-32 NC x 1/4", if used
1шт.
11
G34241
ROD - piston, 2-1/4" (57 mm) dia.
1шт.
12
G100686
PISTON
- cylinder
1шт.
13
G102285
SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk
- piston
1шт.
Part of seal kit P/N G105556
1шт.
14
G100440
RING,Square, 5.28mm Thk x 88.01mm ID
- backup
1шт.
Part of seal kit P/N G105556
1шт.
15
G100448
RING,101.6mm OD, Ext
- wear
2шт.
Part of seal kit P/N G105556
1шт.
16
28-2048
BOLT,Hex, 1-1/4" - 12 x 3", Gr 8
1шт.
17
G32351
WASHER
- hardened
1шт.
G105556
SEAL
KIT - seal, Includes Refs. 5, 6, 7, 7A, 8, 9, 13, 14 and 15 same as G102412 kit plus Ref. 7A
1шт.
G100779
SEAL
- piston rod, service option - extreme heat or cold, Includes: Ref. 7
1шт.
