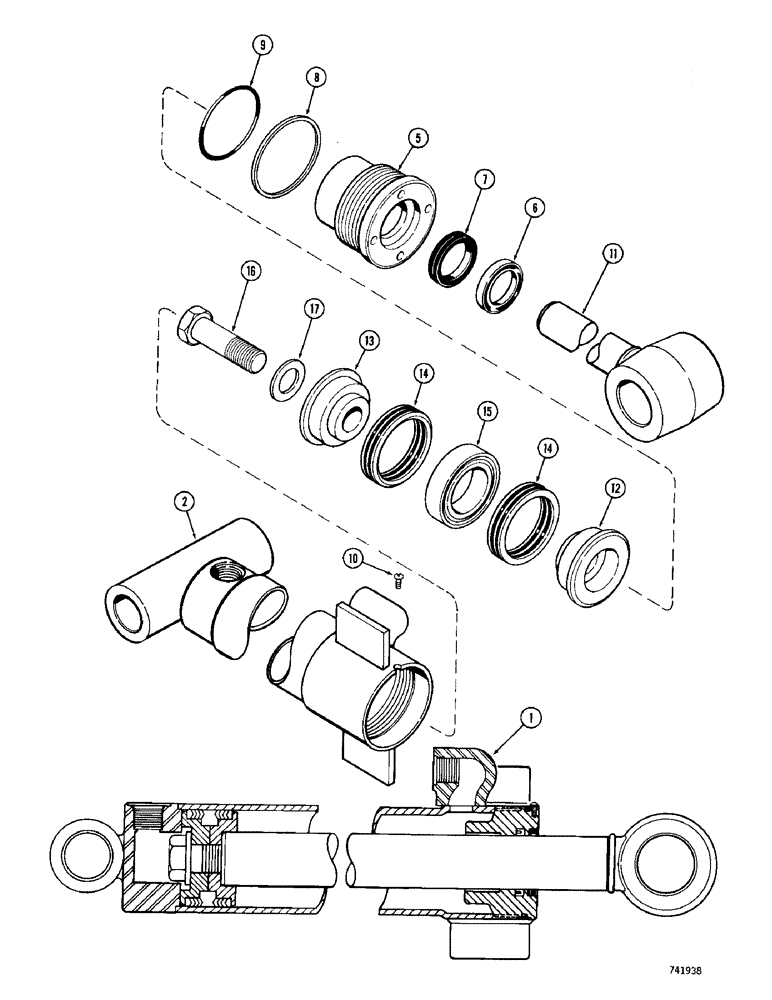

Запчасти Case 780 (448) - G34235 DIPPER EXTENSION CYLINDER, GLAND HAS NO I.D. MARKS (08) - HYDRAULICS

1

G34235

CYLINDER

ASSEMBLY - dipper extension, 4" (102 mm) I.D. x 48-5/8" (1235 mm) stroke, Includes: Ref. 2 - 17

1шт.

2

G34236

TUBE

ASSEMBLY - cylinder

1шт.

3

RESERVED

1шт.

4

RESERVED

1шт.

G32799

GLAND

ASSEMBLY - cylinder, order G34635, Includes: Ref. 5 - 9

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

6

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod, outer

1шт.

Part of Cylinder Repair Seal Kit, P/N G105556

1шт.

7

D39359

RUBBER SEAL

SEAL - piston rod, see G100779 for option

1шт.

Part of Piston Rod Seal, P/N G100779

1шт.

Part of Cylinder Repair Seal Kit, P/N G105556

1шт.

8

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

- Gland "O" Ring

1шт.

Part of Cylinder Repair Seal Kit, P/N G105556

1шт.

9

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- gland

1шт.

Part of Cylinder Repair Seal Kit, P/N G105556

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8-32 NC x 1/4"

1шт.

11

G34241

ROD - piston, 2-1/4" (57 mm) dia.

1шт.

12

D49168

PISTON

- split, rod end

1шт.

13

D46930

PISTON

- split, bolt end

1шт.

14

D47204

PACKING,89.15mm ID x 100.86mm OD

ASSEMBLY - piston, "V" type

2шт.

Part of Cylinder Repair Seal Kit, P/N G105556

1шт.

15

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

RING - center bearing

1шт.

16

28-2048

BOLT,Hex, 1-1/4" - 12 x 3", Gr 8

1шт.

17

G32351

WASHER

- hardened

1шт.

G105556

SEAL

KIT - cylinder repair, Includes Refs. 6, 7, 8, 9 and 14 plus Ref. 7A on Figure 450

1шт.

Seal kit for cyl with 2 piece pistion is G34636

1шт.

G100779

SEAL

- piston rod, service option - extreme heat or cold, Includes: Ref. 7

1шт.
