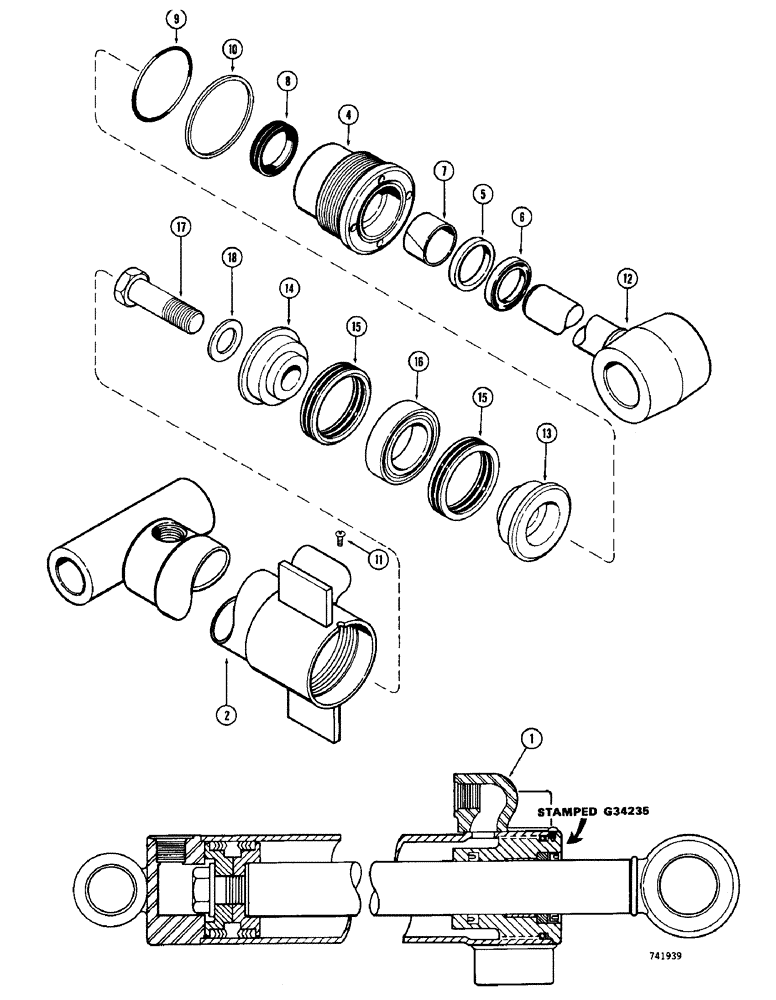

Запчасти Case 780 (446) - G34235 BACKHOE DIPPER EXTENSION CYLINDER, GLAND IS STAMPED W/ CYLINDER PN (08) - HYDRAULICS

1

G34235

CYLINDER

ASSEMBLY - dipper extension, 4" (102 mm) I.D. x 48-5/8" (1235 mm) stroke, Includes: Ref. 2 - 18

1шт.

2

G34236

TUBE

ASSEMBLY - cylinder body

1шт.

3

RESERVED

1шт.

G34635

GLAND

ASSEMBLY - cylinder, Includes: Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

6

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod

1шт.

Part of Cylinder Repair Seal Kit, P/N G105556

1шт.

7

G102426

BUSHING,57.15mm ID x 60.22mm OD x 37.85mm L

BEARING - Center

1шт.

Part of Cylinder Repair Seal Kit, P/N G105556

1шт.

8

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

SEAL - piston rod, see G100779 for option

1шт.

Part of Cylinder Repair Seal Kit, P/N G105556

1шт.

9

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL - gland

1шт.

Part of Piston Rod Seal, P/N G100779

1шт.

Part of Cylinder Repair Seal Kit, P/N G105556

1шт.

10

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

Part of Cylinder Repair Seal Kit, P/N G105556

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8-32 NF x 1/4"

1шт.

12

G34241

ROD - piston, 2-1/4" (57 mm) dia.

1шт.

13

D49168

PISTON

- split, rod end

1шт.

14

D46930

PISTON

- split, bolt end

1шт.

15

D47204

PACKING,89.15mm ID x 100.86mm OD

ASSEMBLY - piston, "V" type

2шт.

Part of Cylinder Repair Seal Kit, P/N G105556

1шт.

16

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

RING - center bearing

1шт.

17

28-2048

BOLT,Hex, 1-1/4" - 12 x 3", Gr 8

1шт.

18

G32351

WASHER

- hardened

1шт.

G105556

SEAL

KIT - cylinder repair, Includes: Ref. 6, 7, 8, 9, 10, and 15, plus Ref. 7A on Figure 450

1шт.

G100779

SEAL

- piston rod, service option - extreme heat or cold, Includes: Ref. 8

1шт.
