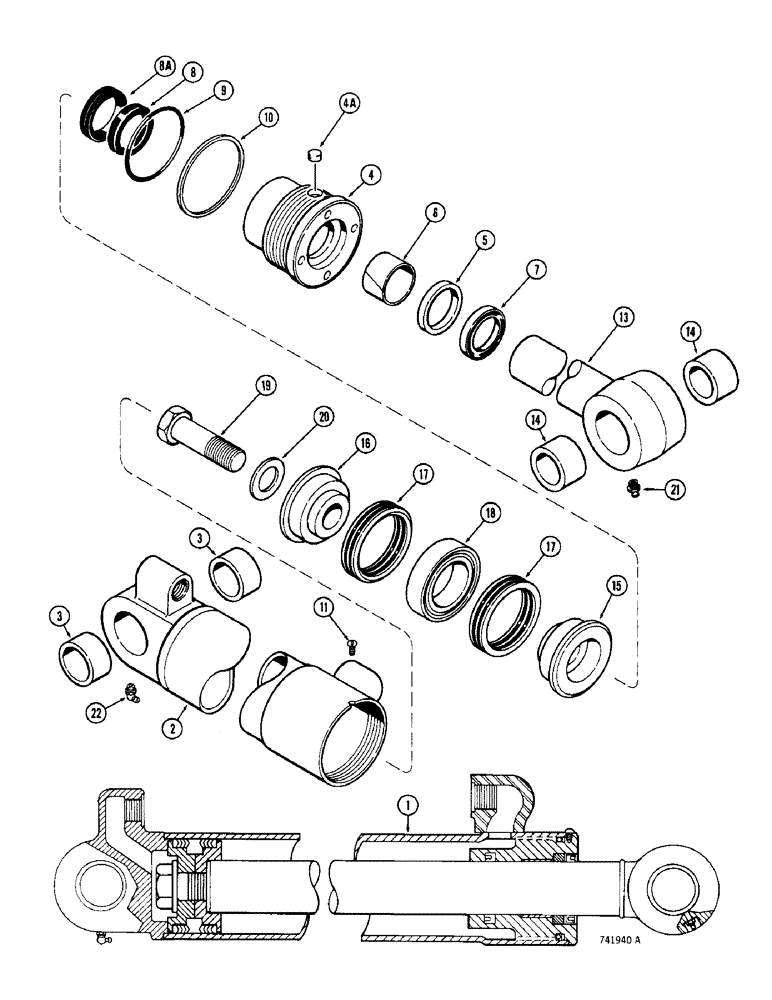

Запчасти Case 780 (444) - G34755 BACKHOE BUCKET CYLINDER, GLAND IS STAMPED WITH CYLINDER PN USED ON TRAC SN 5500550 (08) - HYDRAULICS

1

G34755

CYLINDER

ASSEMBLY - bucket, 5" (127 mm) I.D. x 36-3/4" (933 mm) stroke, Includes: Ref. 2 - 22

1шт.

2

G34756

TUBE

ASSEMBLY - cylinder, Includes: Ref. 3

1шт.

3

D52579

BUSHING,57.38mm ID x 69.85mm OD x 28.57mm L

- tube

2шт.

G104324

GLAND

ASSEMBLY - cylinder, Includes: Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4a

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

5

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

6

G102429

BUSHING,76.2mm ID x 79.27mm OD x 37.85mm L

BEARING - center

1шт.

Part of Cylinder Repair Seal Kit, P/N G105531

1шт.

7

D95148

WIPER SEAL

WIPER - piston rod

1шт.

Part of Cylinder Repair Seal Kit, P/N G105531

1шт.

8

D45572

ROD

SEAL - piston rod, see G100782 for option

1шт.

Part of Cylinder Repair Seal Kit, P/N G105531

1шт.

Part of Piston Rod Seal, P/N G100782

1шт.

8a

G104884

SEAL

- piston rod, narrow, used in addition to Ref. 8 in some glands

1шт.

Part of Cylinder Repair Seal Kit, P/N G105531

1шт.

9

NLS

NO LONGER SERVICED

- gland

1шт.

Part of Cylinder Repair Seal Kit, P/N G105531

1шт.

10

S92639

RING

- backup

1шт.

Part of Cylinder Repair Seal Kit, P/N G105531

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4", if used

1шт.

12

RESERVED

1шт.

13

G34026

ROD ASSEMBLY - piston, 3" (76 mm) dia., Includes: Ref. 14

1шт.

14

D52580

BUSHING

- piston rod

2шт.

15

G32663

SPARE PART

PISTON - split, rod end

1шт.

16

D49335

PISTON

- split, bolt end

1шт.

17

D47206

PACKING

ASSEMBLY - piston, "V" type

2шт.

Part of Cylinder Repair Seal Kit, P/N G105531

1шт.

18

D47211

BEARING WASHER,95.28mm ID x 126.69mm OD x 19mm Thk

RING - center bearing

1шт.

19

28-2456

BOLT,Hex, 1-1/2" - 12 x 3-1/2", Gr 8

- hex, 1-1/2" - 12 NF x 3-1/2", grade 8

1шт.

20

G32666

WASHER

- hardened

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

22

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

G105531

SEAL

KIT - cylinder repair, Includes Refs. 6, 7, 8, 8A, 9, 10 and 17 same as G34753 kit plus Ref. 8A

1шт.

G100782

SEAL

- piston rod, service option - extreme heat or cold, Includes: Ref. 8

1шт.
