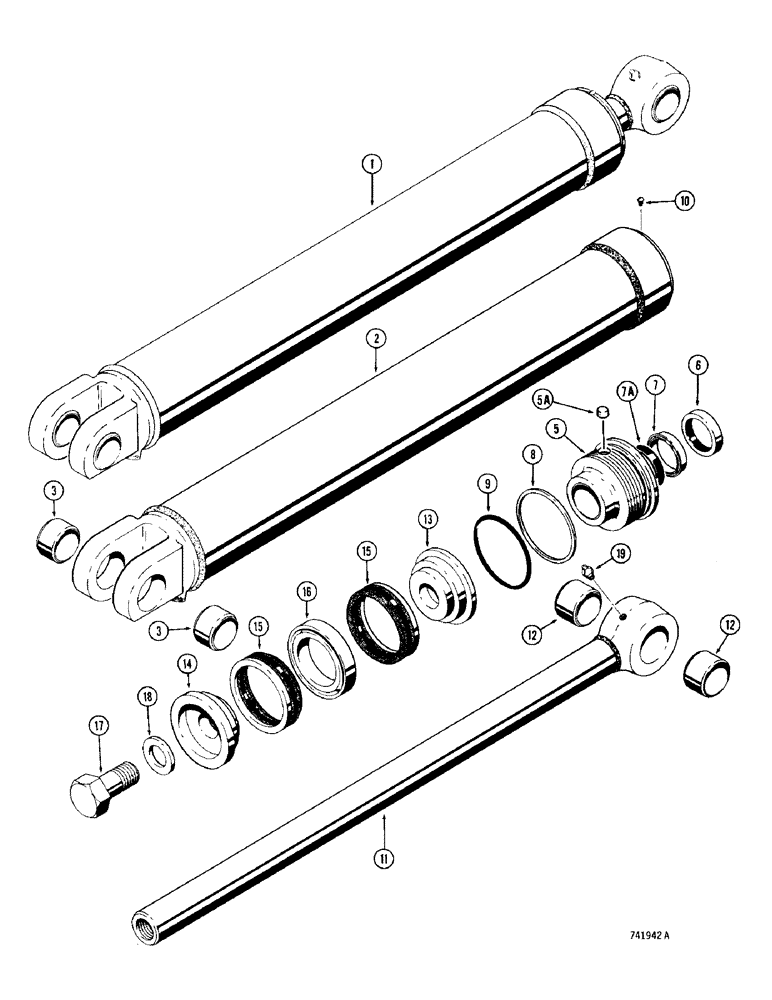

Запчасти Case 780 (438) - G32757 BACKHOE DIPPER CYLINDER, GLAND HAS NO IDENTIFICATION MARKS (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
G32757
CYLINDER ASSEMBLY - dipper, 6" (152 mm) I.D. x 43-5/8" (1108 mm) stroke, Includes: Ref. 2 - 19
1шт.
2
G32758
TUBE ASSEMBLY - cylinder, Includes: Ref. 3 and 4 54.87" L
1шт.
3
D51545
BUSHING,63.75mm ID x 76.2mm OD x 38.1mm L
- tube
2шт.
4
RESERVED
1шт.
G104356
GLAND
ASSEMBLY - cylinder, order G34568, Includes: Ref. 5 - 9
1шт.
5
NSS
NOT SOLD SEPARAT
GLAND - cylinder
1шт.
5a
G102569
PLUG
- nylon, thread locking, gland, if used
1шт.
6
D102569
KIT
WIPER - piston rod, outer
1шт.
Part of Cylinder Repair Seal Kit, P/N G105516
1шт.
7
D45572
ROD
SEAL - piston rod, see G100782 for option
1шт.
Part of Cylinder Repair Seal Kit, P/N G105516
1шт.
Part of Piston Rod Seal, P/N G100782
1шт.
7a
G104884
SEAL
- piston rod, narrow, used in addition to Ref. 7 in some glands
1шт.
Part of Cylinder Repair Seal Kit, P/N G105516
1шт.
8
G32649
WASHER
RING - backup
1шт.
Part of Cylinder Repair Seal Kit, P/N G105516
1шт.
9
A28239
O-RING,0.139" Thk x 5.984" ID, -258, Cl 5, 75 Duro
- gland
1шт.
Part of Cylinder Repair Seal Kit, P/N G105516
1шт.
10
187-1031
SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"
SCREW - self-tapping, no. 8-32 NC x 1/4", if used
1шт.
11
G32638
ROD ASSEMBLY - piston, 3" (76 mm) dia., Includes: Ref. 12
1шт.
12
D51545
BUSHING,63.75mm ID x 76.2mm OD x 38.1mm L
- piston rod
2шт.
13
G32651
PISTON
- split, rod end
1шт.
14
G32652
PISTON
- split, bolt end
1шт.
15
D49321
PACKING
ASSEMBLY - piston, "V" type
2шт.
Part of Cylinder Repair Seal Kit, P/N G105516
1шт.
17
28-3264
BOLT,Hex, 2" - 12 x 4", Gr 8
- hex, 2" - 12 NF x 4", grade 8
1шт.
18
G32653
WASHER
- hardened
1шт.
19
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight, 1/8" NPT
1шт.
G105516
GASKET KIT
SEAL KIT - cylinder repair, Includes Refs. 6, 7, 7A, 8, 9 and 15 same as G34569 kit plus Ref. 7A
1шт.
G100782
SEAL
- piston rod, service option - extreme heat or cold, Includes: Ref. 9
1шт.
Выбрано товаров: 30
